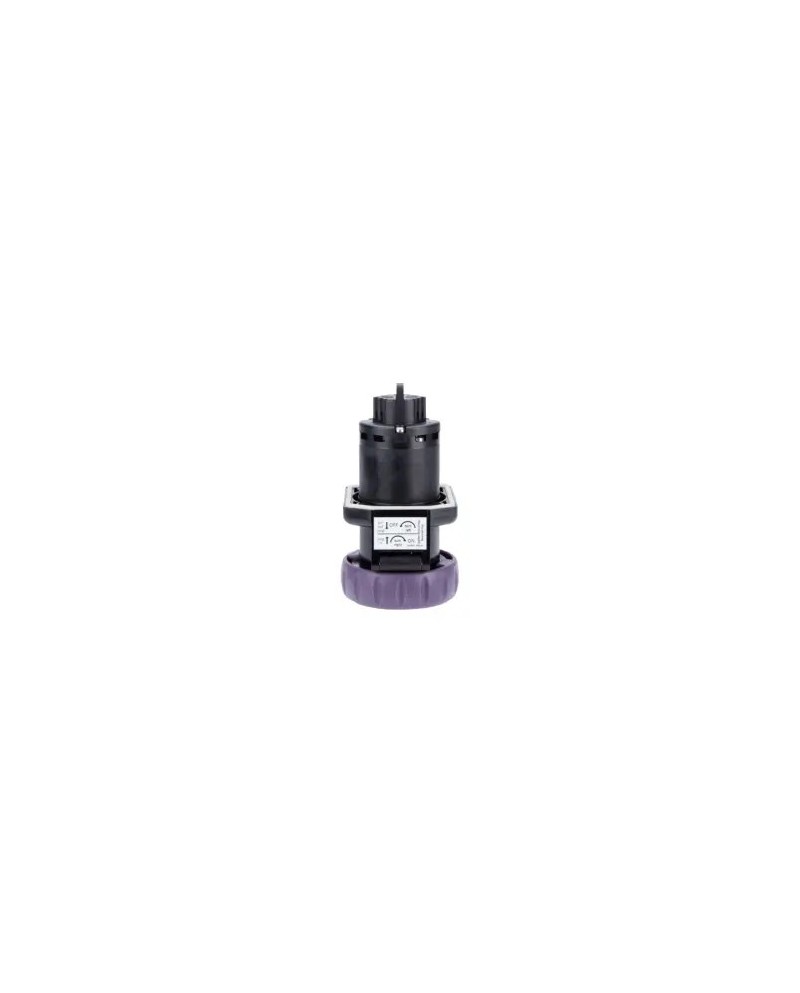

Very low voltage flange socket 16 A series 8573/15
- IP66
- Ambient temperature: -50 ° C to + 40 ° C
- Zones 1, 2, 21, 22,
- full switching power AC-3 according to IEC / EN 60947- 3
- contacts without wear and protected against corrosion even in an aggressive atmosphere
- Ambient temperature: -50 ° C to + 40 ° C
- Zones 1, 2, 21, 22,
- full switching power AC-3 according to IEC / EN 60947- 3
- contacts without wear and protected against corrosion even in an aggressive atmosphere
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The R. Stahl 8573/15 series 16 has the 8573/15 series of 8573/15 series up to 50 V voltages. The self-cleaning lamellating contacts ensure optimum electrical contact. The rotary switching mechanism and the integrated locking device reliably prevent a disconnection under load.
References Manufacturer: 241379,241387,241386,241373,241378
| Ambiant temperature | -50°C to +40°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 16 ATEX 1018 U |
| Certificat_iecex-en_us | IECEX PTB 16.0030U |
| Body colors | Black |
