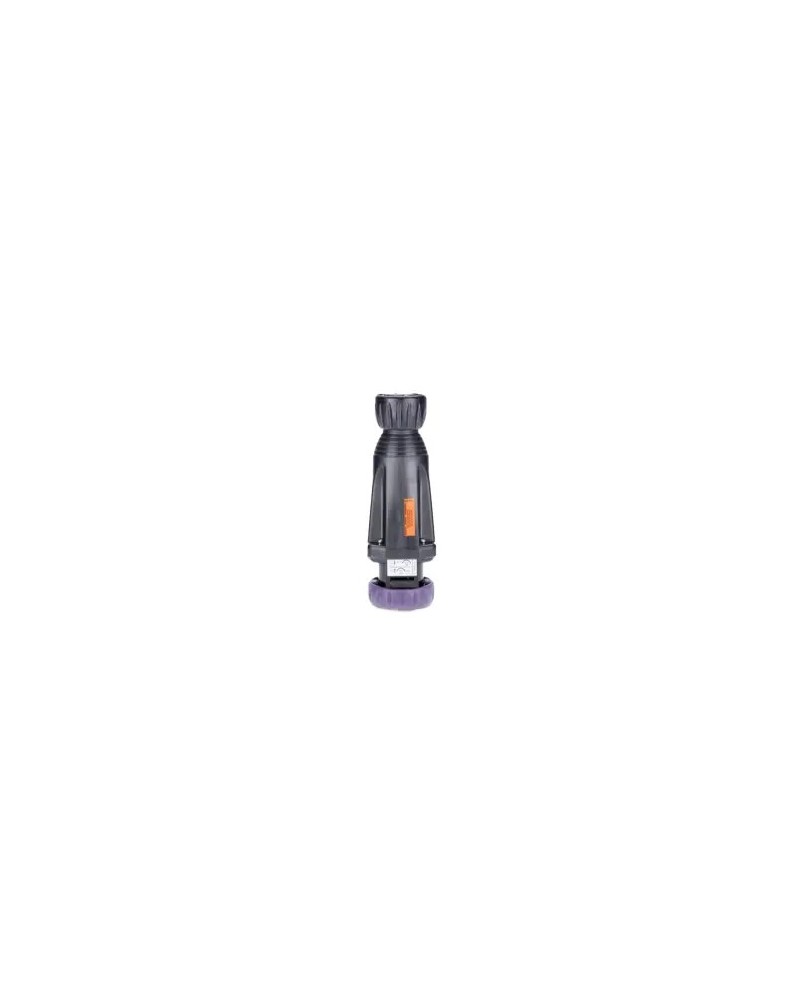

Very low voltage extension 16 a 8573/14 series series
- IP66
- Ambient temperature: -50 ° C to + 60 ° C
- Zones: 1,2,21,22
- Very low voltage
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
- Ambient temperature: -50 ° C to + 60 ° C
- Zones: 1,2,21,22
- Very low voltage
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The extensions of R. Stahl's new 8573/14 series are for 2 or 3-pole applications up to 16 A for very low voltages up to 50 V. Robust and chemical-resistant plastic promotes compact construction. Self-cleaning blade contacts ensure optimum electrical contact. The rotary switching mechanism and the integrated locking device reliably prevent the drawing of the load plugs.
References Manufacturer: 243182,243188,243187,243175,243180
| Ambiant temperature | -50 ° C to 60 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 16 ATEX 1017 |
| Certificat_iecex-en_us | IECEX PTB 16.0029 |
| Body colors | Black |
| Electrical intensity | 25a |
