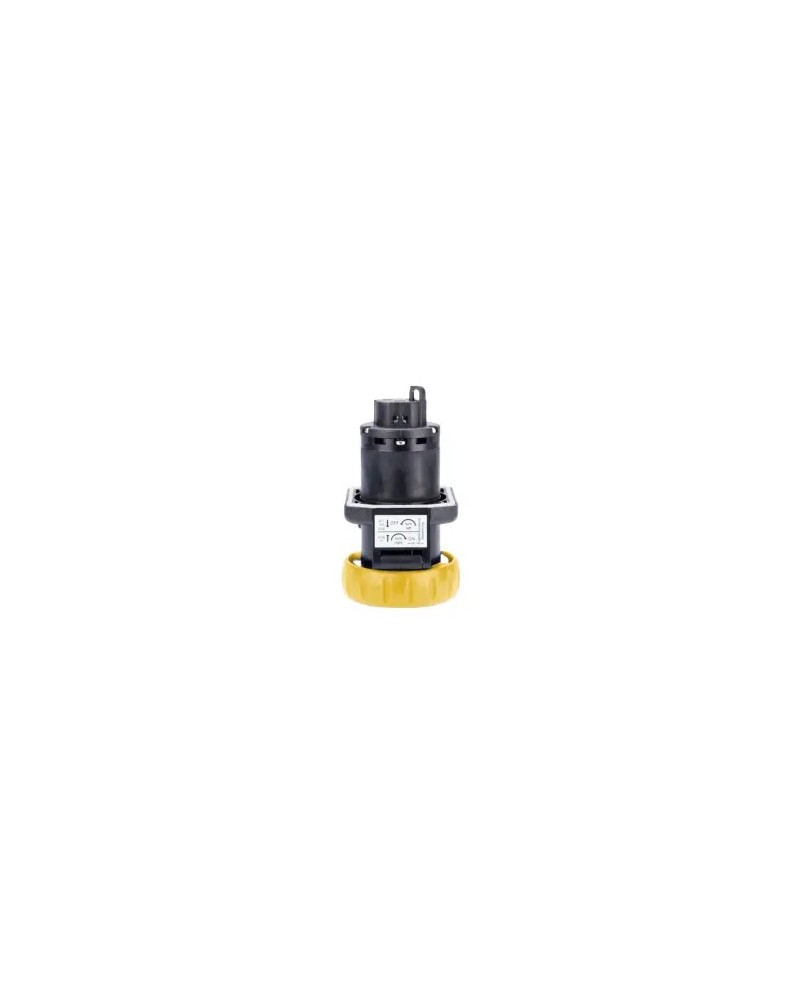

Flange socket 16 A series 8572/15
- IP66
- Ambient temperature: -50 ° C ... +65 ° C
- TESION BASE
- Zones 1, 2, 21, 22
- full switching power AC-3 according to IEC / EN 60947-3
- Contacts without wear and corrosion protected for aggressive atmosphere
- Ambient temperature: -50 ° C ... +65 ° C
- TESION BASE
- Zones 1, 2, 21, 22
- full switching power AC-3 according to IEC / EN 60947-3
- Contacts without wear and corrosion protected for aggressive atmosphere
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Compact flanges 16 A of R. Stahl's 8572/15 series are suitable for 3-pole applications. Reduced dimensions and integrated rotary switch promote an installation in multipurpose applications. Self-cleaning lamer contacts with high quality material guarantee optimum electrical contact. .
References Manufacturer: 241403,241402,241401,241406,243197
| Ambiant temperature | -50 ° C to +65 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 100-240V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 16 ATEX 1016 U |
| Certificat_iecex-en_us | IECEX PTB 16.0028U |
| Body colors | Black |
| -50 ° C to + 40 ° C | 1 |
