Extender 16 A series 8572/14
- IP66
- ambient temperature -50 ° C to +65 ° C
- Assigned voltage of use AC 100 ... 130 V AC
- Low voltage
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
- ambient temperature -50 ° C to +65 ° C
- Assigned voltage of use AC 100 ... 130 V AC
- Low voltage
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

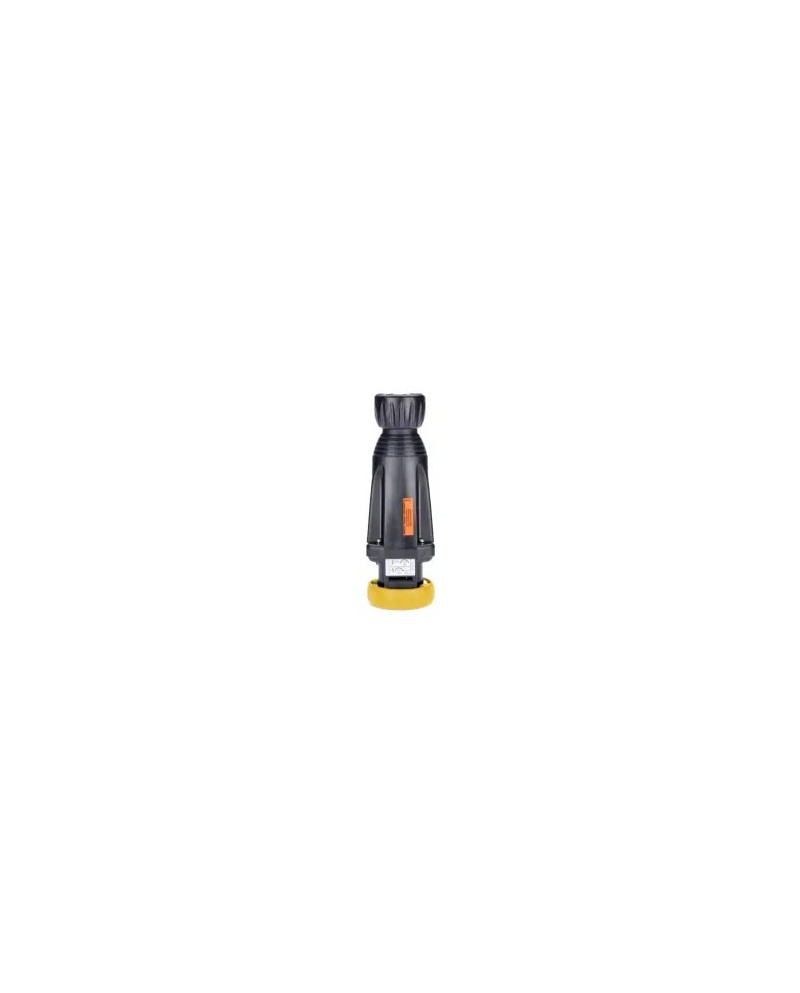

R. Stahl's 8572/14 series prolongators are compact extensions 16 has 3 robust plastic poles, designed for voltages up to 277 V. Self-cleaning slat contacts ensure electrical contact Optimal and the cards can be connected and disconnected in the zero position without great efforts. The integrated mechanical locking device prevents the draw of the load cards.
References Manufacturer: 242343,242342,242341,242346
| Ambiant temperature | -50 ° C to +65 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 100-277V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 16 ATEX 1015 |
| Certificat_iecex-en_us | IECEX PTB 16.0027 |
| Body colors | Black |
