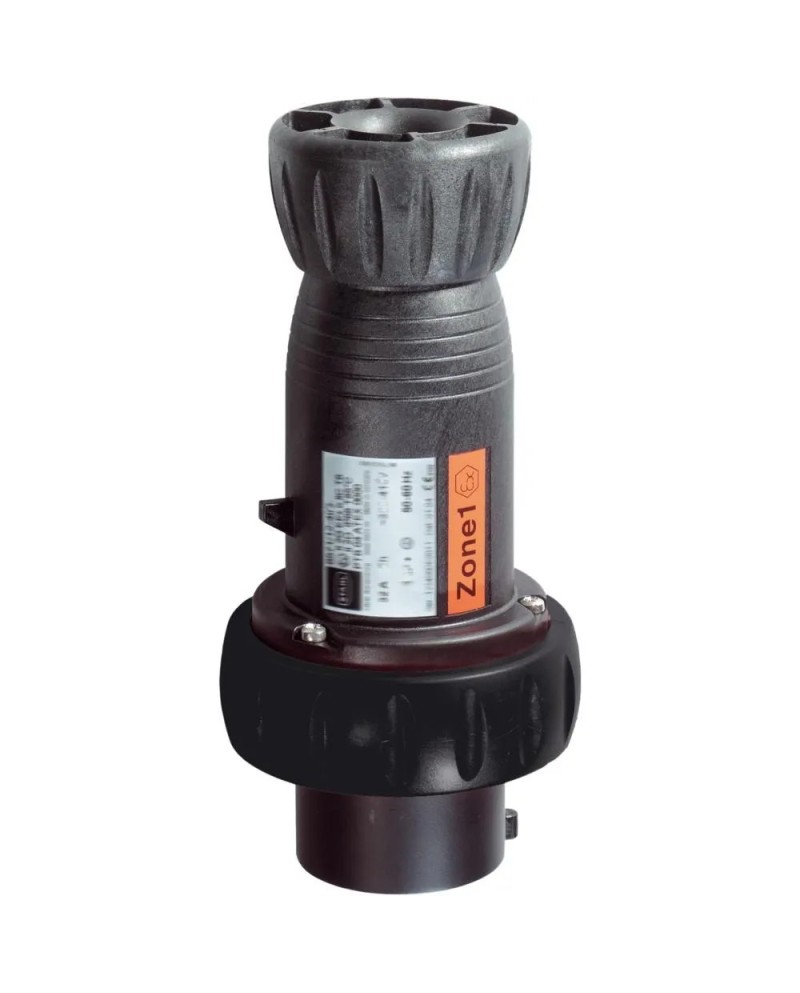

Sheet 32 A Series 8571/12
- IP66
- Ambient temperature: -50 ° C to + 65 ° C
- Different voltage ranges according to EN 60309
- No effect of driver torsion forces on the joint
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
- Ambient temperature: -50 ° C to + 65 ° C
- Different voltage ranges according to EN 60309
- No effect of driver torsion forces on the joint
- Large operating temperature range
- High mechanical strength to shocks and impacts
- Perfect protection against the penetration of liquids and dust
- 3D data to download on the website
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8571/12 SOLCONEX plugs for R. Stahl's 1/21 zone are 4 or 5-pole versions up to 32 A. They promote a tag and unchecked by floating pins. The folding tensile discharge device facilitates the driver's installation.
References Manufacturer: 275686,275688,275689,275690,275691,301433, 275678,275680,275681,275683,275684,275685
| Ambiant temperature | -50 ° C to +65 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Polyamide |
| Certificat_atex-en_us | PTB 20 ATEX 1003 x |
| Certificat_iecex-en_us | IECEX PTB 20.0003x |
| Body colors | Black |
| 50hz | 1 |
