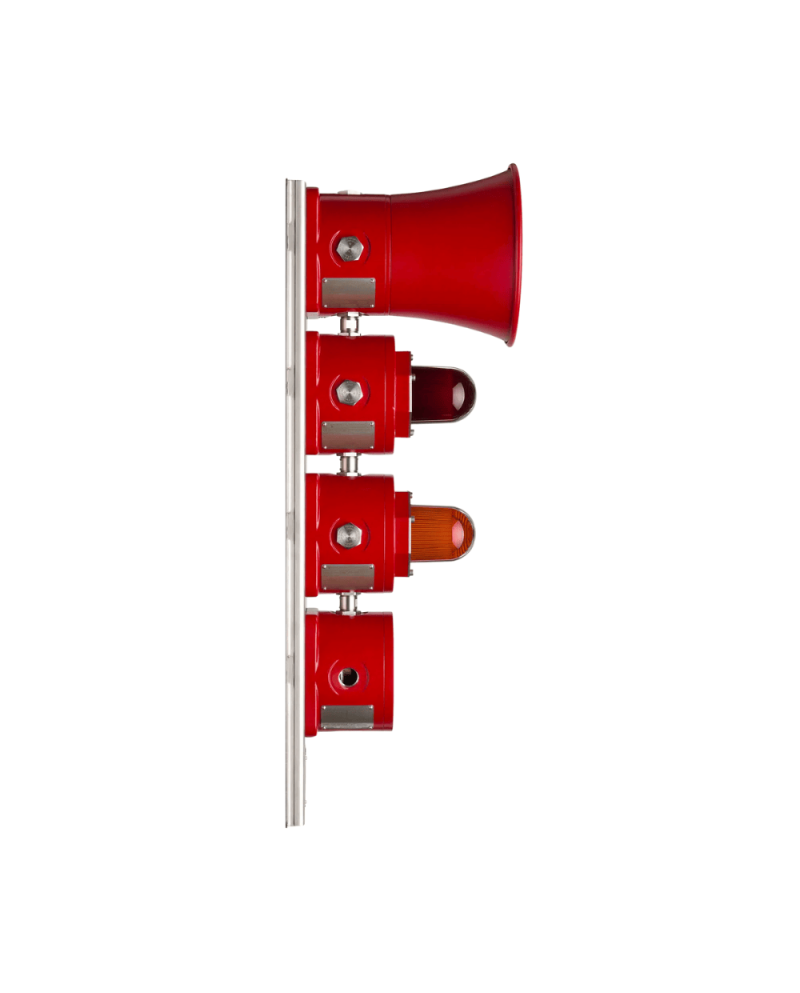

This sound and bright combined alarm SB150-2 / 3/4 is composed of a siren and several flash lights (4 maximum). It is certified for the ATEX zones of 1 to 2 for the gas and 21 to 22 for dust. It is dedicated for the oil & gas, chemistry, petrochemicals, pharmacy, navy, and all offshore applications. It has been developed for corrosive environments and explosive areas. Short lights are proposed in 2 technologies. LED fixed fire, flashing, turning different powers. Flash with Xenon tube of different powers. Four flashing frequencies are selectable. For the siren, it is possible to select 1 tone among the 59 pre-recorded, including the main usual alarm tones. The bright tags and the siren can be triggered in a common or independent manner.The whole is molded in fiberglass reinforced polyester (GRP), tinted in the mass and protected by a highly resistant UV paint, the Verrine is borosilicate glass of different shades. The assembly is assembled on a 316L stainless steel plate. Optionally it is possible to integrate the triggering of the siren or tags with a telephone line. On request one of the bright tags can be replaced by a push button or a junction box and specific customer tones can be prerecorded at the factory. A complete offer of accessories allows you to customize the products.
- Brand
- Ex-Tech
- Reference
- EXT0010
- ATEX zone
- Zone 1/2
- Ambiant temperature
- -40°C to +55°C
- Temperature class
- T6
- Warranty
- 2 years
- Feed
- 12-48V DC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Frequency (Hz)
- 50 / 60hz
- Material
- Reinforced polyester (GRP)
- Certificat_atex-en_us
- 13 ATEX 1566X
- Certificat_iecex-en_us
- NEM 13.0036X
- Body colors
- Red (RAL3001)
- Light source
- LED
- Ranting power
- 115db
- LED indicator
- 1¨
- Power
- 20w
