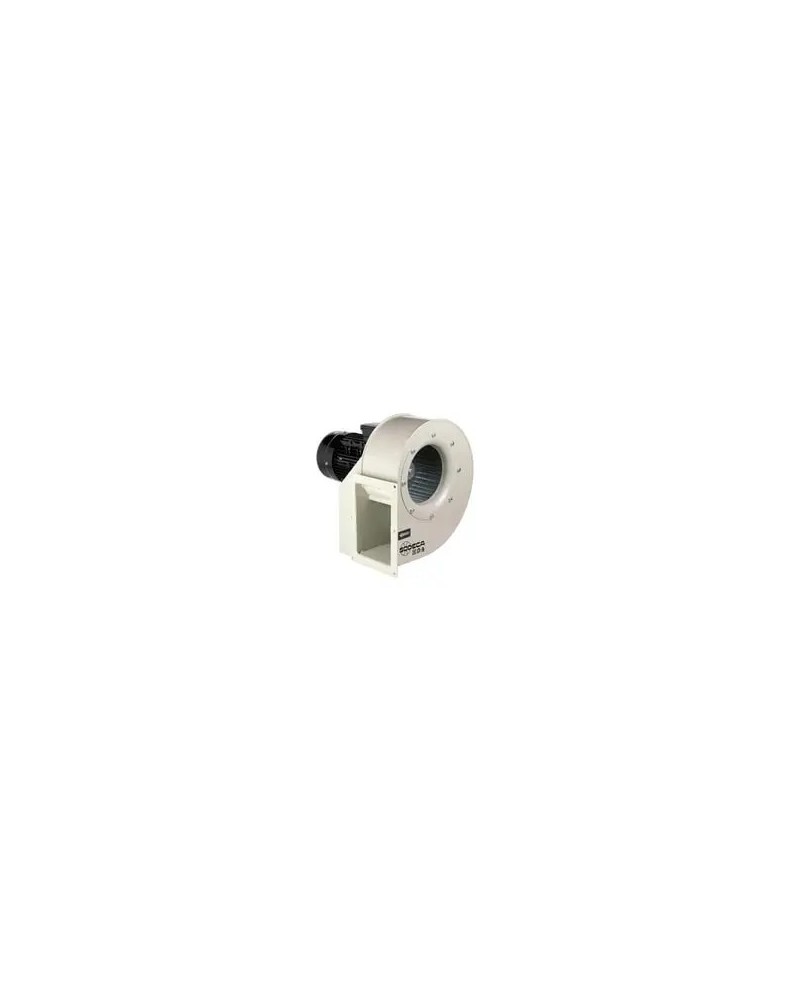

CCMP / ATEX centrifugal fan
€872.80
Tax excluded
- Steel sheet steel, except models 38-2m and 380 cast aluminum.
- Action turbine with reinforced steel sheet.
- Maximum air temperature to be transported: -25 ºC + 120 ºC, maximum +100 ºC models 38-2m and 380.
- Engines with IE3 yield for powers equal to or greater than 0.75 kW, except single-phase, 2 speeds and 8 poles.
- Class F motors with ball bearings and IP55 protection. Except monofásicos models with IP54 protection. 38-2M and 380 models with IP21 protection.
- single phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (≤ 4 kW) and 400/690 V 50 Hz (> 4 kW).
- Operating temperature: -25 ºC +50 ºC.
Last items in stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
These medium pressure centrifugal fans, with simple suction, are equipped with a ferrule and a sheet steel turbine. The steel sheet is used for its robustness and resistance to difficult work environments, ensuring a long service life and stable performance. The simple suction design allows an efficient airflow, while the ferrule optimizes the distribution of air and pressure. These fans are particularly suitable for industrial applications where reliable medium-pressure ventilation is required, while providing durable and resistant construction.
References Manufacturer: 1029569,1029570,1029571,1029572,1029573,1029574,1029575,1029576, 1029577,1029578,1029579,1029580,1029581,1029582,1029583,1029584.1 029585,1029586,1029587,1029588,1029589,1029590,1029591,1029592,10 29594,1029595,1029593,1029597,1029596,1029598,1029600,1029599,102 9356,1029359,1029360,1029361,1029362,1029365,1029366,1029369,1029 370,1029371,1029372,1029373,1029375,1029376,1029377,1029379,10293 80,1029381,1029382,1029383,1029384,1029386,1029387,1029388,102939 0.1029391,1029389,1029393,1029392,1029394,1029396,1029395,1029350
| Ambiant temperature | -20 ° C to 40 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 230V AC |
| Waterproofing protection (IP) | Ip55 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIB |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.ce |
| Frequency (Hz) | 50hz |
| Material | Steel sheet with anti-corrosion epoxy coating |
| Ex e (increased security) | 1 |
