List of products by brand steute Schaltgeräte

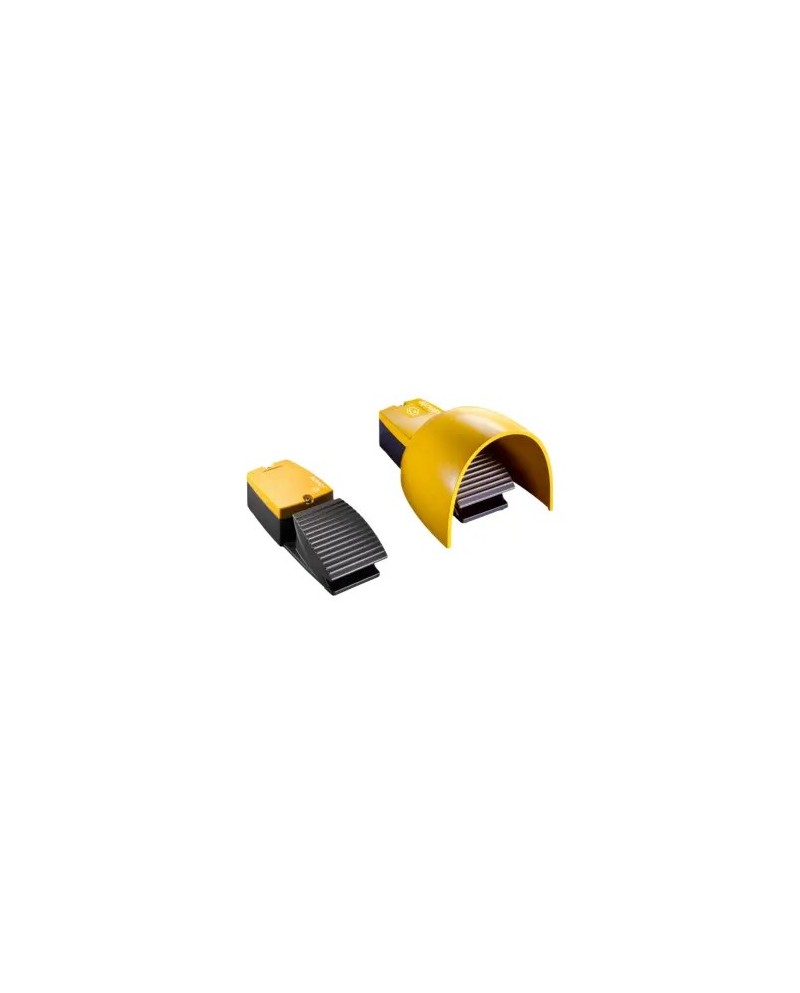

Mindless Control Pedal Type: Ex GFI
- Aluminum case, powder coating
- a pedal
- Available with or without protection hood
- Ergonomic pedal
- Large opening width of the hood
- With connection chamber
- Product Description: Pedal Switch
- Minimum ambient temperature: -40 ° C
- Ambient maximum temperature: +70 ° C
- Switching function: Slow action contact
- Designation 1: Pedal switch
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D | Cc
- Actuator: pedal
- Contacts: 1 NF + 1 No
- a pedal
- Available with or without protection hood
- Ergonomic pedal
- Large opening width of the hood
- With connection chamber
- Product Description: Pedal Switch
- Minimum ambient temperature: -40 ° C
- Ambient maximum temperature: +70 ° C
- Switching function: Slow action contact
- Designation 1: Pedal switch
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D | Cc
- Actuator: pedal
- Contacts: 1 NF + 1 No
Ex pedal switches are used on all systems and machines where manual actuation is not possible or useful. All ex pedal switches in the EX GFS series are protected by a protective cover against any accidental actuation due to the fall of objects.
References Manufacturer: 240446
STL0234
Data sheet
- Ambiant temperature
- -40 ° to + 70 °
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/2
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum Marine Quality
Mindless Control Pedal Type: Ex GFSI
- Aluminum case, powder coating
- a pedal
- Available with or without protection hood
- Ergonomic pedal
- Large opening width of the cover with connection chamber
- Product Description: Pedal Switch
- Minimum ambient temperature: -40 ° C
- Ambient maximum temperature: +70 ° C
- Switching function: Slow action contact
- Designation 1: Pedal switch
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D | Cc
- Actuator: Pedal Contacts: 1 NF + 1 No
- a pedal
- Available with or without protection hood
- Ergonomic pedal
- Large opening width of the cover with connection chamber
- Product Description: Pedal Switch
- Minimum ambient temperature: -40 ° C
- Ambient maximum temperature: +70 ° C
- Switching function: Slow action contact
- Designation 1: Pedal switch
- FILTERING ZONE: ZONE 1 | 2G | Go / Zone 2 | 3G | GC / Zone 21 | 2D | Db / zone 22 | 3D | Cc
- Actuator: Pedal Contacts: 1 NF + 1 No
Ex pedal switches are used on all systems and machines where manual actuation is not possible or useful. All ex pedal switches in the EX GFS series are protected by a protective cover against any accidental actuation due to the fall of objects.
References Manufacturer: 240443
STL0235
Data sheet
- Ambiant temperature
- -40 ° to + 70 °
- Temperature class
- T6
- Warranty
- 2¨
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- ATEX zone
- Zone 1/2
- Gas class
- IIC
- ATEX protection mode
- Ex d (explosion)
- Certificates
- Atex.iecex
- Material
- Aluminum Marine Quality
