List of products by brand Cortem

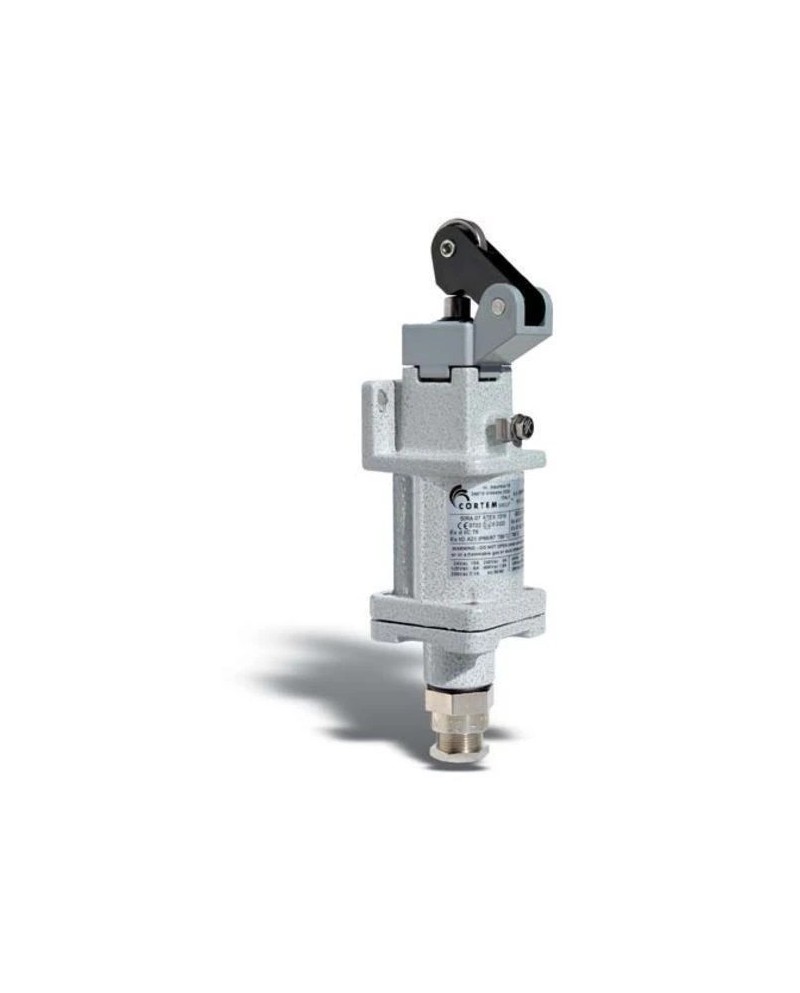

YFC Series New Screening Position Switch
- IIC Group
- Zones 1, 2, 21, 22
- Aluminum alloy
- Easy installation, wiring and maintenance
- Durable and safe in time
- Zones 1, 2, 21, 22
- Aluminum alloy
- Easy installation, wiring and maintenance
- Durable and safe in time
The explosion-free switches of the YFC series are equipped with a mechanically linked actuator to contacts. The series includes both position switches and switches for safety applications. They are available in ten basic versions, depending on the type of actuator used, or by sixty versions, if we consider sudden or slow action contacts. Thanks to the combination of different types of actuators, body and contacts, the YFC end switches are ideal for a wide range of applications and for fluid operation of the system. Resistant to corrosion and vibration, their mechanical and electrical components are capable of withstanding the extreme mechanical and thermal stresses to which they are continuously subjected. Designed to be installed in potentially explosive atmospheres, in the presence of combustible gas (hydrogen and acetylene), vapors, fogs and powders, zones 1 and 21, 2 and 22, they are also used in industrial waterproof applications and civilian. Construction: Low copper aluminum alloy body. Inside there is a nylon support in which the contact block is mounted. The set of screws is made of quality stainless steel min 8.8. Polyester paint RAL7035. Silicone joints between the body and the lid and between the body and the head. Types of different and interchangeable heads with 90 ° rotation possibility 90 ° and waterproof fixing screws.
References Manufacturer: YFC-E11Z11, YFC-E12W20, YFC-E12Z02, YFC-E12Z11, YFC-E13Z11, YFC-E21Z11, YFC-E22Z11, yFC-E31Z11, YFC-E32W02, YFC-E32W20, YFC-E32X11, YFC-E32Z11, YFC-E33Z11, YFC- E41Z02, YFC-E41Z11, YFC-E42W02, YFC-E42W20, YFC-E42Z02, YFC-E42Z11, YFC-E43Z11, YFC-E44W02, YFC-E44Z11, YFC-E51W02, YFC-E51W20, YFC-E51X11, YFC-E51Z02, YFC- E51Z11, YFC-E52W02, YFC-E52W20, YFC-E52X11, YFC-E52Z02, YFC-E52Z11, YFC-E53Z11, YFC -E61X11, YFC-E61Z11, YFC-E62W02, YFC-E62W20, YFC-E62Y11, YFC-E62Z02, YFC-E62Z11, YFC-E71W20, YFC-E71Z11, YFC-E72Z11, YFC-E73Y11, YFC-E73Z11, YFC-E75Z11, YFC-E91Z11, YFC-E99W20, YFC-E99Z11
CTM0107
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- max. 500 V AC. 250V DC
- Protection étanchéité (IP)
- IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- SIRA 07 ATEX 1316
- Certificat_IECEx-fr_FR
- SIRA 07 ATEX 1316
- Couleurs corps
- Gris RAL 7035
- Entrée(s) de câble
- 1xM20
- New

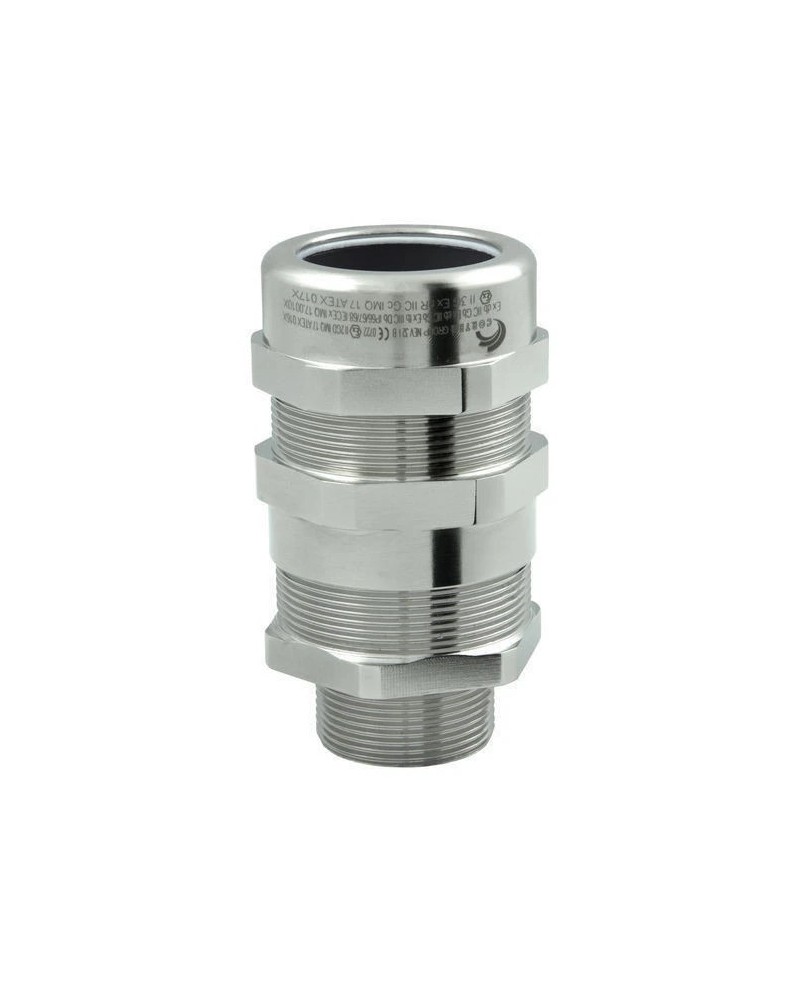

ATEX cable gland Nev armed cable
- ex d double compression
- IP66 / 68
- Zone 1, 2, 21, 22
- IP66 / 68
- Zone 1, 2, 21, 22
The NEV series cable glands can be used in the explosion zones, to allow direct armed cable inputs in new-slip boxes. They are supplied with a rubber cable pass for tightening the input cable, thoroughly ensuring the "EX d" conformation, and a second rubber cable, which attaches to the outgoing cable shield for guarantees the index. IP 66/68 protection. The result is represented by an optimal gland with optimal services in terms of reliability and safety over time, able to cover a wide range of the main cables on the market and consistent with the latest standards. Thanks to their structure, they respond to particularly difficult environments, such as the marine environment, as well as mechanical and shock constraints, as is often the case in all places in the "Lourdes" industry, where security is a top priority.
References Manufacturer: Nevb01b, NevB01nb, NevB01Ns, NevB01s, Nevb16ib, NevB16is, NevB1b, NevB1nb, Nevb1ns, nevb1s, nevb1sb, nevb1snb, nevb1sns, nevb1ss, nevb20ib, nevb20is, nevb20sob, nevb20sis, nevb25ib, nevb25is, nevb2b, nevb2nb, nevb2ns, nevb2s, nevb32ib, nevb32is, nevb3b, nevb3nb, nevb3ns, nevb3s, nevb40ib, nevb40is, nevb4b, nevb4nb, nevb4ns, nevb4s, nevb50ib, nevb50is, nevb50sob, nevb50sis, nevb5b, nevb5nb, nevb5ns, nevb5s, nevb5sb, nevb5snb, nevb5sns, nevb5ss
CTM0081
Data sheet
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP67
- Application/Usage
- Zone ATEX
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx
- Certificat_ATEX-fr_FR
- IMQ 17 ATEX 016X
- Certificat_IECEx-fr_FR
- IECEx IMQ 17.0010X
- New

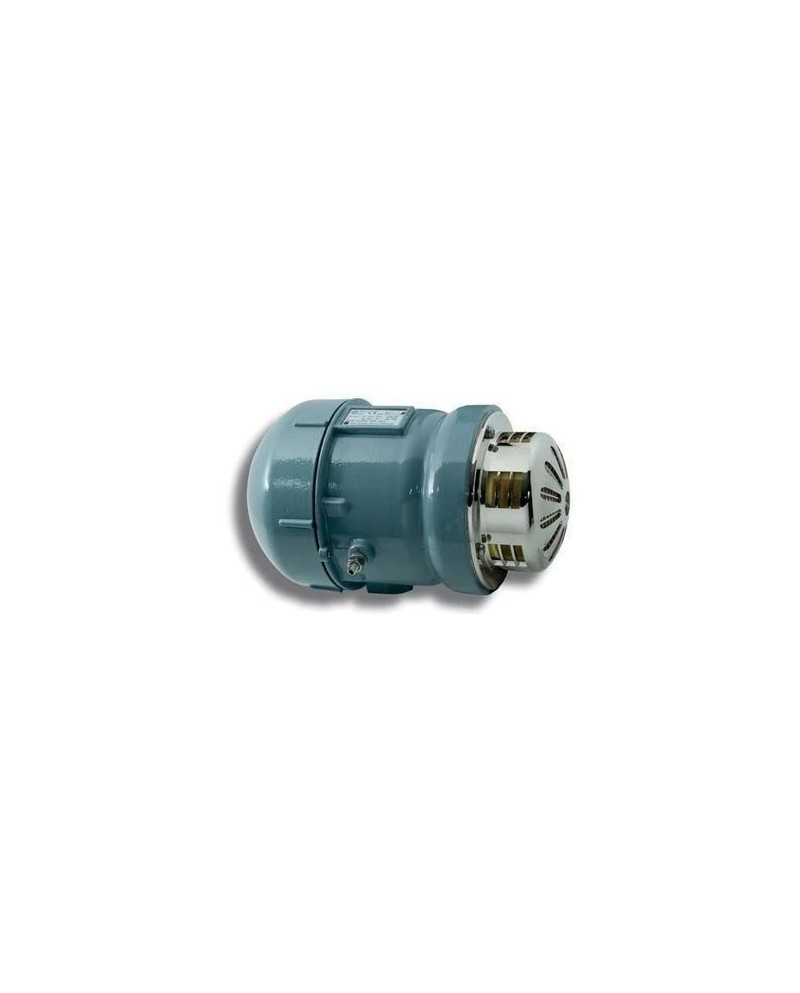

Rotary siren ETS61
- Zones 1, 2, 21, 22
- Ex protection
- max. 114 dB
- Ex protection
- max. 114 dB
The rotary sirens of the ETS series are suitable for applications where the use of a warning ring and / or alarm is necessary, in areas where the atmosphere is potentially explosive, such as chemical plants and refineries, stations. Pumping, paint plants, silos and grain conveyors, and where flammable dust can be present. Because of their high power, they are used in environments where the background noise is important.
References Manufacturer: ETS60 / 109DB115V, ETS60 / 109DB12V, ETS60 / 109DB230V, ETS60 / 109DB24V, ETS60 / 114DB115V, ETS60 / 114DB12V, ETS60 / 114DB230V, ETS60 / 114DB24V
CTM0049
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- INERIS 02 ATEX 0001
- Couleurs corps
- Revêtement époxy Gris (RAL 7000)
- New

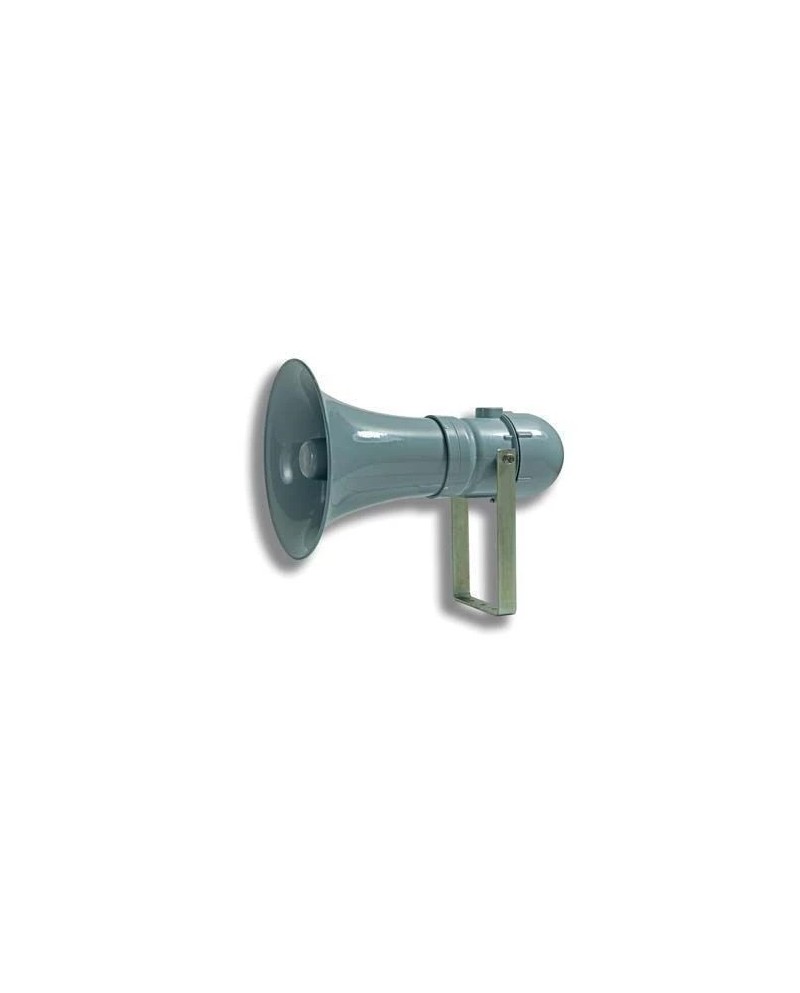

Loudspeaker ETH 100V 6-25W
- Zones 1, 2, 21, 22
- Output of 100 dB to 112 dB
- Ex d protection
- IP66
- Output of 100 dB to 112 dB
- Ex d protection
- IP66
The Voice and Soundlip Alarms of the ETH20MDLOUD series are designed for use in potentially explosive atmospheres, in the presence of gases and dust. They guarantee a high degree of protection (IP66) to deal with binding environmental conditions, such as those found in off-shore and on-shore facilities. They are particularly responding to a connection to standard amplification systems at 100 V, for communication with the public and for connecting to alarm systems. The acoustic compression chamber is separated from the environment by a special sintering filter. They are equipped with a transformer and the sound level can be adapted and selected according to the practical requirements of the installation site.
References Manufacturer: ETH20MDLOUD / TR
CTM0048
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- 24-48V DC
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- INERIS 09 ATEX 0024X
- Couleurs corps
- Revêtement époxy Gris (RAL 7000)
- Puissance sonnore
- 112dB
- New

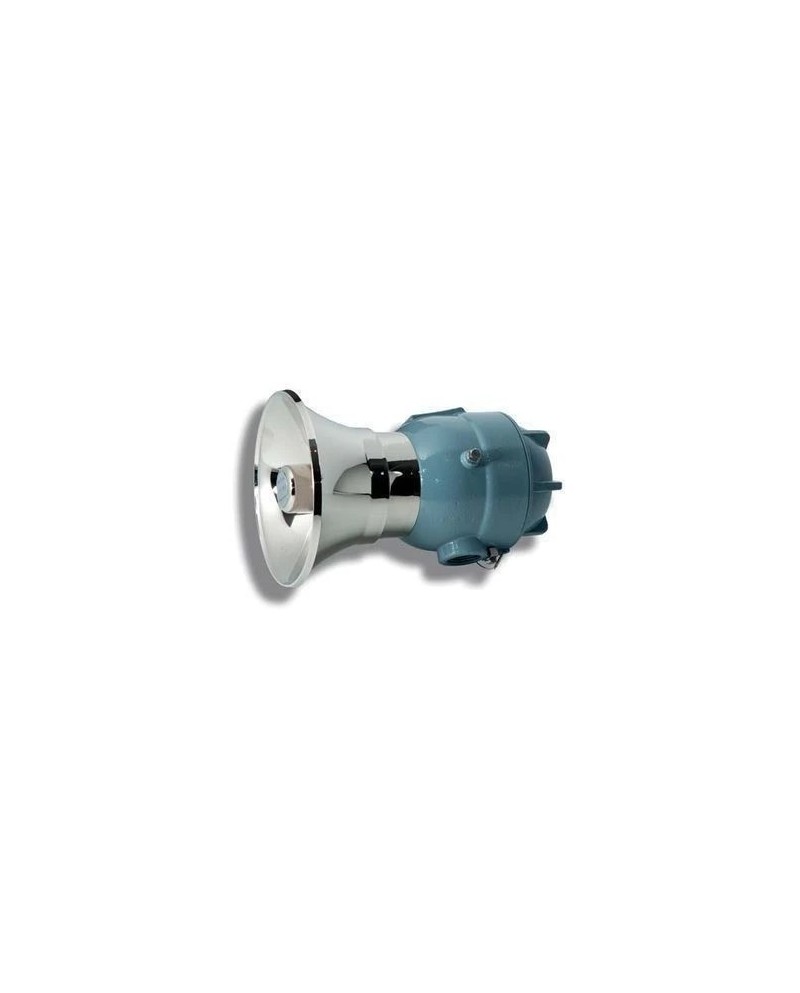

Explosion-free speaker series eth
- Zones 1, 2, 21, 22
- max. 110 dB
- Continuous Operation
- Ex protection
- max. 110 dB
- Continuous Operation
- Ex protection
Sound alarms belonging to the ETH series are suitable for applications where necessary a warning and / or alarm ring, in areas where a potentially explosive atmosphere is present. Five sounds can be selected (Bitonal - Yelp - Wail - Intermittent - Fixed note), or unique (bitonal).
References Manufacturer: ETH-12MD / 110VCA, ETH-12MD / 12 / 5T, ETH-12MD / 230VAC, ETH-12MD / 48 / 5T, ETH-12MD / 48CC5T, ETH -20md / 110vca, ETH-20MD / 12 / 5T, ETH-20MD / 230VCA
CTM0047
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- 24V DC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- INERIS 02 ATEX 0074X et ISSeP 11 ATEX 040X
- Couleurs corps
- Revêtement époxy Gris (RAL 7000)
- Puissance sonnore
- 108dB
- Puissance électrique
- 10W
- New

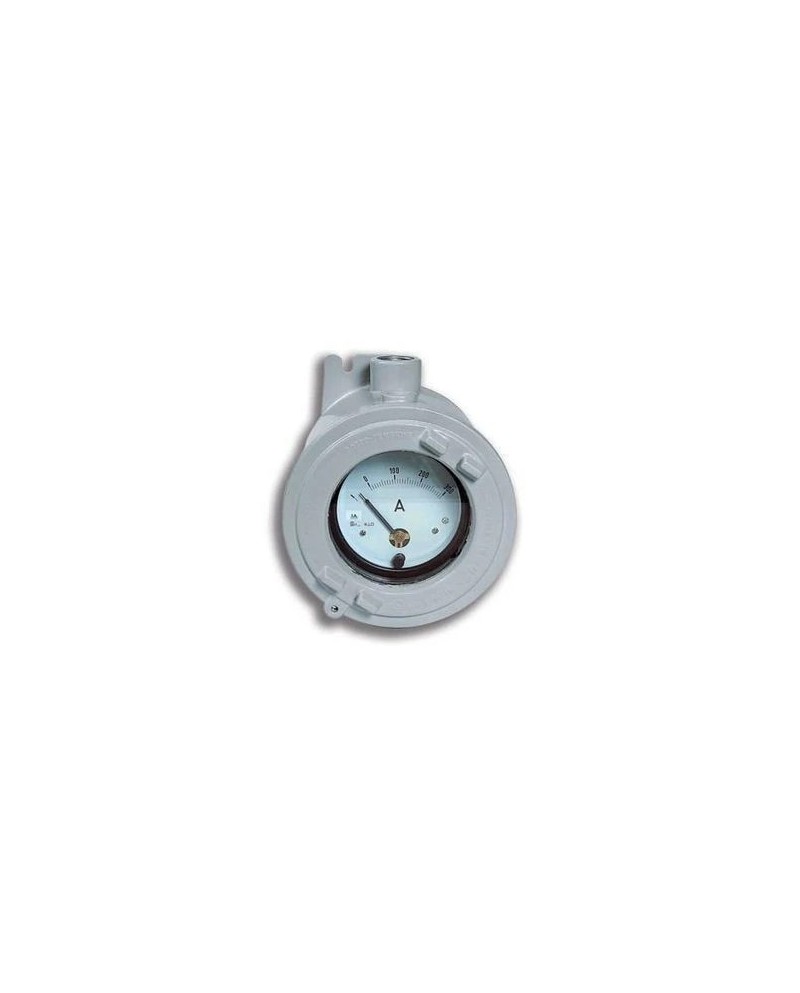

EMHA instrument box
- IIC Group
- Zone 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
- Zone 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
The EMHA-9 instrument holders are normally used to contain analog needle instruments such as ammeters and medium-sized voltmeters.
References Manufacturer: EMHA-9
CTM0045
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 092 X
- Certificat_IECEx-fr_FR
- CES 17.0001X
- Couleurs corps
- Gris RAL 7035
- New

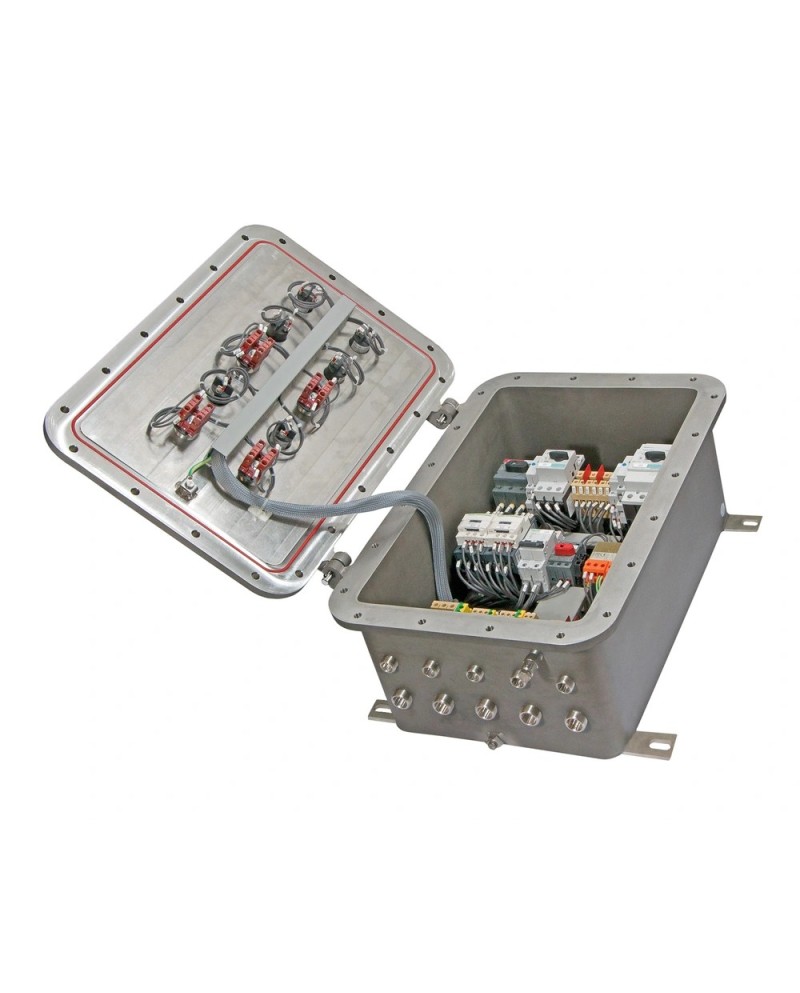

EJBX series stainless steel explosion box
- Zones 1, 2, 21, 22
- IIB + H2 Group
- Stainless steel junction boxes
- IP66 / 67
- IIB + H2 Group
- Stainless steel junction boxes
- IP66 / 67
EJBX series housings are set up in industrial facilities with explosion and fire and characterized by the presence of combustible dust, classified as zone 1, 2, 21, 22. These housings are made of welded sheet In steel steel316L, with stainless steel screws and a seal on the perimeter between the body and the silicone cover, for guaranteeing IP66 protection. EJBX is essentially used to connect cables with the associated bypass terminals, as fuse, transformers, ballast boxes, such as control and signaling tables, lighting distribution and driving force or starter. Engine, with different configurations that can be customized for our customers around the world.
References Manufacturer: EJBX-01, EJBX-01B, EJBX-1, EJBX-2, EJBX-3, EJBX-3B, EJBX-3B / 2015, EJBX-4, EJBX-4/2015, EJBX-45, EJBX-45/1005, EJBX-45/1010, EJBX-45/1107, EJBX-45/3020, EJBX-45B, EJBX- 45B / 1510, EJBX-4B, EJBX-5, EJBX-5/1010, EJBX-5/1510, EJBX-5/2010, EJBX-55, EJBX-55/1508, EJBX-55/3020, EJBX-55B, EJBX-5B, EJBX-5B / 1006, EJBX-6, EJBX-6/1510, EJBX-6/3020, EJBX- 6B, EJBX-6B / 1010, EJBX-7, EJBX-7/1010, EJBX-7/2020
CTM0038
Data sheet
- Ambiant temperature
- -20°C à 40°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIB
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Acier inoxydable 316L
- Certificat_ATEX-fr_FR
- CESI 00 ATEX 036U (commande) et CESI 01 ATEX 026 (boite de jonction)
- Certificat_IECEx-fr_FR
- TSA 06.0011
- Taille de filetage
- M20
- Couleurs corps
- Gris foncé
- Entrée(s) de câble
- 1xM20
- Type de filetage
- ISO
- IIC
- 1
- New

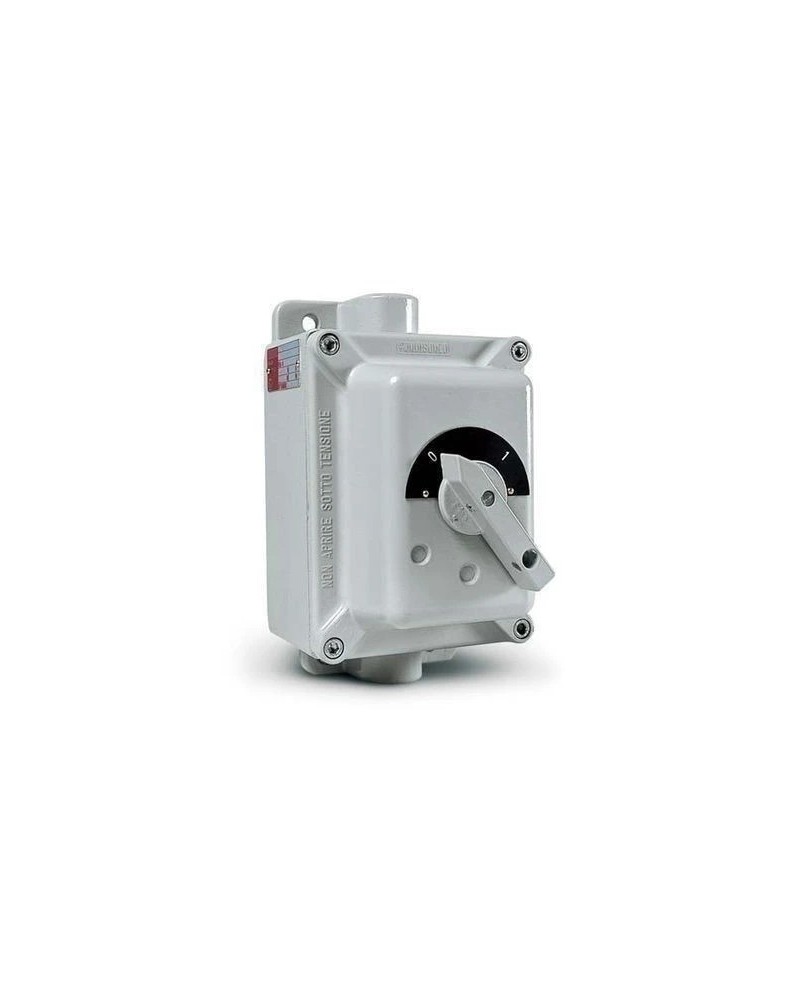

EFD3 Series Engine Protective Device
- IIB group
- Zones 1, 2, 21, 22
- Aluminum alloy boxes
- Category 2GD
- Zones 1, 2, 21, 22
- Aluminum alloy boxes
- Category 2GD
Triporal magnetothermal circuit breakers in the EFD3 series are used for the (start-stop) control and the protection of three-phase motors. Switch with adjustable magnetothermal protection and external maneuver.
References Manufacturer: EFD3-02, EFD3-04, EFD3-06, EFD3-10, EFD3-100, EFD3-16, EFD3-160, EFD3-200, EFD3-25, EFD3-250, EFD3-40, EFD3-63
CTM0034
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIB
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 172
- Couleurs corps
- Gris RAL 7035
- New

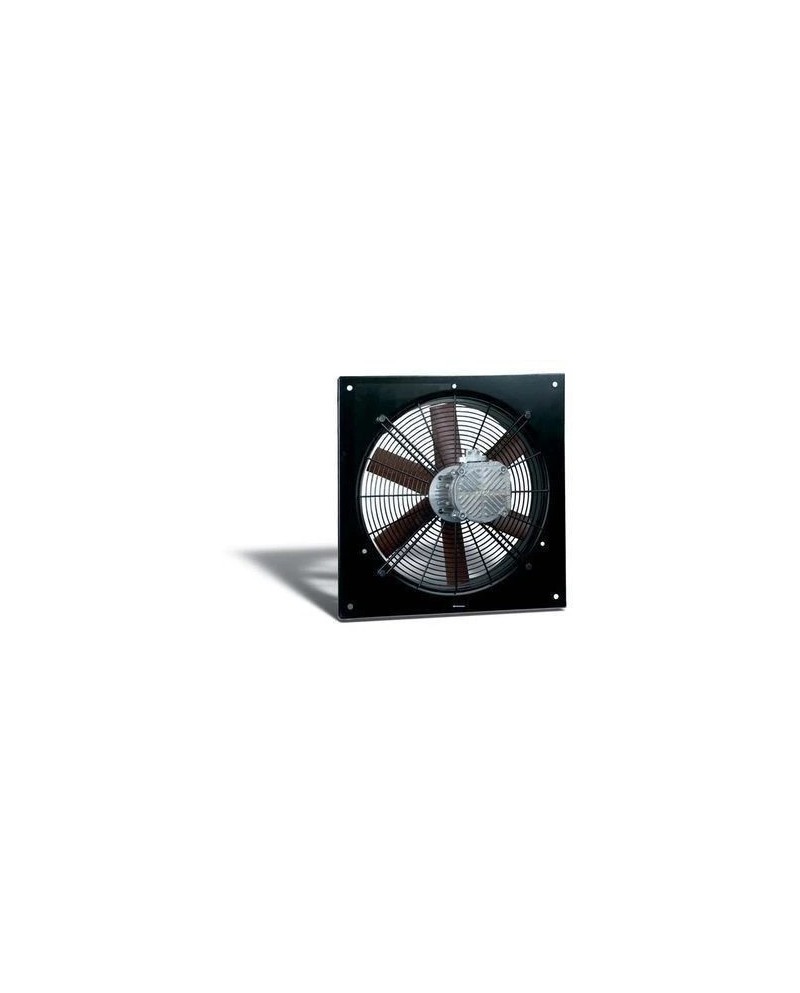

Helicoidal Extractor ATEX Series EB
EB series helical extractors can be used in potentially explosive gas atmospheres (zones 1, 2).
Helical extractors that can be used in potentially explosive atmospheres. They are suitable for a wall or panel mounting, for air or smoke extraction directly outside or through a short length conduit, or when forced ventilation is required.
References Manufacturer: EB-254MEX, EB-254TEX, EB-304MEX, EB-304TEX, EB-354Mex, EB-354TEX, EB-404Mex, EB-404TEX, EB-504Mex, EB-504TEX
CTM0029
Data sheet
- Warranty
- 2¨
- Application/Usage
- Zone ATEX
- Classe de gaz
- IIB
- Certificats
- ATEX
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 251
- New

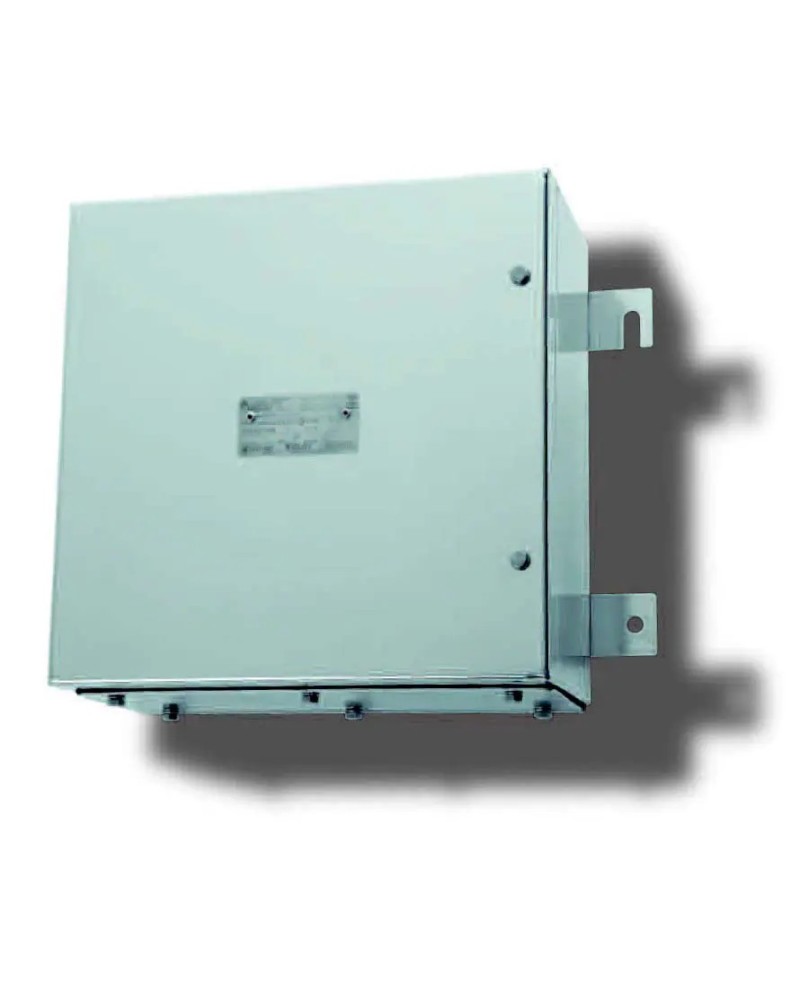

CSTB explosion
- Zones 1, 2, 21, 22
- 316 L Power Junction Boxes Electropoli
- 25 different sizes
- Acid-resistant seal and high temperatures
- IK10 mechanical strength
- IP66
- 316 L Power Junction Boxes Electropoli
- 25 different sizes
- Acid-resistant seal and high temperatures
- IK10 mechanical strength
- IP66
The CTB, CSTB series series is made of AISI 316L stainless steel to ensure use in the aggressive environments in which they are installed. Thanks to their high level of quality and the use of high quality materials, machined by exploiting a technology at the forefront, they are able to successfully resist aggressive external influences such as water, dust. , violent shocks, vibrations, corrosion and extreme temperature fluctuations, while maintaining intact their reliability for a very long turn of time. The CTB, CSTB series housings are used for cable bypass for analog or digital signals, control and control of equipment such as engines, pumps, etc. The main function of the housings is to protect the internal components against external influences such as moisture or dust, and they must therefore have an appropriate IP protection index. As a test, Cortem Tests the housings in accordance with EN 60529 in its own accredited laboratory. As a reliable partner, Cortem Prepare solutions that are customized according to customer requirements, providing a wide catalog of distinctive products and components that are configured to give rise to tailor-made and very advantageous solutions from an economic point of view.
References Manufacturer: CSTB121208, CSTB151509, CSTB191910
CTM0023
Data sheet
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Mode de protection ATEX
- Ex de
- Certificats
- ATEX.IECEx.INMETRO
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 333
- Certificat_IECEx-fr_FR
- CES 13.0001
- New

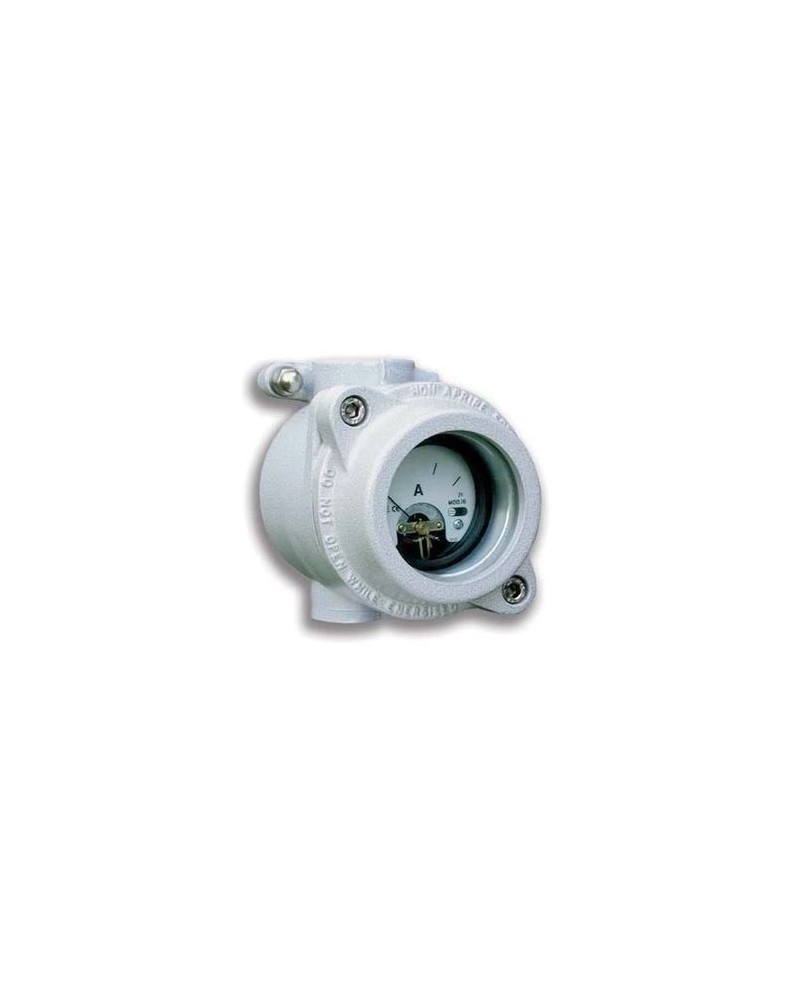

CSC Series New Screening Control Station
- IIC Group
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
CSC instrument cabinets are normally used to contain analog needle instruments such as small ammeters and voltmeters.
References Manufacturer: CSC-1C, CSC-1CL, CSC-1I, CSC-1M, CSC-1R, CSC-1R1C, CSC-1R1Z, CSC-1R2C, CSC -1R2Z, CSC-1R3C, CSC-1R3Z, CSC-1RH, CSC-1RL, CSC-1W, CSC-1X, CSC-1X1C, CSC-1X1Z, CSC-1x2C, CSC-1x2Z, CSC-1x3C, CSC-1x3Z, CSC-1XH, CSC-1XL, CSC-1Y, CSC-1Z, CSC- 1ZL, CSC-216, CSC-2C, CSC-2CL, CSC-2F, CSC-2I, CSC-2P, CSC-2R, CSC-2W, CSC-2Z, CSC- 2ZL, CSC-316, CSC-3C, CSC-3CL, CSC-3I, CSC-3Z, CSC-3ZL, CSC-416, CSCC-216, CSC-D, CSCD-216, CSC-F, CSC-FK, CSC-G, CSC-GG, CSC-H, CSC-HH, CSC-216, CSC-L, CSC-LL, CSC- P, CSC-P1C, CSC-P1Z, CSC-P2C, CSC-P2Z, CSC-P3C, CSC-P3Z, CSCPEA2, CSC-PL, CSC-PP, CSC-R
CTM0020
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 092 X
- Certificat_IECEx-fr_FR
- CES 17.0001X
- Couleurs corps
- RAL7035
- -20°C à +60°C
- 1
- New

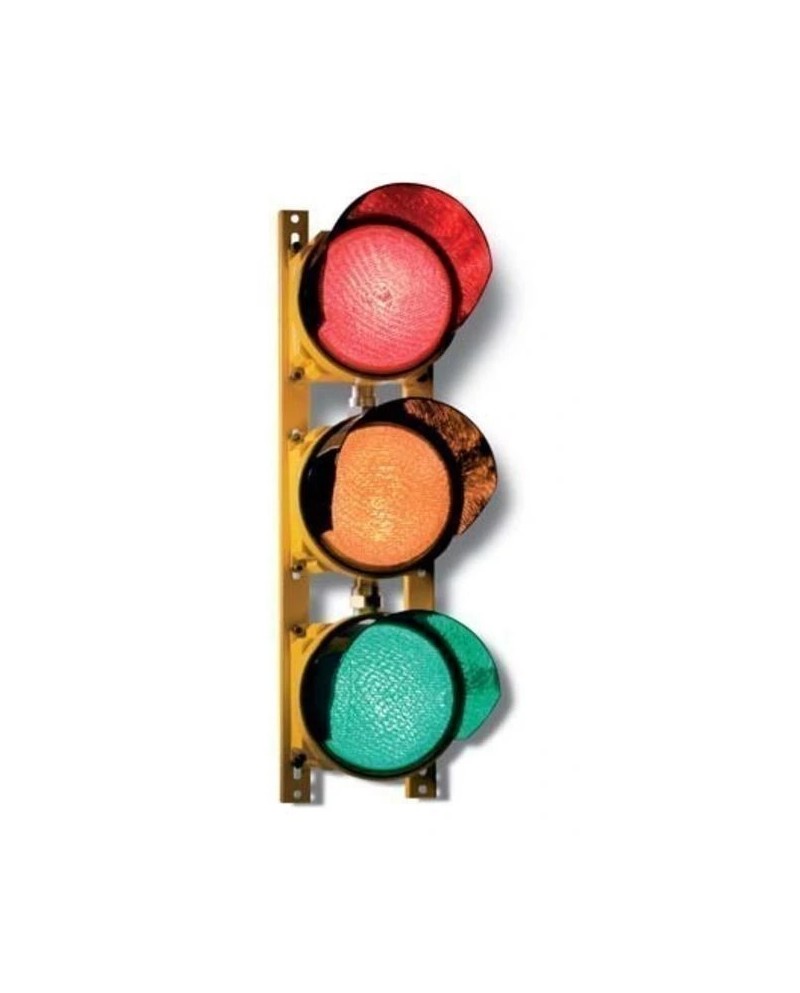

ATEX AC series LED traffic light
- Reduced maintenance costs
- Reduced energy consumption
- LED technology
- Areas 1, 2, 21, 22
- Reduced energy consumption
- LED technology
- Areas 1, 2, 21, 22
The CCA-02E/S...LD signal light system is suitable for traffic regulation in chemically aggressive industrial environments or in potentially explosive areas classified as Zone 1 - 2 - 21 or 22. The advantages offered by the CCA-02E/S...LD are: reduced maintenance costs, improved visibility under critical conditions thanks to LED lamps, improved reliability thanks to continuous light guaranteed even in the event of an LED failure and, finally, the absence of any "phantom" effect.
References Manufacturer: CCA-02E/S1-1LD,CCA-02E/S1-2LD,CCA-02E/S1-3LD,CCA-02E/S2-4LD,CCA-02E/S24LD24,CCA-02E/S2-5LD,CCA-02E/S2-6LD,CCA-02E/S3-7LD,CCA-02E/S37LD24
CTM0013
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 036X
- Indicateur LED
- 1¨
- New

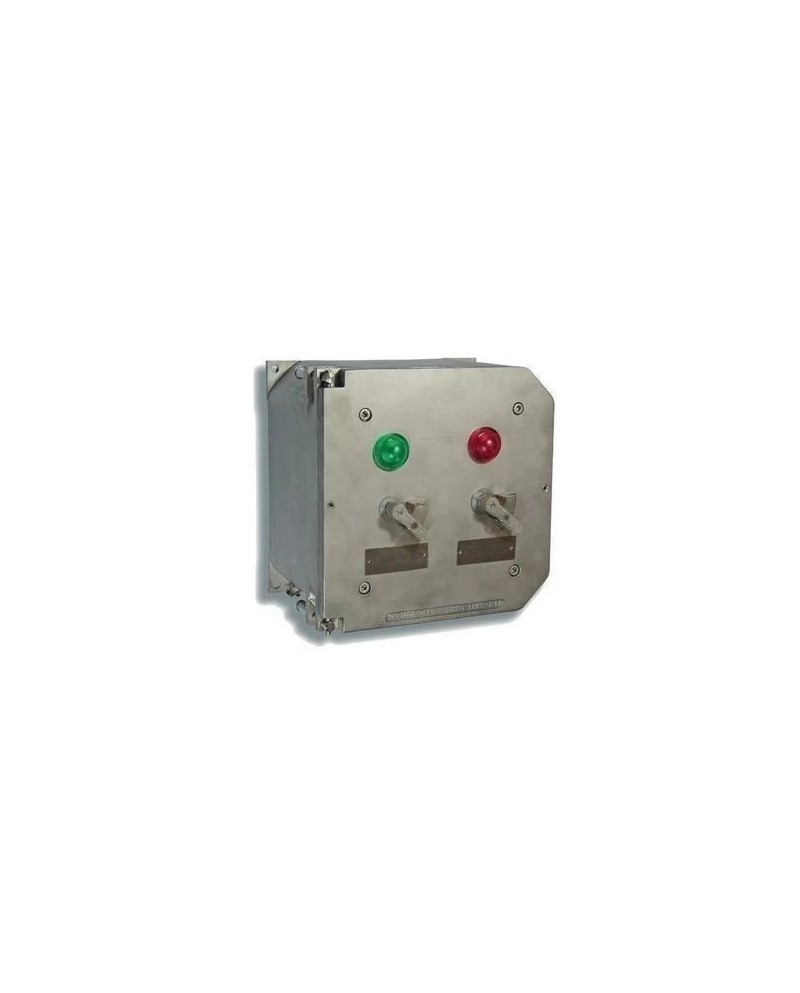

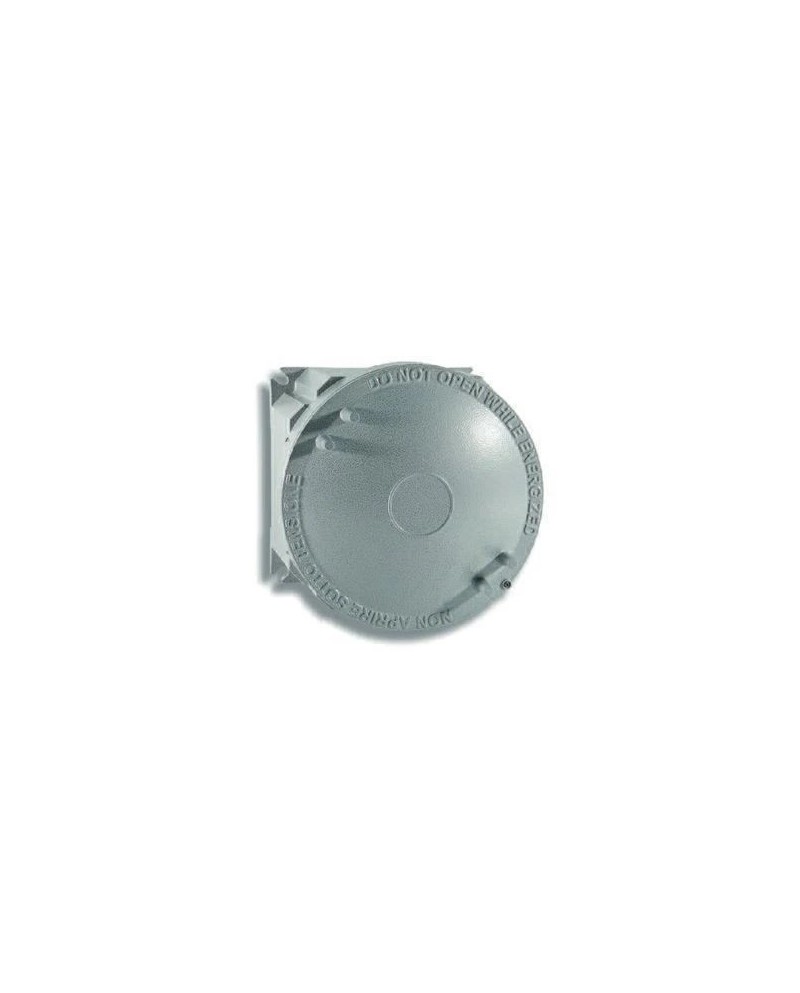

CCA deflator bypass box
- Area 1, 2, 21, 22
- Group IIC
- Screw cover with ergot for safety lock
- 5 different sizes
- IP66
- Group IIC
- Screw cover with ergot for safety lock
- 5 different sizes
- IP66
The cases of the CCA...E series are recommended for mounting terminals, due to the large surface made available, which facilitates access for the operator. On the other hand, the limited surface area of parishes offers fewer possibilities for forage. The quality of this product is recognized and appreciated worldwide due to the specific aluminum alloy used and the mechanical characteristics of the finishes. The CCA...E series is used in the presence of GAZ category IIC and mainly serves as terminal doors, fusible doors, transformers, ball-gates, barriers, but also for the construction of control and signalling panels, lighting and motor power distribution boards, engine start tables in different configurations, specially customized for our customers worldwide. The CCA...EH series consists of a threaded lid with an inspection window with tempered glass pane.
References Manufacturer: CCA-01C,CCA-01E,CCA-01EH,CCA-02C,CCA-02E
CTM0012
Data sheet
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.INMETRO
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 034U
- Certificat_IECEx-fr_FR
- CES 14.0012U
- Couleurs corps
- RAL7035
- New

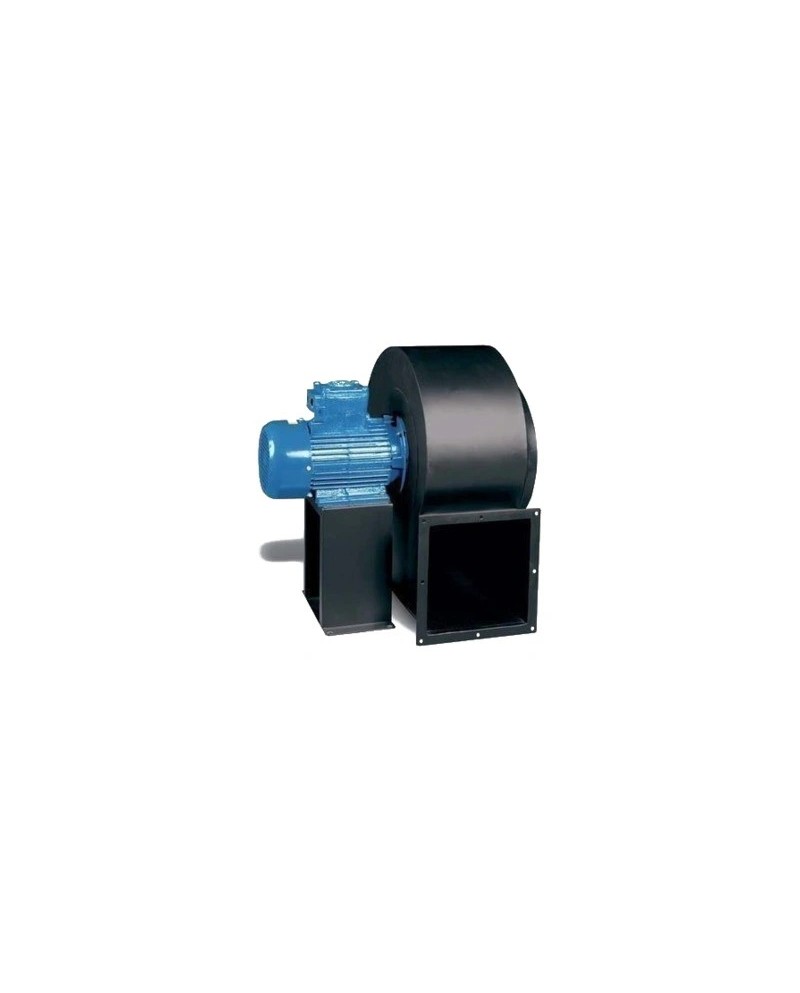

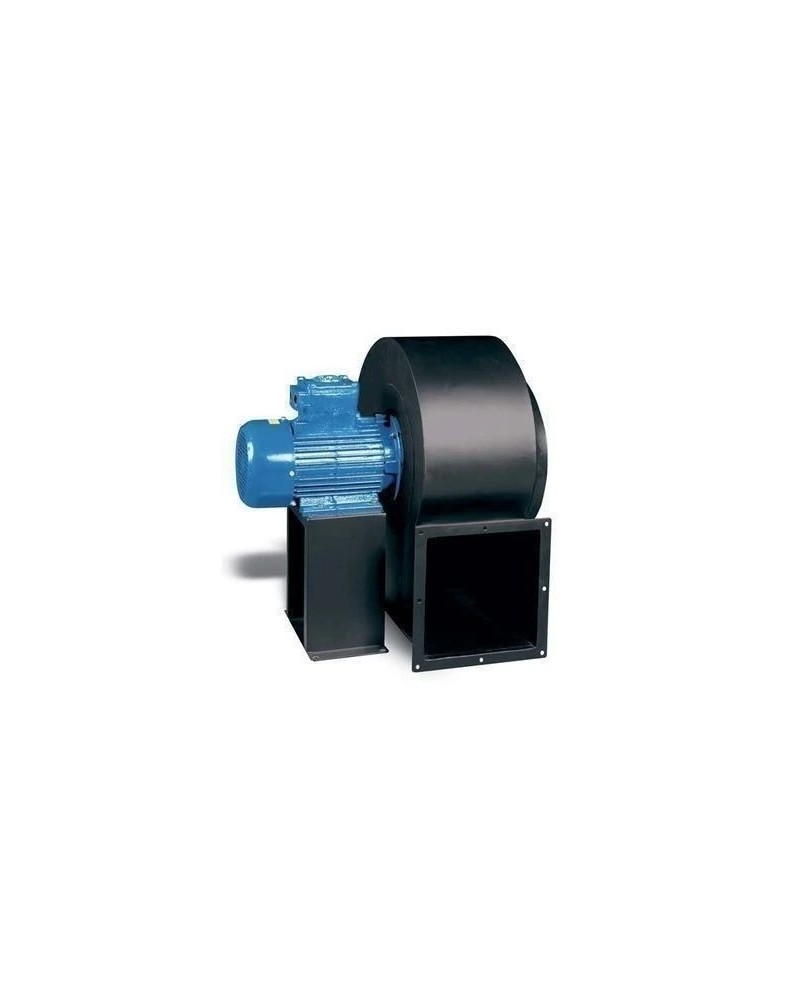

ATEX 400W series CB centrifugal extractor
- Zone 1, 2
- Maximum temperature of 70° C
- Maximum temperature of 70° C
Centrifugal extractors for use in explosive atmospheres. They are suitable for the removal of air and smoke in medium to long ducts with a maximum temperature of 70°C and for applications where forced ventilation or extraction is required.
References Manufacturer: CB-2302MEX,CB-2302TEX,CB-2402MEX,CB-2402TEX
CTM0011
Data sheet
- Warranty
- 2¨
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIB
- Certificats
- ATEX
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 250 X
- New

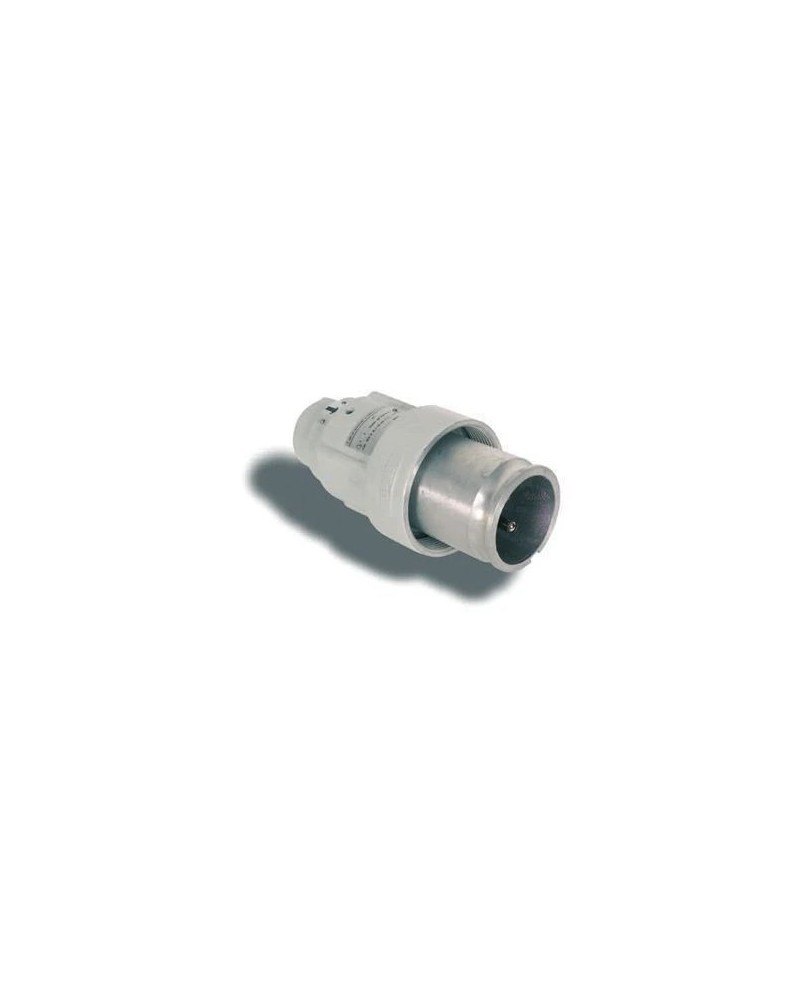

ATEX AP series
- Group IIC- Zone 1, 2, 21, 22
- Aluminum alloy
- Ergonomic-
- Sheets can be used with industrial sockets
- Aluminum alloy
- Ergonomic-
- Sheets can be used with industrial sockets
The AP series sheets are built under three or four pin models plus the earth. The unit is energized by introducing and turning the plug at 45°, which has the effect of acting on the internal switch and preventing the formation of arcs between the cells and the pins.
References Manufacturer: AP-4125,AP-5125
CTM0002
Data sheet
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Certificats
- ATEX.IECEx
- Certificat_ATEX-fr_FR
- CESI 14 ATEX 017X
- Certificat_IECEx-fr_FR
- CES 11.0011X
- New
LED ATEX LED Obstacle Tag XLFE-LIB Series
- Zone 1, 2, 21, 22
- Medium intensity obstruction warnings Type B
- LED technology
- Lifetime greater than 10 years
- OACI compliant, FAA
- Medium intensity obstruction warnings Type B
- LED technology
- Lifetime greater than 10 years
- OACI compliant, FAA
The low intensity XLFE-LIB lights are intended to be installed on high towers or buildings as barrier signaling devices during the night. Of red and light intensity greater than 32 candelas, they comply with ICAO standards (international civil aviation organization), Annex 14, for low-intensity air-intensity air barrier signal lamps (corresponding to the type FAA carrying the acronym L-810). The signaling lights of low-intensity type B obstacles are for low extension constructions and have a height above the soil below 45 meters. The XLFE-LIB can also be provided to meet the requirements of low intensity aerial barrier traffic lighting lamps, since it meets photometric and light intensity requirements, and for industrial signaling, with operation in Flashing modality and with different light colors on request.
References Manufacturer: XLFE-LIB-R230F
CTM0106
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/21/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML 19 ATEX 1333X
- Certificat_IECEx-fr_FR
- IECEx CML 19.0102X
- Couleurs corps
- Gris RAL 7035
- Indicateur LED
- 1¨
- New
ATEX SERIES EPC5 SERIES BASE
- IIC Group
- Zone 1, 2, 21, 22
- Aluminum alloy
- Ergonomic
- The cards can be used with industrial sockets
- Zone 1, 2, 21, 22
- Aluminum alloy
- Ergonomic
- The cards can be used with industrial sockets
The EPC power outlets, having a capacity of 63 to 125 A, particularly respond to the supply of welders, compressors, generators and large moving devices in general. The switch can only be closed when the switch is in the "open" position.
References Manufacturer: EPC1-1P125B, EPC1-1P63B, EPC1-1Q125B, EPC1-1Q63B, EPRC1-1P125B, EPRC1-1P63B, EPRC1-1Q125B, EPRC1-1Q63B
CTM0046
Data sheet
- Ambiant temperature
- -20°C à + 50°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.INMETRO
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CESI 14 ATEX 017X
- Certificat_IECEx-fr_FR
- CES 11.0011X
- Couleurs corps
- RAL7035
- New
Order station EFDC Anti-Detail Series
- IIC Group
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
The control and control units of the EFDC series are provided for the control and signaling of equipment, whether on board the machine or remote, and are used in the chemical, petrochemical and pharmaceutical industries and wherever the equipment explosions are needed. One of the features of these desks is the ability to apply up to four operators on their lid.
Manufacturer References: efdc-20, efdc-20/20, efdc-20/21, efdc-20/22, efdc-20/23, efdc-20/24, efdc-20/25, efdc -20 / 27, EFDC-21, EFDC-21/21, EFDC-21EM, EFDC-21EM, EFDC-21EmCV1, EFDC-21EmCV2, EFDC-21EMR, efdc-21mrv1, efdc-21Emrv2, efdc-21Emv, efdc-22, efdc-22/21, efdc-22/22, efdc-22/25, efdc-23, efdc-23/21, efdc-23/22, efdc-23/23, efdc-23/24, efdc-23/25, efdc-24, efdc-24/21, efdc-24/22, EFDC-24/24, EFDC-24/25, EFDC-25, EFDC-25/21, EFDC-25/25, EFDC-27, EFDC-27/21, EFDC-27/22, EFDC-27/23, EFDC-27/24, EFDC-27/25, EFDC-27/27, EFDC-28, EFDC-28/20, EFDC-28/21, EFDC-28/22, EFDC-28/23, EFDC-28/24, EFDC-28/25, EFDC-28/27, EFDC-28/28, EFDC-29, EFDC-29/20, EFDC-29/21, EFDC-29/22, EFDC-29/23, EFDC-29/24, EFDC-29/25, EFDC-29/27, EFDC-29/28, EFDC-29/29, EFDC-30, EFDC-30/20, efdc-30/21, efdc-30/22, efdc-30/23, efdc-30/24, efdc-30/25, efdc-30/27, efdc-30/28 EFDC-30/29 efdc-30/30 efdc-31, efdc-31/20, efdc-31/21, efdc-31/22, efdc-31/23, efdc-31/24, EFDC-31/25, efdc-31/27, efdc-31/28, efdc-31/29, efdc-31/30, efdc-31/31, efdc-32, efdc-32/20, efdc-32/21, efdc-32/22, efdc-32/23, efdc-32/24, efdc-32/25, efdc-32/27, efdc-32/28, efdc-32/29, efdc-32/30, efdc-32/31, efdc-32/32, efdc-33, efdc-33/20, efdc-33/21, efdc-33/22, efdc-33/23, efdc-33/24, efdc-33/25, efdc-33/27, efdc-33/28, efdc-33/29, efdc-33/30, efdc-33/31, efdc-33/32, efdc-33/33, efdc-34, efdc-34/20, efdc-34/21, efdc-34/22, efdc-34/23, efdc-34/24, efdc-34/25, efdc-34/27, efdc-34/28, efdc-34/29, efdc-34/30, efdc-34/31, efdc-34/32, efdc-34/33, efdc-34/34
CTM0035
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 092 X
- Certificat_IECEx-fr_FR
- CES 17.0001X
- Couleurs corps
- RAL7035
- New
CTB Series Stainless Steel Bypass Box
- Zones 1, 2, 21, 22
- 316 L Power Junction Boxes Electropoli
- 25 different sizes
- Acid-resistant seal and high temperatures
- IK10 mechanical strength
- IP66
The CTBE series business models are made of stainless steel and are suitable for use in areas where the atmosphere is particularly aggressive or saline, in electrical installations as augmented and / or intelligent security boxes. They can be supplied with multipolar terminals or with modular terminal blocks. In accordance with the regulations in force, the bores can only be carried out by Cortem.
References Manufacturer: CTBE121208, CTBE151208, CTBE151509, CTBE191509, CTBE191910, CTBE221513, CTBE262610, CTBE262616, CTBE262620, CTBE301410, CTBE302310, CTBE303010, CTBE303016, CTBE303020, CTBE381612, CTBE382610, CTBE382616, CTBE382620, CTBE402513
CTM0026
Data sheet
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.INMETRO
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 333
- Certificat_IECEx-fr_FR
- CES 13.0001
- New
Centrifugal Extractor ATEX Series CS
- Zone 1, 2
- Large volumes of air and non-dusty smoke
- Low noise level
- Large volumes of air and non-dusty smoke
- Low noise level
Centrifugal vacuums responding to use in explosive atmospheres. They are suitable for exposing large volumes of air and non-dusty smoke in conduits. They have a low noise level.
References Manufacturer: CS-3104MEX, CS-3104TEX, CS-3204MEX, CS-3204TEX, CS-3304TEX, CS-3504TEX, CS-3504TEX, CS -3604tex
CTM0018
Data sheet
- Temperature class
- T3
- Warranty
- 2¨
- Feed
- 100-240V AC
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIB
- Certificats
- ATEX
- Matière
- Tôle d'acier avec revêtement époxy anticorrosion
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 250 X (O.ERRE)
- Entrée(s) de câble
- 2xM20
- New
CCA deflator bypass box
- Group IIC
- 4 different sizes
- Cover equipped with hinges for the body coupling system with cylindrical joint
- IP66
- 4 different sizes
- Cover equipped with hinges for the body coupling system with cylindrical joint
- IP66
CCAI series enclosures are installed in industrial installations presenting explosion and fire hazards, with the presence of combustible dust and IIC category gases classified as Zone 1, 2, 21, 22. These cases are made of stainless steel welded sheet 316L, with stainless steel screws and a seal on the perimeter between the body and the silicone lid, guaranteeing IP66 protection. CCICs are mainly used to connect cables with associated bypass terminals, such as fuse housings, transformers, ballasts, as control and signalling panels, lighting distribution and motor power or engine starters, with different configurations that can be customized for our customers worldwide. The CCAIF and CCAIF...H series enclosures are equipped with screwed lids, with or without portholes.
References Manufacturer: CCA-02EH,CCA-03C,CCA-03E,CCA-03EH,CCA-04C,CCA-04E,CCA-04E,CCA-0C,CCA-0C,CCA-0E,CCA-0EH,CCAI2020,CCAI3020,CCAI30,CCAI4030,CCAIF20,CCAIF2020H,CCAIF3020,CCAIF30H,CCAIF4030H
CTM0014
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.INMETRO
- Fréquence (Hz)
- 50/60hz
- Matière
- Acier inoxydable 316L
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 034U
- Certificat_IECEx-fr_FR
- CES 16.0015X
- New
ATEX SERIES FIP
- IIC Group
- Zone 1, 2, 21, 22
- Aluminum alloy
- Ergonomic
- The cards can be used with industrial sockets
- Zone 1, 2, 21, 22
- Aluminum alloy
- Ergonomic
- The cards can be used with industrial sockets
FP Series cards are built under 2-pole models or 3 poles plus Earth.
References Manufacturer: FP-23, FP-24
CTM0056
Data sheet
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.INMETRO
- Certificat_ATEX-fr_FR
- CESI 14 ATEX 017X
- Certificat_IECEx-fr_FR
- CES 11.0011X
- New
EJB Series New Screening Box
- IP66,67
- ambient temperature -20 ° C to + 40 ° C
- Group IB + H2.
- Fusion hinges (except EJB-1).
- Available with a porthole or with a window for displaying analog or numeric instruments.
- ambient temperature -20 ° C to + 40 ° C
- Group IB + H2.
- Fusion hinges (except EJB-1).
- Available with a porthole or with a window for displaying analog or numeric instruments.
The EJB series boxes can be installed in all areas of an installation where there is a risk of explosion and / or fire, which are classified as zone 1, 2, 21, 22. The quality of this product is recognized and appreciated around the world due to the world. Aluminum alloy used for its manufacture and mechanical characteristics of the finish. The EJB series is mainly used as a carrier of terminal blocks and as omnibus bars, fuse holders, transformers, ballasts, barriers, but also for the realization of control and signaling tables, distribution tables of lighting, motor force and Voltage unloaders, engine bootboards, with different configurations that can be customized for our customers around the world.
References Manufacturer: EJB-01, EJB-1, EJB-1/1005, EJB-1/1008, EJB-1/1508, EJB-1A, EJB-2, EJB-2/0707, EJB-2/1008, EJB-2/1808, EJB-2 / 1W0, EJB-2/2508, EJB-2A, EJB-3, EJB-3/1006, EJB-3/1510, EJB-3/1515, EJB-3 / 1W0, EJB-3/2015, EJB-3A, EJB-3B, EJB-3B / 1005, EJB-3B / 1106, EJB-3B / 1510, EJB-3B / 1W0, EJB-3B / 2015, EJB-3BA, EJB-4, EJB-4/1005, EJB-4/1212, EJB-4/1508, EJB-4/1510, EJB-4 / 1W0, EJB-4 / 1W2, EJB-4/2010, EJB-4/2015, EJB-4 / 2W0, EJB-4/3020, EJB-45, EJB-45 / EJB-45/1008, EJB-45/1008, EJB-45/1010, EJB-45/1508, EJB-45/2015, EJB-45/2508, EJB-45/3020, EJB -45B, EJB-45B / 0707, EJB-45B / 1005, EJB-45B / 1010, EJB-45B / 1510, EJB-45B / 1510, EJB-45B / 1515, EJB- 45B / 1814, EJB-45B / 2010, EJB-45B / 2015, EJB-45B / 2020, EJB-45B / 2315, EJB-45B / 3020, EJB-48BA, EJB-4B, EJB-4B / 1005, EJB-4B / 1006, EJB-4B / 1008, EJB-4B / 1010, EJB-4B / 1508, EJB-4B / 1510, EJB-4B / 1706, EJB-4B / 1W0, EJB-4B / 1W2, EJB-4B / 2010, EJB-4B / 2W0, EJB-4B / 3020, EJB-5, EJB-5/0707, EJB-5/1010, EJB-5/1508, EJB-5/1510, EJB-5/1515, EJB-5 / 1W0, EJB-5 / 1W2, EJB-5 / 1W3, EJB- 5/2010, EJB-5/2015, EJB-5/2315, EJB-5 / 2W0, EJB-5/3020, EJB-503, EJB-503 / 1W0, EJB-503 / 1W2, EJB-503 / 2W0, EJB-503/3020, EJB-55, EJB-55/1010, EJB-55/2010, EJB-55/2620, EJB -55 / 2710, EJB-55/3020, EJB-55B, EJB-5B, EJB-5B / 1006, EJB-5B / 1508, EJB-5B / 1515, EJB-5B / 1W0, EJB-5B / 1W2, EJB-5B / 1W3, EJB-5B / 2010, EJB-5B / 2015, EJB-5B / 2W0, EJB- 5B / 3020, EJB-6, EJB-6/1510, EJB-6/2010, EJB-6/2015, EJB-6/3020, EJB-6B, EJB-6B / 0707, EJB-6B / 1510, EJB-6B / 2015, EJB-6B / 3020, EJB-7, EJB-7/2010, EJB-7B, EJB-7B / 0505, EJB-7B / 1010, EJBE- 4B, EJBE-5, EJBE-5B, EJBE-6, EJBE-6B
CTM0037
Data sheet
- Ambiant temperature
- -20°C to +60°C
- Temperature class
- T5
- Warranty
- 2¨
- Feed
- 24V DC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIB
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CESI 02 ATEX 073X
- Certificat_IECEx-fr_FR
- CES 16.0014X
- Couleurs corps
- Gris RAL 7035
- Entrée(s) de câble
- 1xM20
- Ex e (sécurité augmentée)
- 1
- -20°C à 40°C
- 1
- New
EFSCO control switch
- IIC Group
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
- Zones 1, 2, 21, 22
- Aluminum alloy boxes, stainless steel or cast iron
- Category 2GD or M2
The EFSCO series switches, deviators and switches are rotary type in package 25, 50 and 63 A front-controlled.
References Manufacturer: EFSCO-22, EFSCO-23, EFSCO-24, EFSCO-242, EFSCO-244, EFSCO-26, EFSCO-266, EFSCO-32, EFSCO-33, EFSCO-34, EFSCO-342, EFSCO-344, EFSCO-36, EFSCO-366, EFSCO-42, EFSCO-43, EFSCO-44, EFSCO-442, EFSCO-444, EFSCO-46, EFSCO-466, EFSCO-62, EFSCO-63, EFSCO-64, EFSCO-642, EFSCO-66
CTM0036
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- max. 500 V AC. 250V DC
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CESI 01 ATEX 092 X
- Certificat_IECEx-fr_FR
- CES 17.0001X
- Couleurs corps
- RAL7035
- Entrée(s) de câble
- 1xM20
- New
SB Series Sbkanding Anti-Flaving Junction Case
- IIC Group.
- Wide variety of models
- Screw cover with Ergot for safety lock
- IP66 / 67
- Wide variety of models
- Screw cover with Ergot for safety lock
- IP66 / 67
The S series housings are made of ALUMINUM ALLOY OR STAINLESS STEEL AISI316L and are used for the passage of cables also having multipolar terminals as modular terminal blocks. The vast range that is proposed allows to meet the specific requirements that emanate from customers and can be installed in areas classified as zone 1, 2, 21, 22. The construction characteristics of the series S series allow them to withstand operating temperatures comprises between -40 ° C and + 150 ° C Depending on their size, the type of seal used and the terminals used.
References Manufacturer: SB-14, SB-24, SB-26, SB-36, SB-59, SB-69, SC-14.1, SC-14.1n, SC-14.1NV, SC-14.1V, SC-16.1, SC- 16.1N, SC-16.1NV, SC-16.1V, SC-24.1, SC-24.1N, SC-24.1NV, SC-24.1V, SC-26.1, SC-26.1N, SC-26.1NV, SC-26.1V, SC-29.1, SC -29.1n, SC-29.1NV, SC-29.1V, SC-36.1, SC-36.1N, SC-36.1NV, SC-36.1V, SC-39.1NV, SC-39.1V, SC-59, SC-59.1N, SC-59.1NV, SC-59.1V, SC-69.1, SC-69.1N, SC-69.1NV, SFC-14.1, SFC-14.1n, SFC- 14.1NV, SFC-14.1V, SFC-16.1, SFC-16.1n, SFC-16.1NV, SFC-16.1V, SFC-24.1, SFC-24.1N, SFC-24.1NV, SFC-24.1V, SFC-26.1, SFC-26.1n, SFC-26.1NV, SFC-26.1V, SFC-29.1, SFC-29.1n, SFC-29.1NV, SFC-29.1V, SFC-36.1, SFC-36.1n, SFC-36.1NV, SFC-36.1V, SFC-39.1, SFC-39.1n, SFC-39.1NV, SFC-39.1V, SFC- 59.1, SFC-59.1N, SFC-59.1NV, SFC-59.1V, SFC-69.1, SFC-69.1N, SFC-69.1NV, SFC-69.1V, SFL -14.1, SFL-14.1n, SFL-14.1NV, SFL-14.1V, SFL-16.1, SFL-16.1N, SFL-16.1NV, SFL-16.1V, SFL-24.1, SFL -24.1n, SFL-24.1NV, SFL-24.1V, SFL-26.1, SFL-26.1n, SFL-26.1NV, SFL-26.1V, SFL-29.1, SFL-29.1N, SFL-29.1NV, SFL-29.1V, SFL-36.1, SFL-36.1N, SFL-36.1NV, SFL-36.1V, SFL-39.1, SFL-39.1n, SFL- 39.1NV, SFL-39.1V, SFL-59.1, SFL-59.1N, SFL-59.1NV, SFL-59.1V, SFL-69.1, SFL-69.1N, SFL- 69.1NV, SFL-69.1V, SFT-14.1, SFT-14.1n, SFT-14.1NV, SFT-14.1V, SFT-16.1, SFT-16.1n, SFT-16.1NV, SFT-16.1V, SFT-24.1, SFT-24.1n, SFT-24.1NV, SFT-24.1V, SFT-26.1, SFT-26.1n, SFT-26.1NV, SFT-26.1V, SFT-29.1, SFT-29.1n, SFT-29.1NV, SFT-29.1V, SFT-36.1, SFT-36.1n, SFT-36.1NV, SFT-36.1V, SFT-39.1, SFT-39.1n, SFT-39.1NV, SFT-39.1V, SFT-59.1, SFT-59.1N, SFT-59.1NV, SFT-59.1V, SFT-69.1, SFT-69.1N, SFT-69.1NV, SFT-69.1V, SFX-14.1, SFX-14.1N, SFX-14.1NV, SFX-14.1V, SFX-16.1, SFX- 16.1n, SFX-16.1NV, SFX-16.1V, SFX-24.1, SFX-24.1n, SFX-24.1NV, SFX-24.1V, SFX-26.1, SFX-26.1n, SFX -26.1NV, SFX-26.1V, SFX-29.1, SFX-29.1n, SFX-29.1NV, SFX-29.1V, SFX-36.1, SFX-36.1N, SFX-36.1NV, SFX-36.1V, SFX-39.1, SFX-39.1n, SFX-39.1NV, SFX-39.1V, SFX-59.1, SFX-59.1N, SFX-59.1NV, SFX- 59.1V, SFX-69.1, SFX-69.1N, SFX-69.1NV, SFX-69.1V, SL-14.1, SL-14.1N, SL-14.1NV, SL-14.1V, SL-16.1, SL -16.1n, SL-16.1NV, SL-16.1V, SL-24.1, SL-24.1N, SL-24.1NV, SL-24.1V, SL-26.1, SL-26.1N, SL-26.1NV, SL-26.1V, SL-29.1 SL-29.1N, SL-29.1NV, SL-29.1V, SL-36.1, SL-36.1n, SL-36.1NV, SL-36.1V, SL-39.1, SL-39.1n, SL-39.1NV, SL-39.1V, SL- 59.1, SL-59.1N, SL-59.1NV, SL-59.1V, SL-69.1, SL-69.1N, SL-69.1NV, SL-69.1V, SSC-14.1, SSC-14.1n, SSC-14.1NV, SSC-14.1V, SSC-16.1, SSC-16.1N, SSC-16.1NV, SSC-16.1V, SSC-24.1, SSC-24.1n, SSC- 24.1NV, SSC-24.1V, SSC-26.1, SSC-26.1n, SSC-26.1NV, SSC-26.1V, SSC-29.1, SSC-29.1n, SSC-29.1NV, SSC-29.1V, SSC-36.1, SSC-36.1n, SSC-36.1NV, SSC-36.1V, SSC-39.1, SSC-39.1n, SSC-39.1NV, SSC-39.1V, SSC-59.1, SSC-59.1N, SSC-59.1NV, SSC-59.1V, SSC-69.1, SSC-69.1N, SSC-69.1NV, SSC- 69.1V, ST-14.1, ST-14.1N, ST-14.1NV, ST-14.1V, ST-16.1, ST-16.1N, ST-16.1NV, ST-16.1V, ST-24.1, ST-24.1N, ST-24.1NV, ST-24.1V, ST-26.1, ST-26.1N, ST-26.1NV, ST-29.1V, ST-29.1, ST-29.1N, ST-29.1NV, ST-29.1V, ST-36.1, ST-36.1N, ST-36.1NV, ST-36.1V, ST-39.1, ST-39.1N, ST-39.1NV, ST-59.1V, ST-59.1, ST-59.1N, ST-59.1NV, ST-59.1V, ST-69.1, ST-69.1N, ST-69.1NV, ST-69.1V, SWS-16, SWS-16/20, SWS-26, SWS-26/21, SX-14.1, SX-14.1n, SX-14.1NV, SX-14.1V, SX- 16.1, SX-16.1n, SX-16.1NV, SX-16.1V, SX-24.1, SX-24.1n, SX-24.1NV, SX-24.1V, SX-26.1, SX-26.1n, SX- 26.1NV, SX-26.1V, SX-29.1, SX-29.1n, SX-29.1NV, SX-29.1V, SX-36.1, SX-36.1n, SX-36.1NV, SX-36.1V, SX- 39.1, SX-39.1n, SX-39.1NV, SX-39.1V, SX-59.1, SX-59.1N, SX-59.1NV, SX-59.1V, SX-69.1, SX-69.1n, SX-69.1NV, SX-69.1V
CTM0097
Data sheet
- Ambiant temperature
- -40°C à +40℃
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- 220V/380/400/440V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CESI 03 ATEX 059U
- Certificat_IECEx-fr_FR
- IECEx CES 15.0012U
- Couleurs corps
- Gris RAL 7035
- New
ATEX SERIES FSQC Take Base
The FSQC series catches are constructed under models at 2 or 3 poles plus the earth. The power on the unit is done by the introduction of the plug, which acts on the internal switch and does not allow the formation of arcs between the cells and the pins of the socket and the plug.
References Manufacturer: FSQC-23310, FSQC-23315, FSQC-23320, FSQC-23330, FSQC-23340, FSQC-23350, FSQC-23363, FSQC-23410, FSQC-23415, FSQC-23420, FSQC-23430, FSQC-23440, FSQC-23450, FSQC-23463, FSQC- 33310, FSQC-33315, FSQC-33320, FSQC-33330, FSQC-33340, FSQC-33350, FSQC-33363, FSQC-33410, FSQC-33415, FSQC-33420, FSQC-33430, FSQC-33440, FSQC-33450, FSQC-33463
CTM0057
Data sheet
- Ambiant temperature
- -20°C à + 50°C
- Temperature class
- T6
- Warranty
- 2¨
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CESI 14 ATEX 017X
- Certificat_IECEx-fr_FR
- CES 11.0011X
- Couleurs corps
- RAL7035
- New
EJBC Series EJBC New Screening Box
- IIC Gas Group
- IP 66/67
- Stainless steel hinges
- available with a porthole or with a window for displaying analog or digital instruments
- IP 66/67
- Stainless steel hinges
- available with a porthole or with a window for displaying analog or digital instruments
The boxes of the EJBC series have been carefully designed for installation in areas with explosion and / or fire risks due to the presence of all gases belonging to the IIA - IIB - IIC group, which are classified as zone 1, 2, 21, 22. The special multiple seal, having been achieved through high quality and high-precision machining, extended gas protection to the IIC group [acétylène (C2H2 ), bisulfure de carbone, hydrogène (H2)].
References Manufacturer: EJBC-45, EJBC-45B, EJBC-5, EJBC-5B
CTM0108
Data sheet
- Ambiant temperature
- -60°C à +150°C
- Temperature class
- T6
- Warranty
- 2¨
- Feed
- 24V DC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/2
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex d (antidéflagrant)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- EPT 20 ATEX 4074 U
- Certificat_IECEx-fr_FR
- EPT 20 ATEX 4074 U
- Taille de filetage
- M20
- Couleurs corps
- RAL7035
- Entrée(s) de câble
- 1xM20
- Type de filetage
- ISO
- Gris RAL 7035
- 1
- -50 °C à 150 °C
- 1
