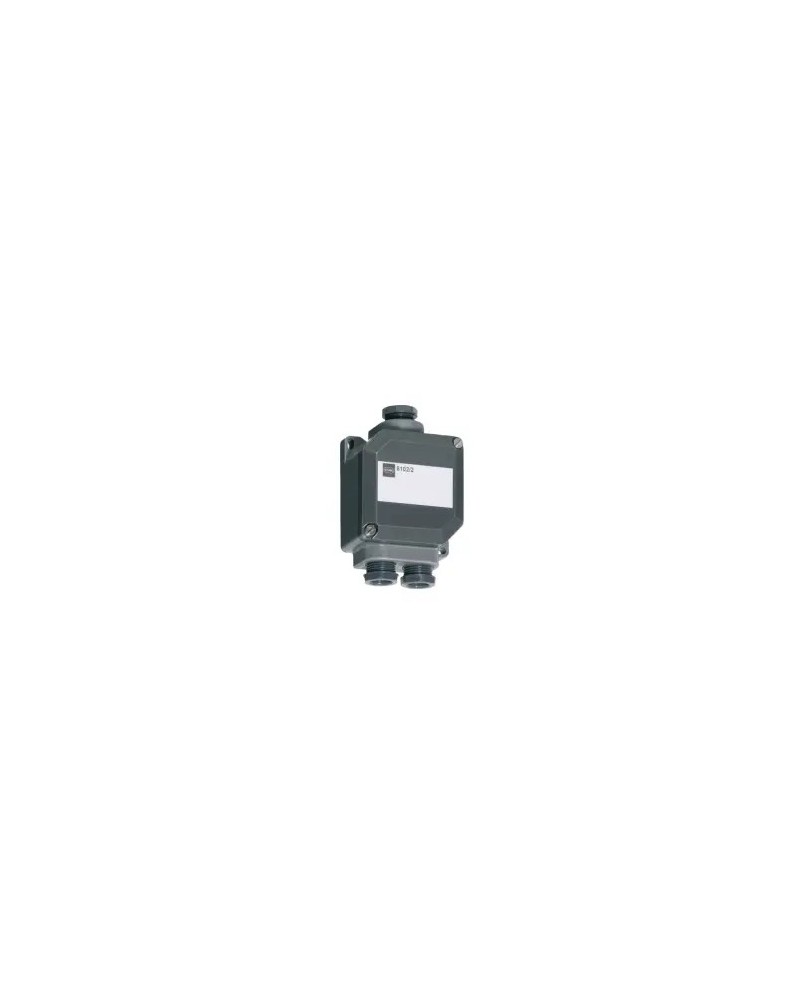

ATEX JUNCTION BOX 8102
- REDUDED SWEET EX E E E CASE FOR ELECTRIC POWER DISTRIBUTION
- degree of protection IP66
- Equipped with 4 terminals with shirt and 1 PE connection
- Available with semi-fittings or plastic cable glands
- degree of protection IP66
- Equipped with 4 terminals with shirt and 1 PE connection
- Available with semi-fittings or plastic cable glands
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8102 series bypass boxes are reduced ex e e e e-tube designed to distribute electrical energy in ATEX zones. They are made of polyester resin reinforced with fiberglass and therefore extremely robust. The bypass box is equipped with 5 shirt terminals, one of which is used as the PE connection. The clamping range of the shirt terminals is 2 x 4 mm².
References Manufacturer: 132988,132989,218559,132979,132975,132973,261597
| Ambiant temperature | -50°C to +55°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | 690v |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | UV resistant reinforced polyester (GRP) |
| Certificat_atex-en_us | PTB 01 ATEX 1136 |
| Certificat_iecex-en_us | IECEX PTB 15.0010 |
| Threading size | M20 |
| Body colors | Dark gray |
| Electrical intensity | 25a |
| Maximum voltage | 690v |
| Configuration | 5 x 4 mm² shirt terminals |
| Cable entry (s) | 3xm20 |
| Ex i (intrinsic safety) | 1 |
| Reinforced polyester (GRP) | 1 |
| -40 ° C to + 40 ℃ | 1 |
