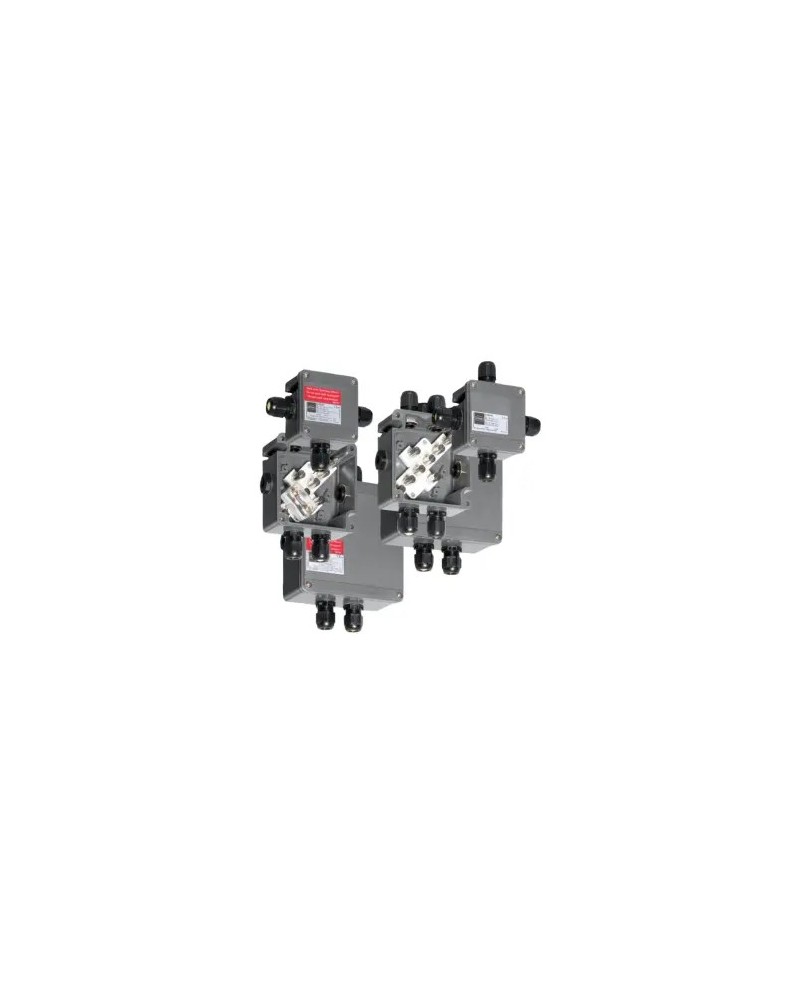

ATEX Series 8118 bypass box with shirt terminals
- Ex e diversion box
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -60 ° C
- Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), Korea (KTL), IECEX (PTB), India (Peso)
- Introduction 1: 2 x 8161/7-M20-1304-LT (bulk gasket)
- Introduction 2: 1 x 8290/3-M20 (bulk seal)
- Introduction 3: bulk seal
- Terminals Type 1: 4 x Shirt terminal 4 mm²
- Maximum ambient temperature: +40 ° C
- Minimum ambient temperature: -60 ° C
- Certificates: ATEX (PTB), Brazil (ULB), China (NEPSI), Korea (KTL), IECEX (PTB), India (Peso)
- Introduction 1: 2 x 8161/7-M20-1304-LT (bulk gasket)
- Introduction 2: 1 x 8290/3-M20 (bulk seal)
- Introduction 3: bulk seal
- Terminals Type 1: 4 x Shirt terminal 4 mm²
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 8118 series junction boxes are equipped according to the client specifications of different series terminals as well as plastic or metal cable glands; If necessary also with protection fuses. They are available in 3 sizes and made of fiberglass reinforced polyester resin (GRP).
References Manufacturer: 133077,133248,133078,133114,133120,133126,133186,133252,223876,13191,133190, 133253,133220,202991,133210,249,133084,179,133084,179,18006,19,218006,13178
| Ambiant temperature | -60 ° C to + 40 ° C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Feed | max. 500 V AC. 250V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | Atex.iecex |
| Material | Reinforced polyester (GRP) |
| Certificat_atex-en_us | PTB 99 ATEX 3103 |
| Certificat_iecex-en_us | IECEX PTB 06.0026 |
| Threading size | M20 |
| Body colors | Dark gray |
| Cable entry (s) | 1xm20 |
| UV-resistant polycarbonate | 1 |
| Ex i (intrinsic safety) | 1 |
| -40 ° C to + 75 ° C | 1 |
