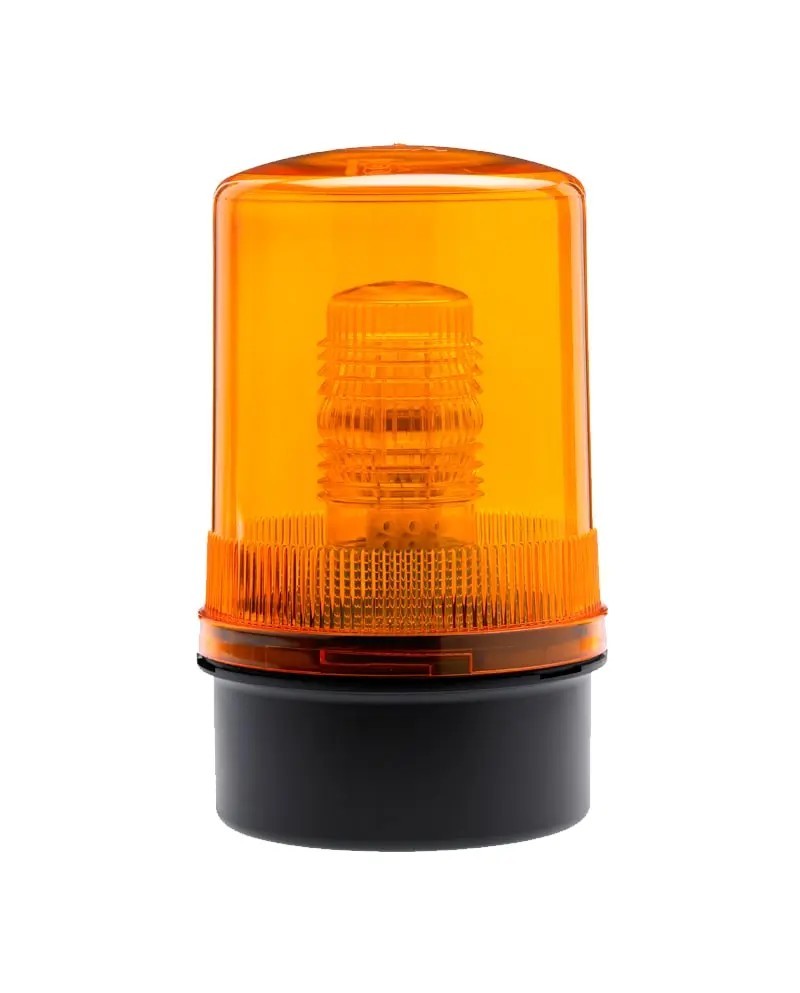

FLASH XENON X200 FLASH FIRE

- Rated continuously
- High bright yield
- X201 / 200: Suitable for surface mounting, in a conduit box or wall
- Optional wall and protection media - See accessories
- Fixing in 2 points
- 360 ° lighting around the vertical axis
- 180 ° lighting above the horizontal axis
- Resistant to dust and bad weather
- Polycarbonate lens stable UV
- Plastic Base ABS Stable UV
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



X201-200 / KMX 200 Series (10 Joules) Single or Double Xenon Industrial Fires Flashing The X201-200 series is suitable for general industrial safety and signaling applications that require a more robust and powerful signal. Xenon tags (sometimes called stroboscopes) are controlled by a printed circuit and emit a very bright white light flash, and very bright in ionizing and then discharging an important current through the xenon gas. The design allows a termination inside the housing. This range of tags integrates an internal Fresnel lens designed to maximize the light intensity and has a double flash option (activated by a slide switch on the printed circuit circuit) extending the duration of the signal, making it more perceptible to the human eye. The CC unit is set at the factory on 24 V, but a zipper on the printed circuit board makes it possible to operate it in 12 V.
References Manufacturer: 67381,67382,67383,67384.67385.67311,67312,67313,67314,67315, 67321,67322,67323,67324,67325,67331,67332,67333,67334,67335
Feed 12V AC/DC
Protection étanchéité (IP) IP65
Application/Usage Industrie
Certificats CE
Fréquence (Hz) 50/60hz
Matière PC/ABS
Indicateur LED
Reference MOF0082
