Industrial LED and Navy LED Series LED701 / 700 -A2S Series

Industrial LED and Marine LED Series LED701 / 700

Name: Industrial LED and Marine LED Series LED701 / 700
Brand: Moflash Signalling
SKU: MOF0109

- Rated continuously
- High bright yield
- Suitable for surface or wall mounting
120 ° of light intensity above the vertical axis
- High ambient temperature
- Bicolor LED option
- Ambient Light Detection Option - Longer life
- Resistant to dust and bad weather
- Polycarbonate lens stable UV
Polycarbonate base stable UV

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

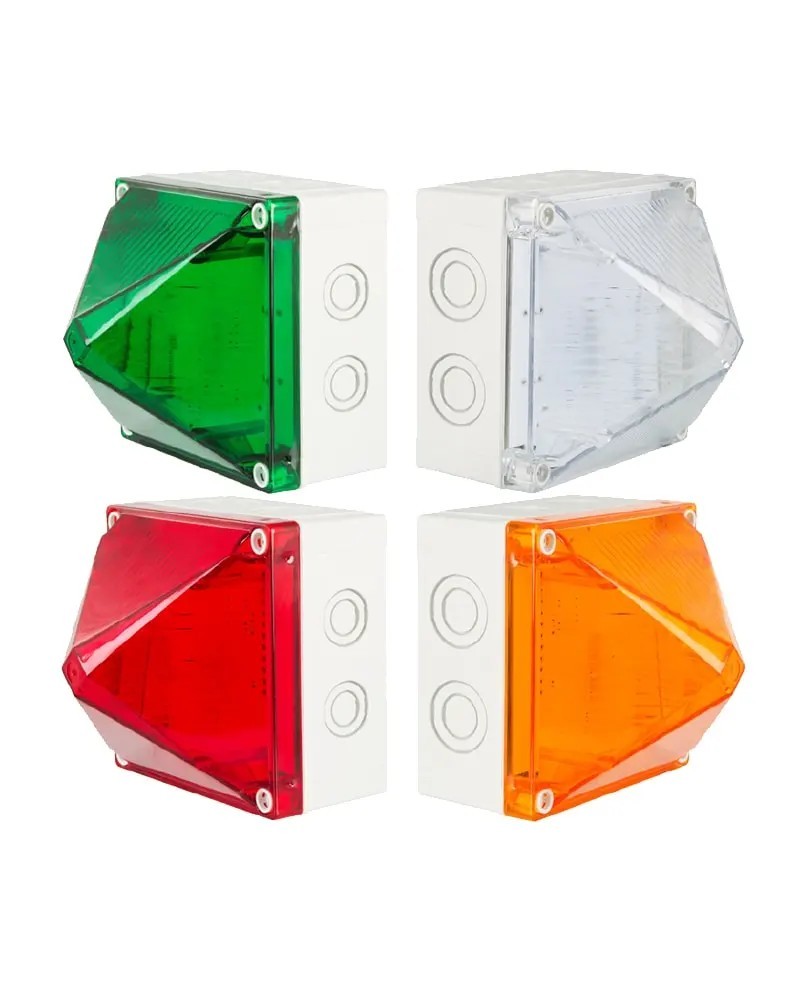

LED701 / 700 Series Industry and Navy Tags The LED701 / 700 series is suitable for industrial and maritime signaling applications where a more powerful visual signal is needed. The unit incorporates 64 long-lasting extra brilliant LEDs and offers a high-performance and low-maintenance signaling solution. These tags have three preselectable alarm levels. A flashing mode at 60 or 120 FPM and a continuous (static) mode. They can be preset using a jumper on the printed circuit board. The design allows a command by a third wire that can switch from continuous mode to preset flashing mode. The termination is done inside the cabinet by duct trips on the sides of the unit and can incorporate M16 cable glands to M32. Cable glands.

References Manufacturer: LED701-02-01, LED701-02, LED701-02-03, LED701-02-05, LED700-05-01, LED700-05-02, LED700-05-03, LED700-05-04, LED700-05-05

Waterproofing protection (IP)	Ip66.ip67
Application / usage	Industry
Certificates	THIS
Frequency (Hz)	50 / 60hz
Material	UV-resistant polycarbonate
Body colors	White
Light source	LED
LED indicator	1¨
