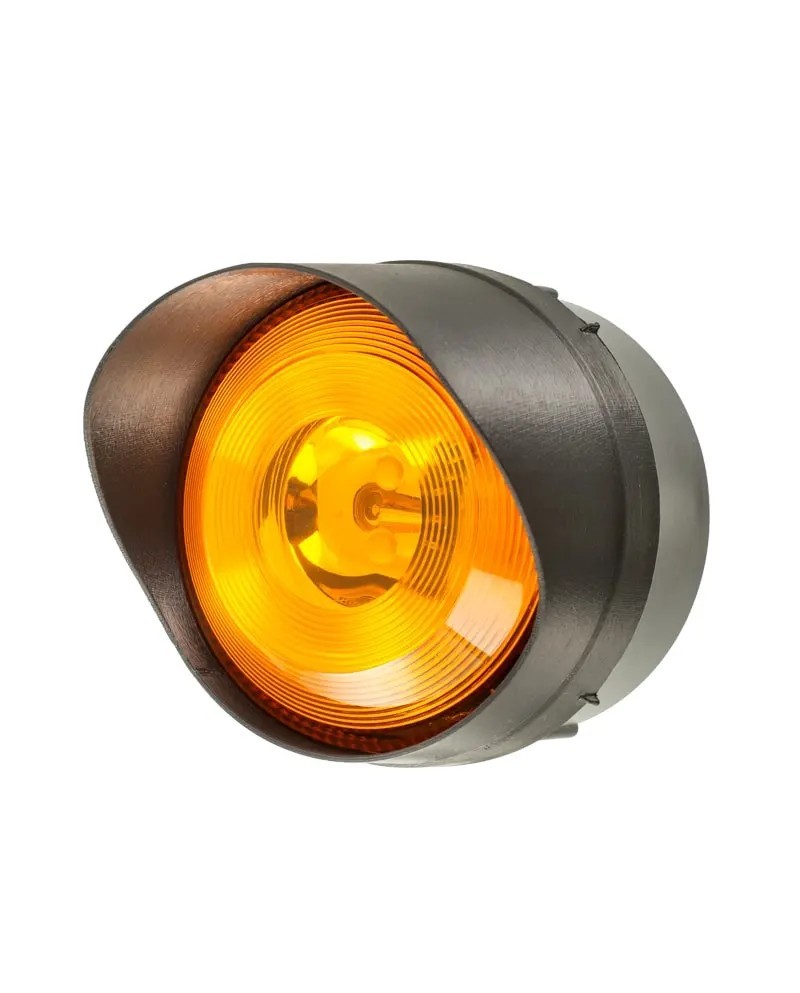

TL LED Series (Surface Mount) / KMLED Industrial LED Traffic The LED-TL series traffic lights (surface mount) were designed for industrial and commercial applications requiring a long-term economic solution and Requiring little maintenance for parking management, traffic control in factories and automated door control systems and portals. Traffic lights are suitable for indoor or exterior applications and incorporate 36 high efficiency LEDs. They can be surface mounted on any flat vertical surface or on a conduit housing and used as a standalone module. The modular design of the traffic lights also allows the installer to pre-assemble multiple units to create a multiple indication lights system. Each unit is delivered as standard with all the components needed for the multiple assembly for surface installation. These units require external input signals or a PLC command to switch the visual indication functions (not supplied). However, the orange light has an optional jumper on the printed circuit board that allows the unit to flash when it is turned on. The termination of the cables is inside the housing and is accessible by the 2 M20 duct trips (up or down) or by the M20 duct inlet at the back.
References Manufacturer: 69801,69802,69804,69806,69807,69811,69812,69814,69816,69817, 69821,69822,69824,69826,69827,69831,69832,69834,69836,69837
- Brand
- Moflash Signalling
- Reference
- MOF0086
- Feed
- 12-48V DC
- Waterproofing protection (IP)
- Ip65
- Application / usage
- Industry
- Certificates
- THIS
- Frequency (Hz)
- 50 / 60hz
- Material
- PC / ABS
- Light source
- LED
- LED indicator
- 1¨
