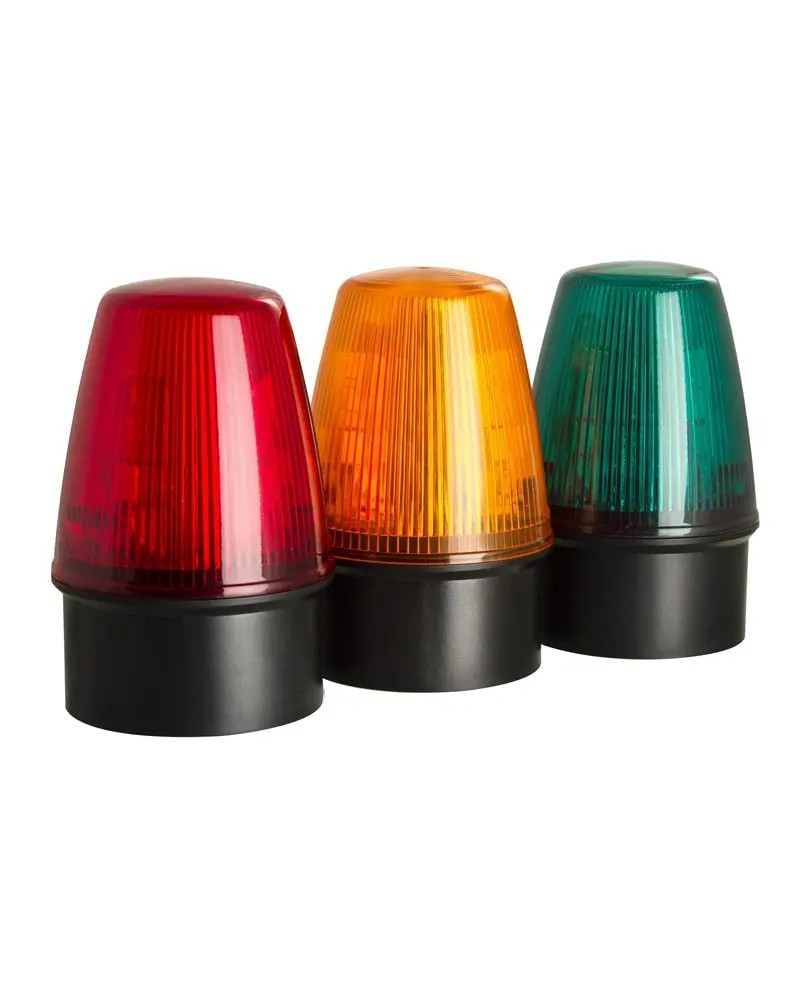

The LED100 Economic Series is suitable for light commercial and industrial signaling applications where a local indication is needed. These tags have two selectable alarm levels, the flashing mode or the continuous mode (static), selectable by a jumper link on the printed circuit. The design also allows the connection of a third wire, which offers the ability to switch from a predefined static mode to a flashing mode. The LED Eco range has been designed primarily to provide a cost-effective solution with more traditional incandescent lamps, whether as part of a new installation or modernization of an existing facility. The design allows a termination inside the housing through the base.
References Manufacturer: 66901.66902.66904.66911, 6692,666922,66924,66931,66932,66934, 66941,66942,66944,66951,66952,66954, 66961.66962,66964.66971,66972,66974
- Brand
- Moflash Signalling
- Reference
- MOF0042
- Feed
- 12-48V DC
- Waterproofing protection (IP)
- Ip65
- Application / usage
- Industry
- Certificates
- THIS
- Frequency (Hz)
- 50 / 60hz
- Material
- ABS
- LED indicator
- 1¨
