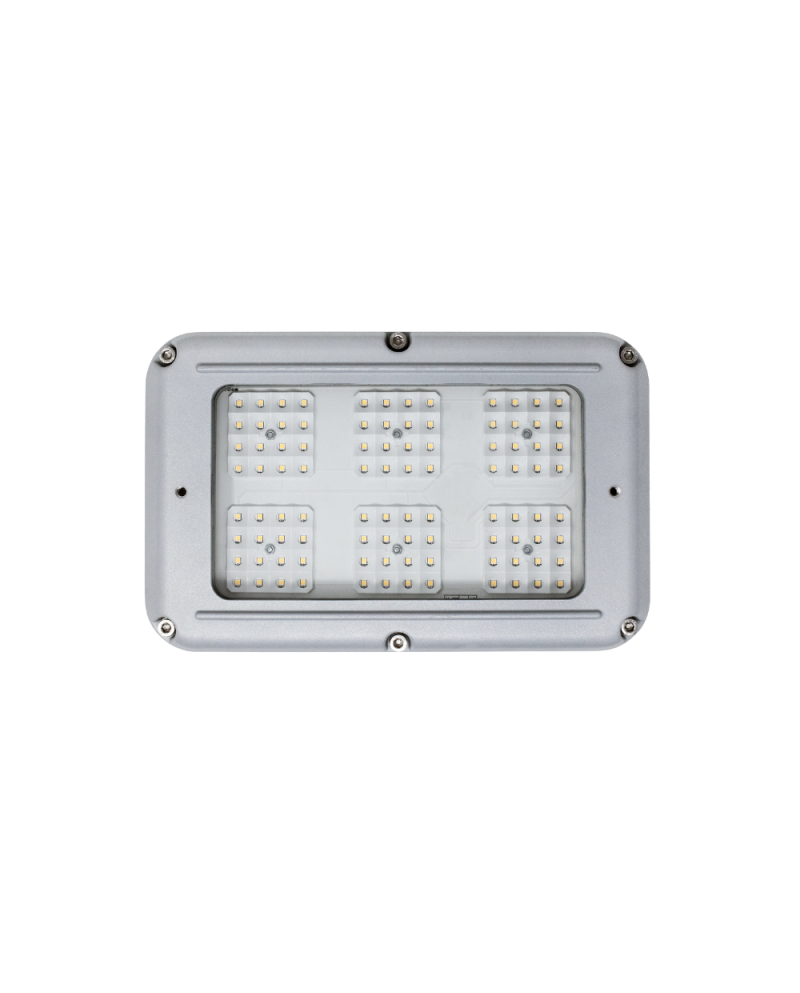

The Spartan Bl24 Zone 2 partition is designed for hazardous areas that require high performance and reliable white lighting. Its compact and discreet design is ideal for applications in restricted spaces and is available with a backup battery. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-BL24-W-1010, SPZ-BL24-W-1010-EMX25, SPZ-BL24-W-3030, SPZ-BL24-W-3030-EMX25, SPZ-BL24- W-5050, SPZ-BL24-W-5050-EMX25, SPZ-BL24-W-8080, SPZ-BL24-W-8080-EMX25, SPZ-BL24-W-120120, SPZ-BL24 -W-120120-EMX25, SPZ-BL24-W-3510, SPZ-BL24-W-3510-EMX25, SPZ-BL24-W-6025, SPZ-BL24-W-6025- EMX25, SPZ-BL24-W-8030, SPZ-BL24-W-8030-EMX25, SPZ-BL24-W-12050, SPZ-BL24-W-12050-EMX25, SPZ-BL24 -W-12050-EMX100-LO-EXI, SPZ-BL24-W-12050-EMX25-EXIT
- Brand
- RAYTEC
- Reference
- RTC0075
- ATEX zone
- Zone 2/22
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- 5 year warranty (s)
- Feed
- 110-254V AC
- Waterproofing protection (IP)
- Ip66.ip67
- Application / usage
- ATEX zone
- Gas class
- IIC
- Certificates
- ATEX.IECEx.UKCA
- Frequency (Hz)
- 50 / 60hz
- Material
- Aluminum Marine Quality
- Certificat_atex-en_us
- CML 17ATEX4231
- Certificat_iecex-en_us
- IECEX CML 17.0135
- Body colors
- Silver (RAL 9006)
- Light source
- LED
- Color temperature
- 6500k
- Power
- 20w
- Light power
- 2500lm
- Cable entry (s)
- 2xm20
- IIB
- 1
- 24w
- 1
- 2750lm
- 1
