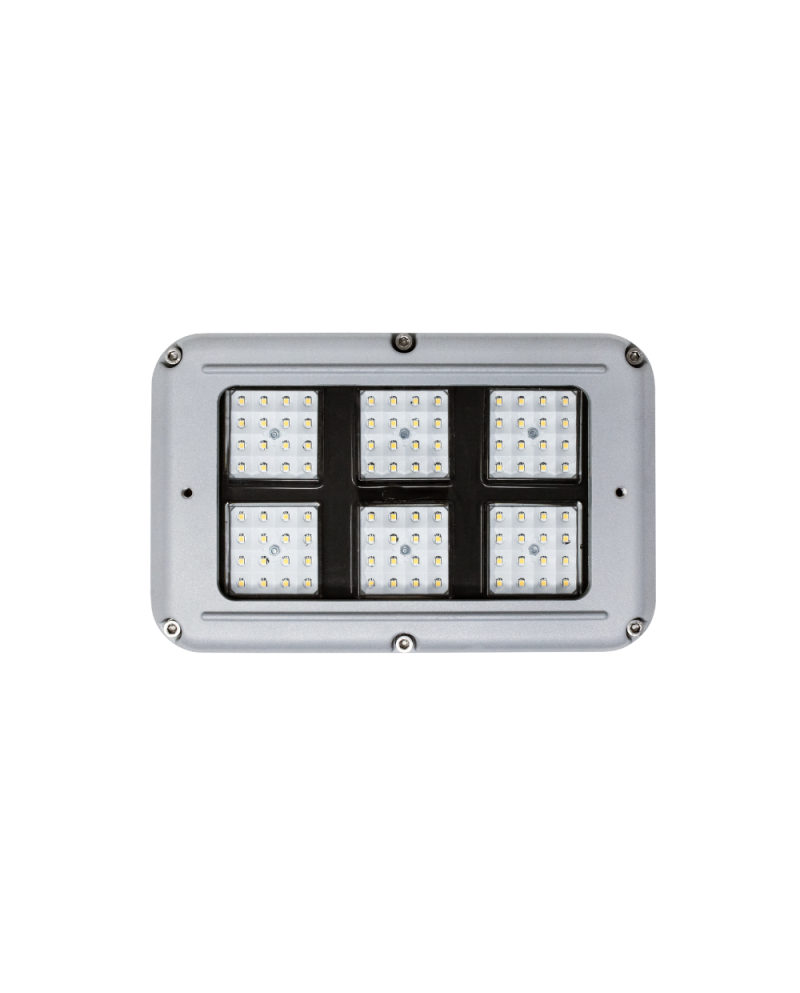

Spartan series BL24 LED series, 1/21 -A2S zone

LED LED Spartan BL24 for Zone 1

Name: LED LED Spartan BL24 for Zone 1
Brand: RAYTEC
SKU: RTC0073
Price: 752.03 EUR
Availability: InStock

€752.03

Tax excluded

- IP66 & 67
- LED ultra long duration and high efficiency
- Exit level Haite Performance 2750 lm
- BASE CONSOMATION (20W)
- Easy installation and maintenance
- Large operating temperature 50 ° C to + 55 ° C
- 5 years warranty

Last items in stock

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Bulkhead range is designed for hazardous areas that require high performance and reliable white light lighting. ATEX LED partition with compact and discreet design, the BL24 Spartan is ideal for applications in restricted spaces and is available with a backup battery. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPX-BL24-W-1010, SPX-BL24-W-1010-EMX25, SPX-BL24-W-3030, SPX-BL24-W-3030-EMX25, SPX-BL24- W-5050, SPX-BL24-W-5050-EMX25, SPX-BL24-W-8080, SPX-BL24-W-8080-EMX25, SPX-BL24-W-120120, SPX-BL24 -W-120120-EMX25, SPX-BL24-W-3510, SPX-BL24-W-3510-EMX25, SPX-BL24-W-6025, SPX-BL24-W-6025- EMX25, SPX-BL24-W-8030, SPX-BL24-W-8030-EMX25, SPX-BL24-W-12050, SPX-BL24-W-12050-EMX25, SPX-BL24 -W-12050-EMX100-LO-EXI, SPX-BL24-W-12050-EMX25-EXIT

Ambiant temperature	-50°C to +55°C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 1/21
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	ATEX.IECEx.UKCA
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	CML 13ATEX3007
Certificat_iecex-en_us	IEC EX CML14.0001
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	6500k
Power	20w
Light power	2500lm
Cable entry (s)	2xm20
Mounting type	Built
24w	1
4250lm	1
