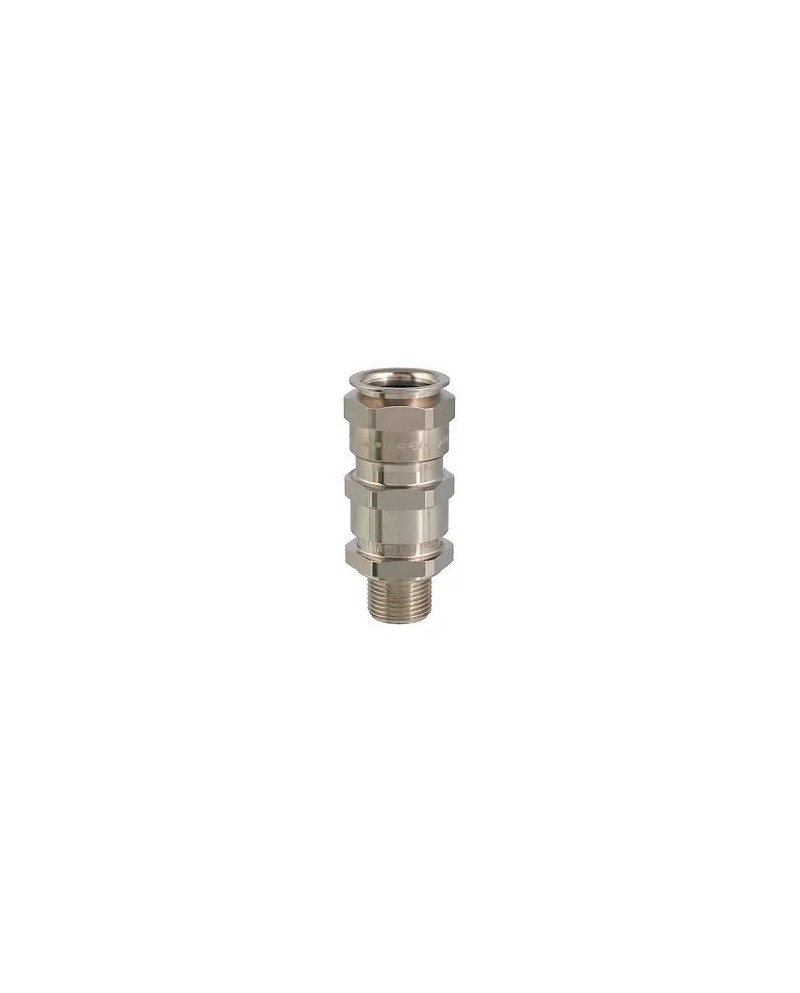

5F cable gland
- ATEX and IECEX certifications
- Many other international certifications
- Usable safely in zones 1, 2, 21 and 22
- High protection index IP66 / IP68
- Wide allowable ambient temperature range
- Mooring of universal armor, inspectable and anti-rotation
- Proven reliability in severe industrial environments
- Available in the form of kits, with associated accessories
- Many other international certifications
- Usable safely in zones 1, 2, 21 and 22
- High protection index IP66 / IP68
- Wide allowable ambient temperature range
- Mooring of universal armor, inspectable and anti-rotation
- Proven reliability in severe industrial environments
- Available in the form of kits, with associated accessories
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The range of cable glands 5F allows the connection of an armed cable by strip, wire or braid. ADE 5F is available in nickel-plated brass or 316L stainless steel, with an ISO or NPT thread. This cable gland can be used for expanded antidoflage applications (ex d) or increased safety (ex e), in dust zones (ex tb) and also in mines (group I M2). The exploratory sealing is provided by a silicone ring on the inner sheath of the cable, supplemented by a second silicone ring on the outer sheath of the cable. Anchoring has an anti-rotation function, it is easy to implement, inspectable and compatible with all types of armor, to efficiently ensure the continuity towards the ground. The operating temperature range is -60 ° C to +140 ° C. For a lead cable, provide a continuity washer (to be ordered as an accessory). As an option, a deluge protection seal strengthens the final sealing of the set for sizes 12 to 17.
References Manufacturer: CAP856404V1, CAP856404V1K1, CAP856409V1, CAP856409V1K1, CAP856409V1K2, CAP856504V1, CAP856504V1K1, CAP856504V1K2, CAP856509V1K1, CAP856509V1K2, CAP856594V1, cap856594v1k1, cap856594v1k2, cap856599v1, cap856599v1k1, cap856599v1k2, cap856604v1, cap856604v1k1, cap856604v1k2, cap856609v1, cap856609v1k1, cap8566674v1, cap856674v1k1, cap856674v1k2, cap856679v1, cap856679v1k1, cap856679v1k2, cap856694v1, cap856694v1k1, cap856694v1k2, cap856699v1, cap856699v1k1, cap856699v1k2, cap856704v1, cap856704v1k1, cap856704v1k2, cap856709v1, cap856709v1k1, cap856774v1, CAP856774V1K1, CAP856774V1K2, CAP856779V1, CAP856779V1K1, CAP856779V1K2, CAP856794V1, cap856794v1k1, cap856794v1k2, cap856799v1, cap856799v1k1, cap856799v1k2, cap856804v1, cap856804v1k1, cap856804v1k2, cap856809v1, cap856809v1k2, cap856894v1, cap856894v1k1, cap856894v1k2, cap856899v1, cap856899v1k1, cap856899v1k2, cap856904v1, cap856904v1k1, cap856904v1k2, cap856909v1, cap856909v1k2, cap856994v1, cap856994v1k1, cap856994v1k2, cap856999v1, cap856999v1k2, cap857004v1, cap857004v1k1, cap857004v1k2, cap857009v1, cap857009v1k1, cap85709v1k2, cap857094v1, CAP857094V1K1, CAP857094V1, CAP857099V1, CAP857099V1K2, CAP857204V1, CAP857204V1DTSK1, CAP857204V1DTSK2, CAP857204V1DTSK3, CAP857204V1K1, CAP857209V1, CAP857209V1DTSK1, CAP857209V1DTSK2, CAP857209V1DTSK3, CAP857209V1K1, CAP857209V1K2, CAP857294V1, CAP857294V1DTSK1, cap857294v1dtsk2, cap857294v1dtsk3, cap857294v1k1, cap857294v1k2, cap857299v1, cap857299v1dtsk1, cap857299v1dtsk2, cap857299v1dtsk3, cap857299v1k1, cap857299v1k2, cap857304v1, CAP857304V1DTSK1, CAP857304V1DTSK2, CAP857304V1DTSK3, CAP857304V1K1, CAP857309V1, CAP857309V1DTSK1, CAP857309V1DTSK2, CAP857309V1DTSK3, CAP857309V1K2, CAP857394V1, CAP857394V1DTSK1, CAP857394V1DTSK2, CAP857394V1DTSK3, CAP857394V1K1, CAP857394V1K2, cap857399v1, cap857399v1dtsk1, cap857399v1dtsk2, cap857399v1dtsk3, cap857399v1k1, cap857399v1k2, CAP857504V1, CAP857504V1DTSK1, CAP857504V1DTSK2, CAP857504V1DTSK3, CAP857504V1K1, CAP857504V1K2, cap857509v1, cap857509v1dtsk1, cap857509v1dtsk2, cap857509v1dtsk3, cap857509v1k1, cap857509v1k2, CAP857594V1, CAP857594V1DTSK1, CAP857594V1DTSK2, CAP857594V1DTSK3, CAP857594V1K1, cap857594v1k2, cap857599v1, cap857599v1dtsk1, cap857599v1dtsk2, cap857599v1dtsk3, cap857599v1k1, CAP857599V1K2, CAP857794V1, CAP857794V1DTSK1, CAP857794V1DTSK2, CAP857794V1DTSK3, cap857794v1k1, cap857794v1k2, cap857799v1, cap857799v1dtsk1, cap857799v1dtsk2, cap857799v1dtsk3, cap857799v1k1, cap857799v1k2, cap858404v1, cap858404v1k1, cap858404v1k2, cap858409v1, cap858409v1k1, cap858409v1k2, cap858504v1, cap858504v1k1, cap858504v1k2, cap858509v1, cap858509v1k1, cap858509v1k2, cap858594v1, cap858594v1k1, cap858594v1k2, cap858599v1, cap858599v1k1, cap858599v1k2, cap858604v1, cap858604v1k1, cap858604v1k2, cap858609v1, cap858609v1k1, cap858609v1k2, cap858674v1, cap858674v1k1, cap858674v1k2, cap858679v1, CAP858679V1K1, CAP858679V1K2, CAP858694V1, CAP858694V1K1, CAP858694V1K2, CAP858699V1, cap858699v1k1, cap858699v1k2, cap858704v1, cap858704v1k1, cap858709v1, cap858709v1k1, cap858709v1k2, cap858774v1, cap858774v1k1, cap858774v1k2, cap858779v1, cap858779v1k1, cap858779v1k2, cap858794v1, cap858794v1k1, cap858794v1k2, cap858799v1, cap858799v1k1, cap858799v1k2, cap858804v1, cap858804v1k1, cap858804v1k2, cap858809v1, cap858809v1k1, cap858809v1k2, cap858894v1, cap858894v1k1, cap858894v1k2, cap858899v1, cap858899v1k1, cap858999v1, cap858904v1, cap858904v1k1, cap858909v1, cap858909v1k1, cap858909v1k2, cap858994v1k1, cap858994v1k2, cap858999v1, cap858999v1k1, cap858999v1k2, cap859004v1, cap859004v1k1, cap859004v1k2, cap859009v1, cap859009v1k1, cap859009v1k2, cap859094v1, cap859094v1k2, cap859099v1, cap859099v1k1, CAP859099K2, CAP859204V1, CAP859204V1DTSK1, CAP859204V1DTSK2, CAP859204V1DTSK3, CAP859204V1K1, CAP859204V1K2, CAP859209V1, CAP859209V1DTSK1, CAP859209V1DTSK2, CAP859209V1DTSK3, CAP859209V1K1, CAP859209V1K2, CAP859294V1, CAP859294V1DTSK1, CAP859294V1DTSK2, CAP859294V1DTSK3, CAP859294V1K1, CAP859294V1K2, CAP859299V1, CAP859299V1DTSK1, CAP859299V1DTSK2, CAP859299V1DTSK3, CAP859299V1K1, CAP859299V1K2, CAP859404V1, CAP859404V1DTSK1, CAP859404V1DTSK2, CAP859404V1DTSK3, CAP859404V1K1, CAP859404V1K2, CAP859409V1, CAP859409V1DTSK1, CAP859409V1DTSK2, CAP859409V1DTSK3, CAP859409V1K1, CAP859409V1K2, CAP859494V1, CAP859494V1DTSK1, CAP859494V1DTSK2, cap859494v1dtsk3, cap859494v1k1, cap859494v1k2, cap859499v1, cap859499v1dtsk1, CAP859499V1DTSK2, CAP859499V1DTSK3, CAP859499V1K1, CAP859499V1K2, CAP859504V1, CAP859504V1DTSK1, CAP859504V1DTSK2, CAP859504V1DTSK3, CAP859504V1K1, CAP859504V1K2, CAP859509V1DTSK1, CAP859509V1DTSK2, CAP859509V1DTSK3, CAP859509V1K1, CAP859509V1K2, CAP859594V1DTSK1, cap859594v1dtsk2, cap859594v1dtsk3, cap859594v1k1, cap859594v1k2, cap859599v1, cap859599v1dtsk1, cap859599v1dtsk2, cap859599v1dtsk3, cap859599v1k1, cap859604v1, CAP859604V1DTSK1, CAP859604V1DTSK2, CAP859604V1DTSK3, CAP859604V1K1, CAP859609V1, cap859609v1dtsk1, cap859609v1dtsk2, cap859609v1dtsk3, cap859609v1k1, cap85960v1k2, cap859704v1, CAP859704V1dtsk1, CAP859704V1DTSK2, CAP859704V1DTSK3, CAP859704V1K2, CAP859709V1, CAP859709V1DTSK1, CAP859709V1DTSK2, CAP859709V1DTSK3, CAP859709V1K1, CAP859709V1K2
| Ambiant temperature | -60°C to +140°C |
|---|---|
| Protection étanchéité (IP) | IP66.IP68 |
| Application/Usage | Zone ATEX |
| Zone ATEX | Zone 1/2 |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex d (antidéflagrant) |
| Certificats | ATEX.IECEx |
| Matière | Laiton nickelé |
| Certificat_ATEX-fr_FR | INERIS 12 ATEX 0032X |
| Certificat_IECEx-fr_FR | IECEx INE 12.0025X |
| Taille de filetage | M12 |
| Couleurs corps | Gris métallisé |
| Cable type | armé sous plomb |
| Type de filetage | ISO |
| Corps acier inox AISI 316L | 1 |
| Ex e (sécurité augmentée) | 1 |
