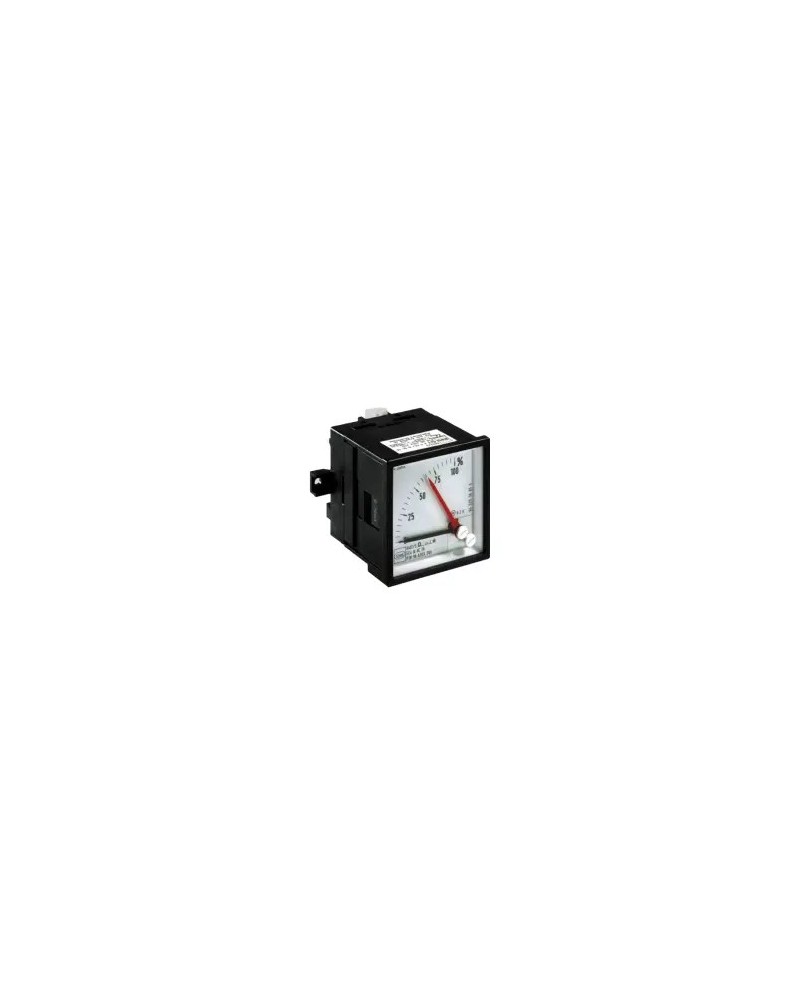

Ammeter for electric circuits ex i series 8402C6

- IP54
- ambient temperature: -40 ° C to + 40 ° C
- Housing material: polyamide
- Ammeters available in different versions, suitable for ex I electrical circuits and ex e housings
- Quick comparison of the measured values thanks to the red marking needle of the adjustable device from the outside
- Different current measuring ranges of 0 ... 20 mA or 4 ... 20 mA
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The R. Stahl 8402C6 series ammeters are installed in ex e protection mode. They provide, for the EX I electrical circuits, measured current values that can quickly compared to the prescribed values via an external red marking needle. The devices operate with a precision class 2.5 ferromagnetic measurement system.
References Manufacturer: 267133,262236,267110,262237,262731,262735,262738,26713 4,262732,262733,262734,262706,262707,262736,262737,263 517,263518,263519,263520,263521,262952,262958,262959.2 62953,262954,262955,262956,262957,263655,263656,263657
Ambiant temperature -40 ° C to + 40 ℃
Temperature class T6
Warranty
Feed 220V / 380/400 / 440V AC
Waterproofing protection (IP) Ip54
Application / usage ATEX zone
ATEX zone Zone 1/2
Gas class IIC
ATEX protection mode Ex i (intrinsic safety)
Certificates Atex.iecex
Frequency (Hz) 50 / 60hz
Material Polyamide
Certificat_atex-en_us SIQ 18 ATEX 018 x
Certificat_iecex-en_us IECEX SIQ 18.0003X
Body colors Black
Ex e (increased security) 1
Reinforced polyester (GRP) 1
690v 1
Reference STL0264
