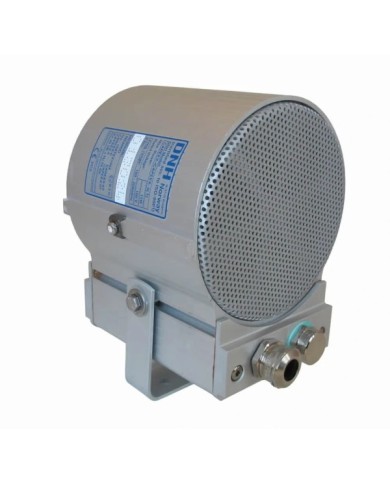

Loudspeaker ETH 100V 6-25W
- Zones 1, 2, 21, 22
- Output of 100 dB to 112 dB
- Ex d protection
- IP66
- Output of 100 dB to 112 dB
- Ex d protection
- IP66
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Voice and Soundlip Alarms of the ETH20MDLOUD series are designed for use in potentially explosive atmospheres, in the presence of gases and dust. They guarantee a high degree of protection (IP66) to deal with binding environmental conditions, such as those found in off-shore and on-shore facilities. They are particularly responding to a connection to standard amplification systems at 100 V, for communication with the public and for connecting to alarm systems. The acoustic compression chamber is separated from the environment by a special sintering filter. They are equipped with a transformer and the sound level can be adapted and selected according to the practical requirements of the installation site.
References Manufacturer: ETH20MDLOUD / TR
| Temperature class | T6 |
|---|---|
| Warranty | 2¨ |
| Feed | 24-48V DC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | ATEX |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | INERIS 09 ATEX 0024X |
| Body colors | Gray epoxy coating (RAL 7000) |
| Ranting power | 112db |
