Combined Diffuser Solista Class B LXDSB3000 and LXS
- Complies with EN 54-23
- satisfies the requirement for illumination of 0.4 lux throughout the zone
- LED technology
- Long service life and low energy consumption
- Unique optics for lighting management
- Lens design optimizing the dispersion of light
- up to 7.5 m linear coverage
- Limit the number of broadcasters needed to cover an area
- Parameterization by switch switch
- For the smaller parts, switch the cover parameter from 7.5 m to 2.5 m, reduces consumption by 50%.
- Flash flashing frequency switch setting
- The setting of the flashing frequency at 0.5 Hz reduces consumption by 50% (compared to the 1 Hz setting)
- Large entrance voltage range
- More flexibility for the design of the electrical installation
- Progressive start
- Current flow reduced at startup, reducing the circuit loading
- New connection system
- Wiring and simplified connection to the installation
- Lockable bases
- Avoid easy removal of the device
- satisfies the requirement for illumination of 0.4 lux throughout the zone
- LED technology
- Long service life and low energy consumption
- Unique optics for lighting management
- Lens design optimizing the dispersion of light
- up to 7.5 m linear coverage
- Limit the number of broadcasters needed to cover an area
- Parameterization by switch switch
- For the smaller parts, switch the cover parameter from 7.5 m to 2.5 m, reduces consumption by 50%.
- Flash flashing frequency switch setting
- The setting of the flashing frequency at 0.5 Hz reduces consumption by 50% (compared to the 1 Hz setting)
- Large entrance voltage range
- More flexibility for the design of the electrical installation
- Progressive start
- Current flow reduced at startup, reducing the circuit loading
- New connection system
- Wiring and simplified connection to the installation
- Lockable bases
- Avoid easy removal of the device
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

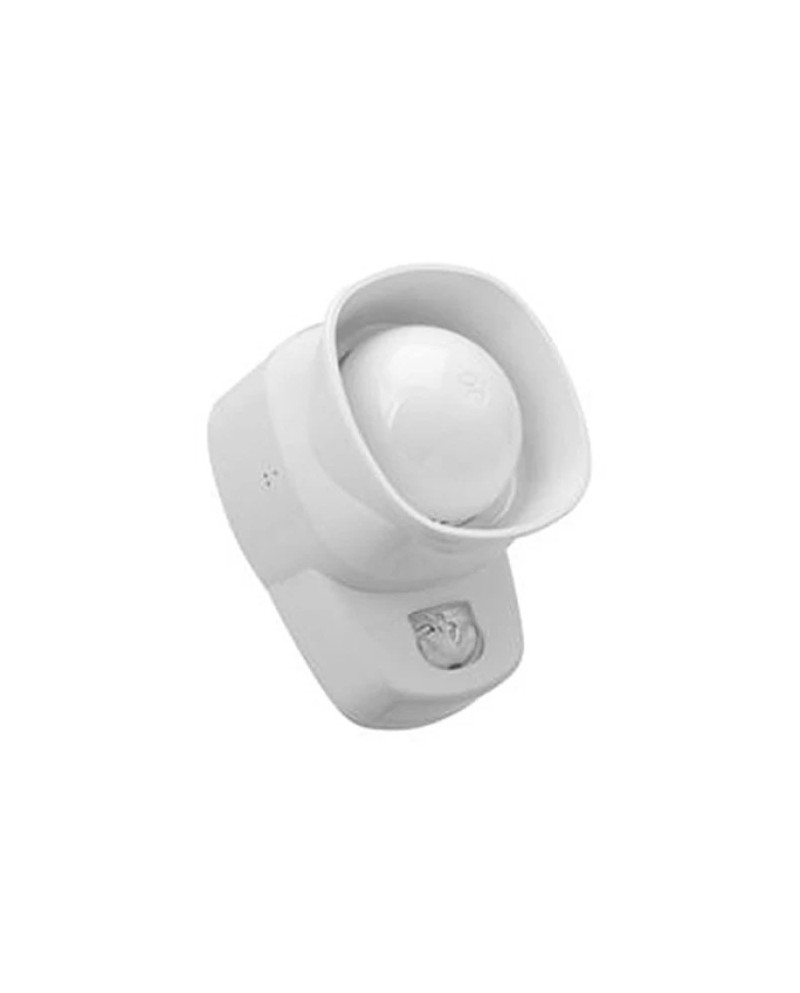

The combined DSB3000-LX S diffuser is a Durable Visual and Sound Diffuser certified EN54-23 and EN54-3. Benefiting from impressive performance and sustainable design, it guarantees reliability and energy efficiency. Its high sound efficiency and light power inherited from DSB3000 and Solista LX diffusers make it suitable for open spaces or where the background noise is greater than normal. In addition to European Certification EN54-23 and EN54-3, the DSB3000-LX S meets NF and CE approvals.
References Manufacturer: NUG30496
| Ambiant temperature | -10 ° C to + 55 ° C |
|---|---|
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip21 |
| Application / usage | En-54 |
| Certificates | THIS |
| Material | ABS |
| Body colors | White |
| Ranting power | 93db |
| LED indicator | 1¨ |
| Mounting type | Suspended |
