Visual and Sound Diffusers DSAB3000 and LXR
- Complies with EN 54-23
- satisfies the requirement for illumination of 0.4 lux throughout the zone
- LED technology
- Long service life and low energy consumption
- Unique optics for lighting management
- Lens design optimizing the dispersion of light
- up to 7.5 m linear coverage
- Limit the number of broadcasters needed to cover an area
- Parameterization by switch switch
- For the smaller parts, switch the cover parameter from 7.5 m to 2.5 m, reduces consumption by 50%.
- Flash flashing frequency switch setting
- The setting of the flashing frequency at 0.5 Hz reduces consumption by 50% (compared to the 1 Hz setting)
- Large entrance voltage range
- More flexibility for the design of the electrical installation
- Progressive start
- Current flow reduced at startup, reducing circuit loading • New connection system
- Wiring and simplified connection to the installation
- Lockable bases
- Avoid easy removal of the device
- satisfies the requirement for illumination of 0.4 lux throughout the zone
- LED technology
- Long service life and low energy consumption
- Unique optics for lighting management
- Lens design optimizing the dispersion of light
- up to 7.5 m linear coverage
- Limit the number of broadcasters needed to cover an area
- Parameterization by switch switch
- For the smaller parts, switch the cover parameter from 7.5 m to 2.5 m, reduces consumption by 50%.
- Flash flashing frequency switch setting
- The setting of the flashing frequency at 0.5 Hz reduces consumption by 50% (compared to the 1 Hz setting)
- Large entrance voltage range
- More flexibility for the design of the electrical installation
- Progressive start
- Current flow reduced at startup, reducing circuit loading • New connection system
- Wiring and simplified connection to the installation
- Lockable bases
- Avoid easy removal of the device
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

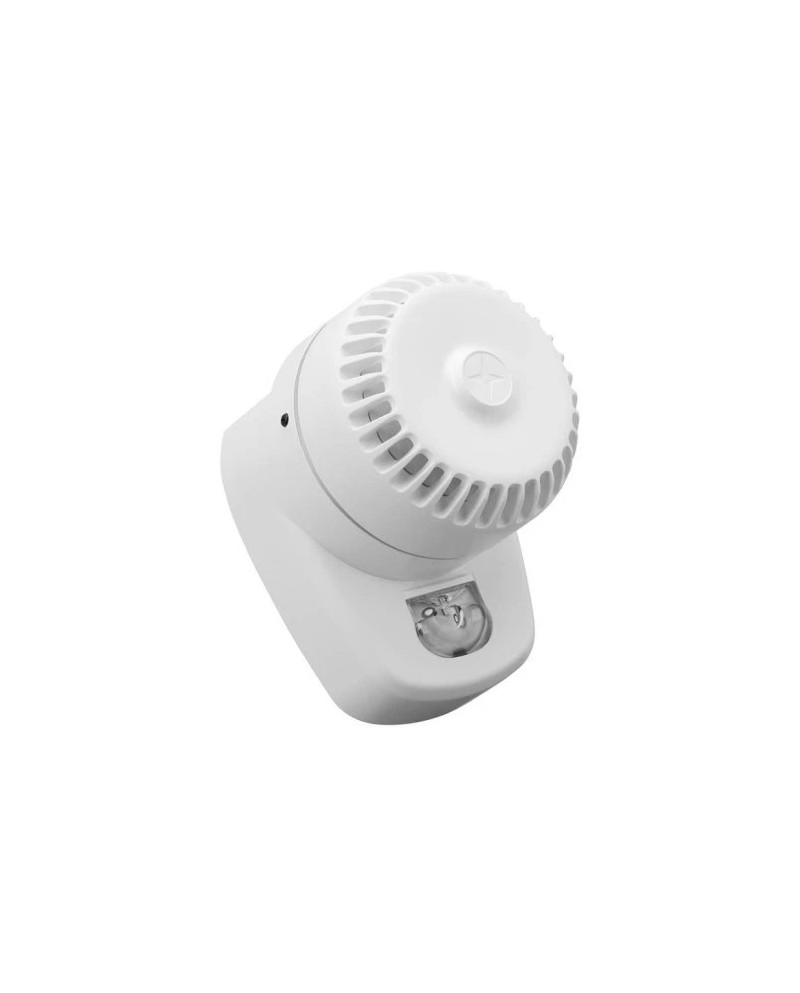

The Visual and Sound Diffuser DSAB3000-LX R is ideal for dual-use applications where a visual alarm device must be combined with an audible alarm. Recommended for wall use and requiring only one installation point, the DSAB3000-LX R uses LED technology of the Fire Alarm Visual Diffuser (DVAF) Solista LX as well as the sound characteristics of the sound diffuser (DS) DSAB3000. In addition to European Certification EN54-3 and EN54-23, the DSAB3000-LX R responds to NF and CE approvals.
References Manufacturer: NUG30495
| Ambiant temperature | -25°C/+70°C |
|---|---|
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip65 |
| Application / usage | En-54 |
| Certificates | THIS |
| Material | ABS |
| Body colors | White |
