The DSAB3000 is the sound broadcaster (DS) conventional fire-leader fire alarm. Its versatility and reliability make it suitable for virtually all sound applications around the world. Present in commercial buildings and security applications, its robust design also makes it suitable for use in the harshest environments. The sound diffuser (DS) is certified NF according to EN 54-3. By integrating a weather-resistant housing capable of reaching an IP65 seal and several attachment methods, the DSAB3000 is a sound alarm sound diffuser (DS) for most installations.
References Manufacturer: NUG30457
Brand
Nugelec
Reference
CSE0128
Ambiant temperature
-15 ° C to + 70 ° C
Warranty
2¨
Feed
24V DC
Waterproofing protection (IP)
Ip65
Application / usage
En-54
Certificates
THIS
Material
ABS
Body colors
White
Ranting power
93db
Réf. : CSE0128

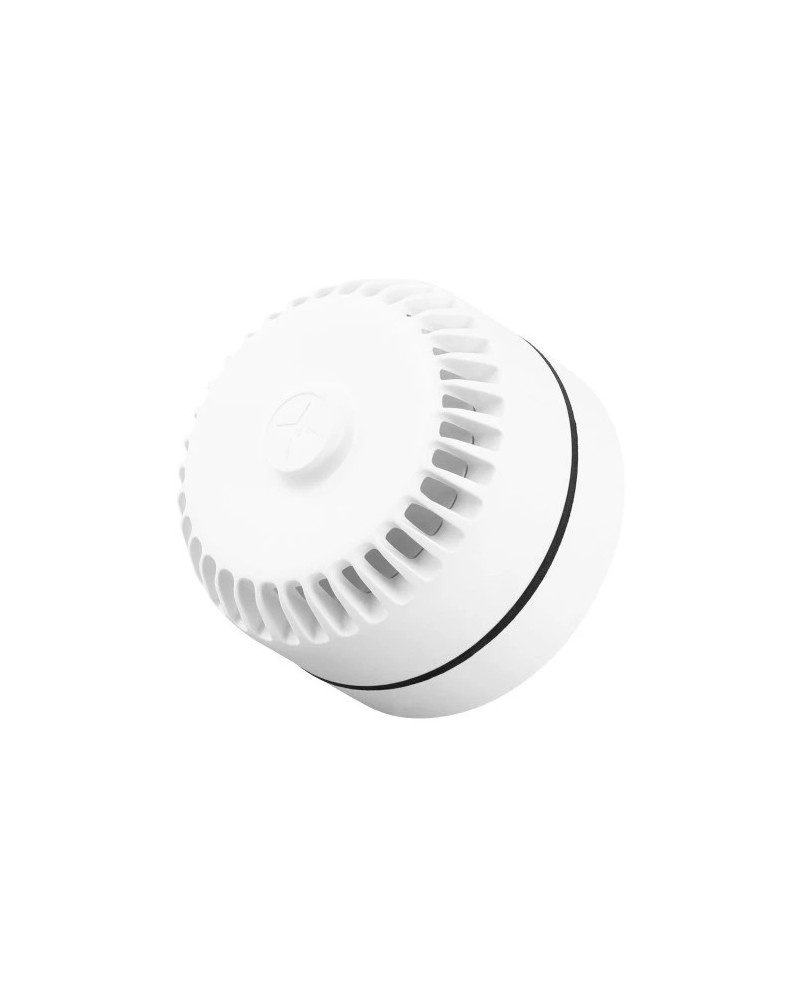

Sirene round class a / b white IP65 dsab3000
Demande de devis
Certification ATEX / IECEx
Réponse sous 24–48h
- Sound Power: Class A 83DB (A) / Class B 93DB (A) +/- 3DB to 2M - Usage voltage: 18 to 60 VDC - Consumption (24V): Class A 5mA +/- 10% / Class B 15mA +/- 10% - Sealing: IP65 - Certification: NF Certificate: DS 006 A-B0 CE Certificate: 0333-CPD-075090-1 - Cable section: 2.5 mm² maximum - Dimensions: diameter 93 x 66 mm - Usage temperature: -25 ° C
- Sound Power: Class A 83DB (A) / Class B 93DB (A) +/- 3DB to 2M - Usage voltage: 18 to 60 VDC - Consumption (24V): Class A 5mA +/- 10% / Class B 15mA +/- 10% - Sealing: IP65 - Certification: NF Certificate: DS 006 A-B0 CE Certificate: 0333-CPD-075090-1 - Cable section: 2.5 mm² maximum - Dimensions: diameter 93 x 66 mm - Usage temperature: -25 ° C
