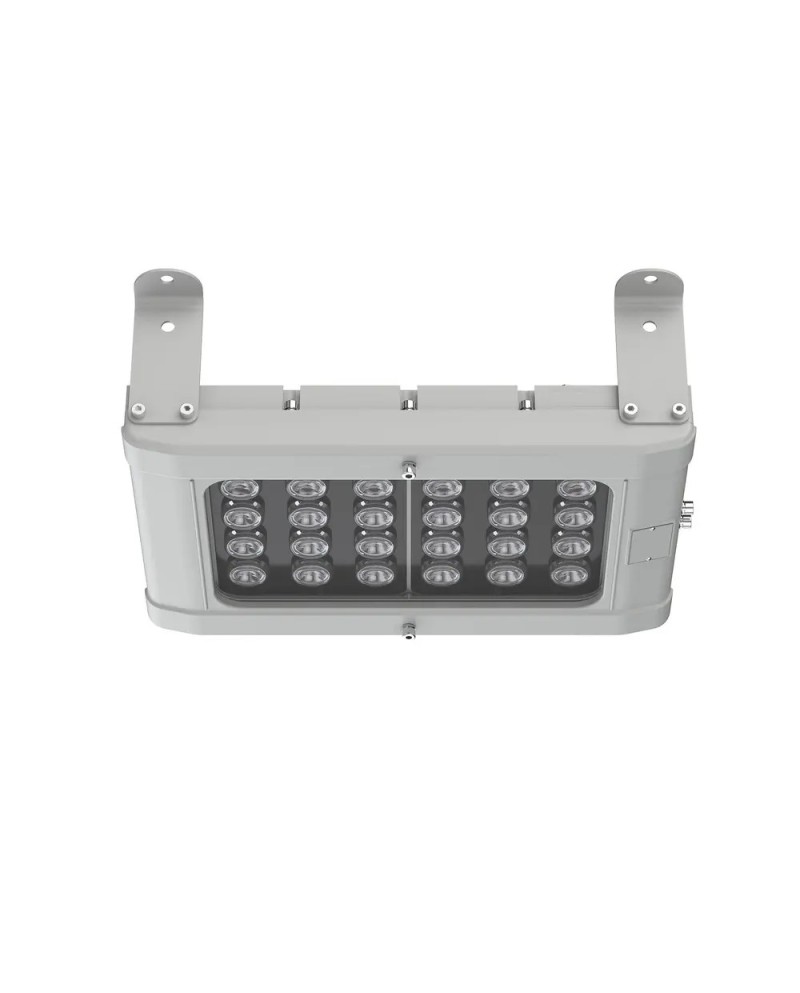

Bay LED Strong Power Spartan Hpby for Zone 2
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance output level 22971 lm
- BASE CONSOMATION (200W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -50 ° C to + 50 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance output level 22971 lm
- BASE CONSOMATION (200W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -50 ° C to + 50 ° C
- 5 years warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan High Power Bay Zone 2 range is designed to illuminate large open spaces in dangerous environments. Available with a range of different powers ranging from 20,000 to 34,000 lumens, high power bay uses Raytec's long-term LED LED technology to ensure lifespan of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-HPBY30K-W-3030, SPZ-HPBY30K-W-6060, SPZ-HPBY30K-W-9090, SPZ-HPBY25K-W-3030, SPZ- HPBY25K-W-6060, SPZ-HPBY25K-W-9090, SPZ-HPBY20K-W-3030, SPZ-HPBY20K-W-6060, SPZ-HPBY20K-W-9090
| Ambiant temperature | -50°C to +50°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 150-264v |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | THIS |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 5700k |
| Power | 200w |
| Light power | 22971lm |
| Ip66 | 1 |
| 250w | 1 |
