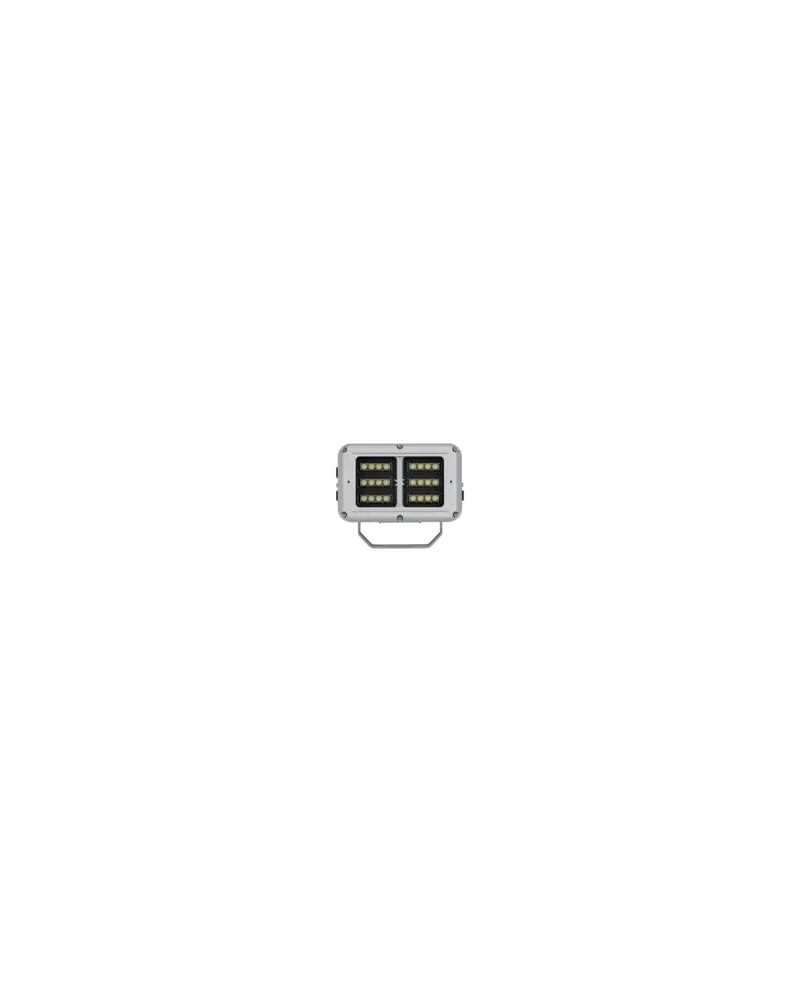

Spartan BL24 LED Projector for Zone 1
- ATEX certified and IEC ex zone 1/21
- Ultra long duration LED
- 20W - 2500lm
- Easy installation and maintenance
- Large operating temperature -50 ° to + 55 ° C
- Available with optional DALI 2.0 technology
- 5 years warranty
- Ultra long duration LED
- 20W - 2500lm
- Easy installation and maintenance
- Large operating temperature -50 ° to + 55 ° C
- Available with optional DALI 2.0 technology
- 5 years warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan Flood BL24 range is designed for explosive atmospheres that require high performance and reliable white light lighting. Available with a backup battery and delivering 4,250 lumens, the Flood BL24 is ideal for illuminating smaller areas. It uses long-lasting LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-BL24-W-1010-SB30, SPX-BL24-W-1010-EMX25 -SB30, SPX-BL24-W-3030-SB30, SPX-BL24-W-3030- EMX25-SB30, SPX-BL24-W-5050-SB30, SPX-BL24-W-5050-EMX25-SB30, SPX-BL24-W-8080-EMX25-SB30, SPX- BL24-W-120120-SB30, SPX-BL24-W-120120-EMX25-SB30, SPX-BL24-W-3510-SB30, SPX-BL24-W-3510-EMX25- SB30, SPX-BL24-W-6025-SB30, SPX-BL24-W-6025-EMX25-SB30, SPX-BL24-W-8030-SB30, SPX-BL24-W-8030- EMX25-SB30, SPX-BL24-W-12050-SB30, SPX-BL24-W-12050-EMX25-SB30
| Ambiant temperature | -50°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.CERTIF_UKCA.IECEx |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum |
| Certificat_atex-en_us | CML 13ATEX3007 |
| Certificat_iecex-en_us | IEC EX CML14.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 24w |
| Light power | 2500lm |
| Cable entry (s) | 2xm20 |
| Zone 1/2 | 1 |
| IIB | 1 |
| 20w | 1 |
| -52 ° C to + 55 ° C | 1 |
