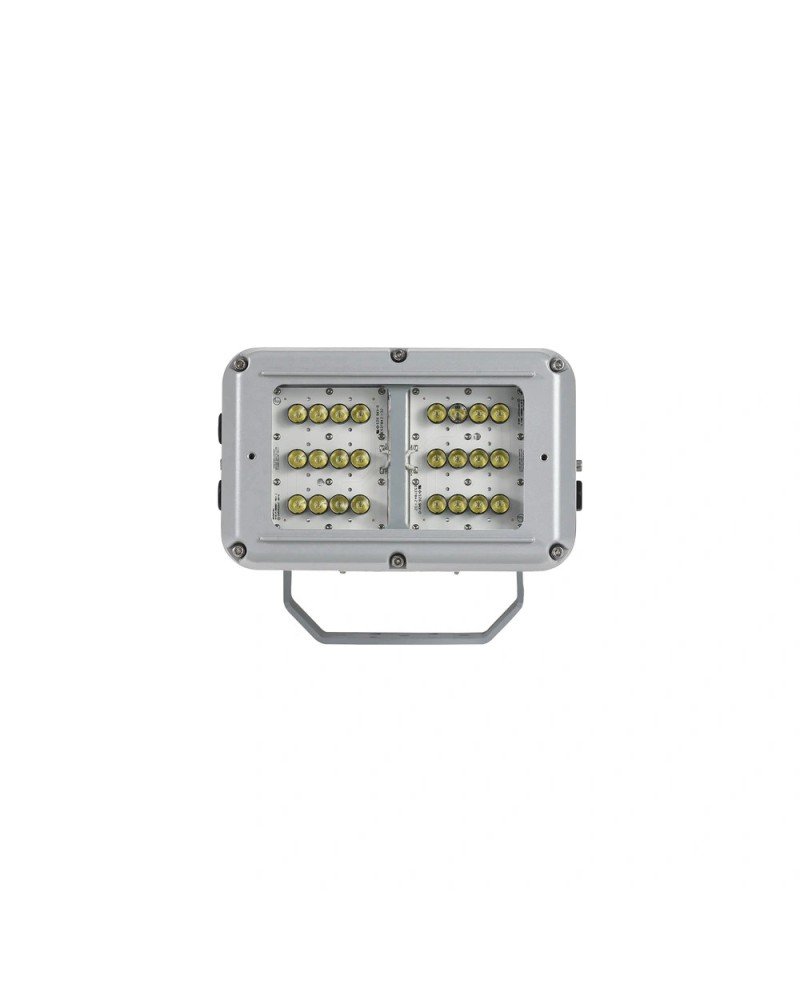

Spartan BL24 LED Projector, Zone 2/22 -A2S

Spartan BL24 LED Projector for Zone 2

Name: Spartan BL24 LED Projector for Zone 2
Brand: RAYTEC
SKU: RTC0051

- IP66 & 67 - IK10
- High performance output level 2 750 lm
- Easy installation and maintenance
- Low consumption (20W)
- Large operating temperature -50 ° to + 55 °
- 5 year warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Flood range is designed for dangerous zone environments that require high performance and reliable white light lighting. The Flood range is available with a backup battery and delivering 4,650 lumens, the BL24 Flood is ideal for illuminating smaller areas. It uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPZ-BL24-W-1010-SB30, SPZ-BL24-W-1010-EMX25 -SB30, SPZ-BL24-W-3030-SB30, SPZ-BL24-W-3030- EMX25-SB30, SPZ-BL24-W-5050-SB30, SPZ-BL24-W-5050-EMX25-SB30, SPZ-BL24-W-8080-SB30, SPZ-BL24-W- 8080-EMX25-SB30, SPZ-BL24-W-120120-SB30, SPZ-BL24-W-120120-EMX25-SB30, SPZ-BL24-W-3510-SB30, SPZ -Bl24-W-3510-EMX25-SB30, SPZ-BL24-W-6025-SB30, SPZ-BL24-W-6025-EMX25-SB30, SPZ-BL24-W-8030- SB30, SPZ-BL24-W-8030-EMX25-SB30, SPZ-BL24-W-12050-SB30, SPZ-BL24-W-12050-EMX25-SB30

Ambiant temperature	-50°C to +55°C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 2/22
Gas class	IIC
ATEX protection mode	Ex e (increased security)
Certificates	ATEX.IECEx.UKCA
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	CML 17ATEX4231
Certificat_iecex-en_us	IEC EX CML17.0135
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	6500k
Power	20w
Light power	2750lm
Cable entry (s)	2xm20
