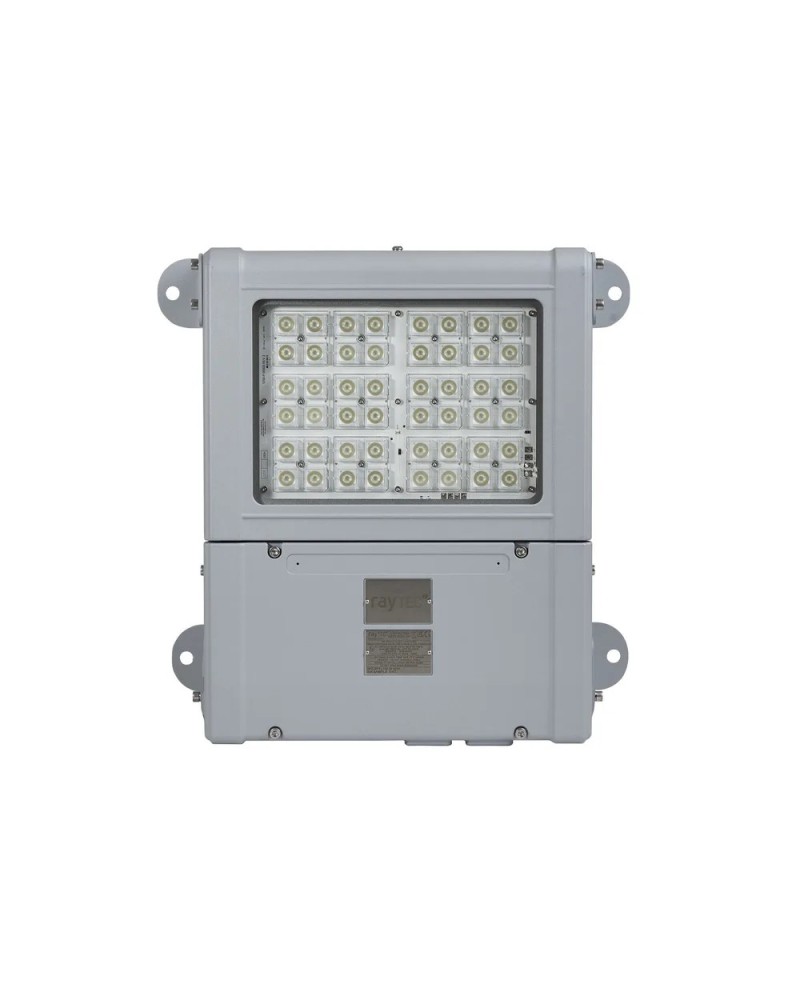

Bay Medium Power Spartan MPBY Series, Zone 2/22 -A2S

Bay LED Medium Power Spartan MPBY for Zone 2

Name: Bay LED Medium Power Spartan MPBY for Zone 2
Brand: RAYTEC
SKU: RTC0102

- IP66 & 67
- LED ultra long duration and high efficiency
- High performance exit level 5484 lm
- BASE CONSOMATION (40W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° C to + 60 ° C
- 5 years warranty

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The Spartan Mid-Power Bay range is designed to illuminate large open spaces in hazardous environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the Mid-Power Bay uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.

References Manufacturer: SPZ-MPBY15K-W-12015, SPZ-MPBY15K-W-9090, SPZ-MPBY15K-W-6060, SPZ-MPBY15K-W-3030, SPZ-MPBY15K-W-1010, SPZ-MPBY12K5-W-12015, SPZ-MPBY12K5-W-9090, SPZ-MPBY12K5-W-6060, SPZ-MPBY12K5-W-3030, SPZ-MPBY12K5-W-1010, SPZ-MPBY10K-W-12015, SPZ-MBY10K-W-9090, SPZ-MPBY10K-W-6060, SPZ-MPBY10K-W-3030, SPZ-MPBY10K-W-1010, SPZ- MPBY7K5-W-12015, SPZ-MPBY7K5-W-9090, SPZ-MPBY7K5-W-6060, SPZ-MPBY7K5-W-3030, SPZ-MPBY7K5-W-1010, SPZ- MPBY5K-W-12015, SPZ-MPBY5K-W-9090, SPZ-MPBY5K-W-6060, SPZ-MPBY5K-W-3030, SPZ-MPBY5K-W-1010

Ambiant temperature	-40 ° to + 60 ° C
Temperature class	T4
Warranty	5 year warranty (s)
Feed	110-254V AC
Waterproofing protection (IP)	Ip66.ip67
Application / usage	ATEX zone
ATEX zone	Zone 2/22
Gas class	IIC
Certificates	ATEX.IECEx.UKCA
Frequency (Hz)	50 / 60hz
Material	Aluminum Marine Quality
Certificat_atex-en_us	Cml21atex3317
Certificat_iecex-en_us	IEC EX CML21.0037
Body colors	Silver (RAL 9006)
Light source	LED
Color temperature	5700k
Power	120w
Light power	5149lm
Cable entry (s)	2xm20
40w	1
