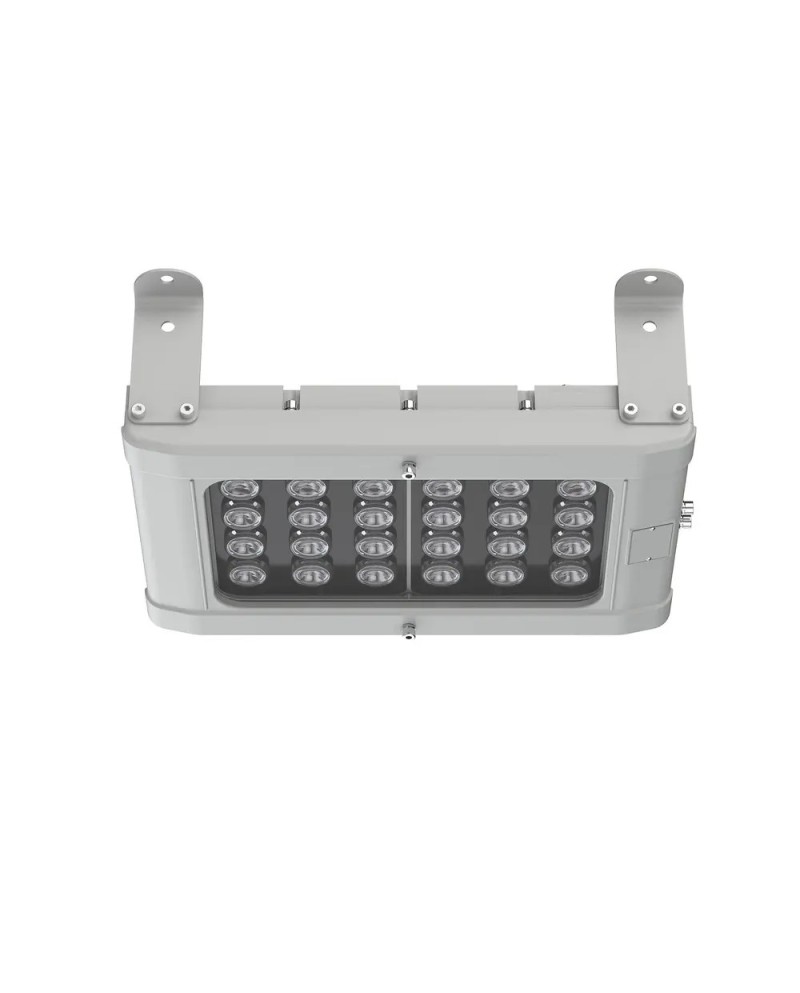

Bay LED Strong Power Spartan Hpby for Zone 21 Food Security

- IP66
- LED ultra long duration and high efficiency
- High performance output level 24278 lm
- BASE CONSOMATION (250W)
- Easy installation and maintenance
- Urgenece lighting variant
- Large operating temperature -50˚c to + 50˚c
- 5 years warranty
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The Spartan High Power Bay range is designed to illuminate large open spaces in dangerous environments. High Bay LED ATEX Available with a range of different powers from 20,000 to 30,000 lumens, the Spartan HPBY uses Raytec's proven LED LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-HPBY30K-W-3030-Z21-FS, SPZ-HPBY30K-W-6060-Z21-FS, SPZ-HPBY30K-W-9090-Z21-FS, SPZ -HPBY25K-W-3030-Z21-FS, SPZ-HPBY25K-W-6060-Z21-FS, SPZ-HPBY25K-W-9090-Z21-FS, SPZ- HPBY20K-W-3030-Z21-FS, SPZ-HPBY20K-W-6060-Z21-FS, SPZ-HPBY20K-W-9090-Z21-FS
Ambiant temperature -50°C to +50°C
Temperature class T4
Warranty 5 year warranty (s)
Feed 110-254V AC
Waterproofing protection (IP) Ip66
Application / usage ATEX zone
ATEX zone Zone 1/21
Gas class IIB
ATEX protection mode Ex of
Certificates ATEX.IECEx.UKCA
Frequency (Hz) 50 / 60hz
Material Aluminum Marine Quality
Certificat_atex-en_us Cml17atex1148
Certificat_iecex-en_us IECEX CML17.0074
Body colors Silver (RAL 9006)
Light source LED
Color temperature 5700k
Power 200w
Light power 19423lm
150-264v 1
250w 1
Reference RTC0097
