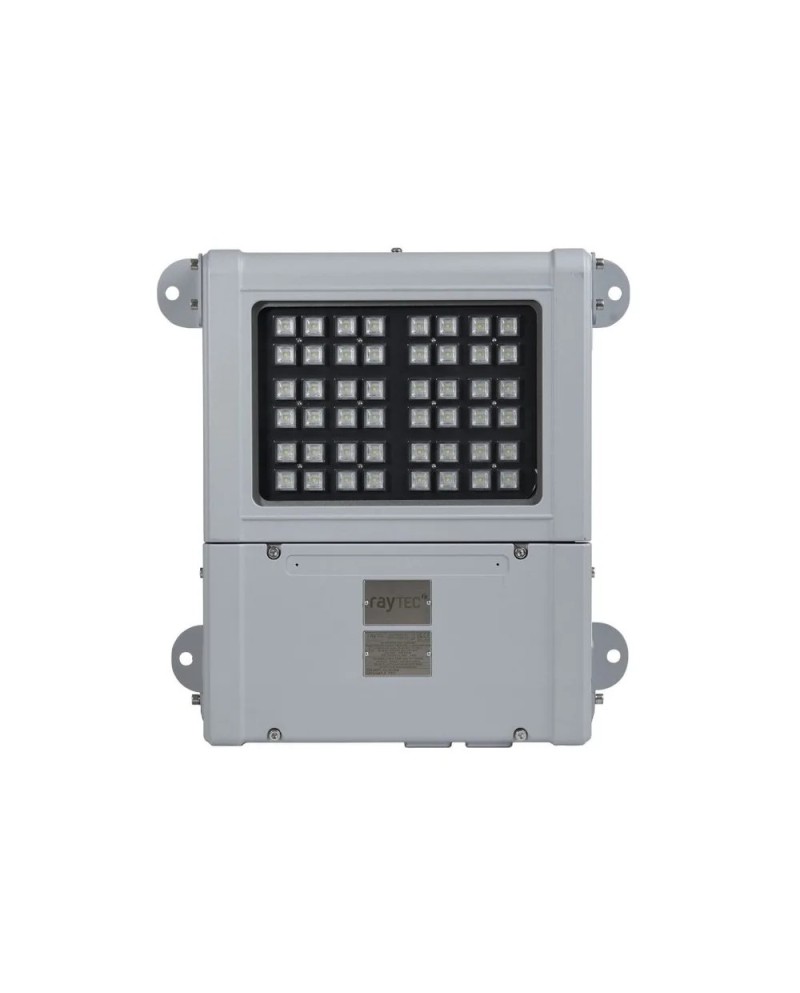

Bay LED Medium Power Spartan MPBY for Zone 1

- IP66 & 67
- LED ultra long duration and high efficiency
- High performance exit level 15547 lm
- BASE CONSOMATION (120W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° C to + 60 ° C
- 5 years warranty
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The Spartan Mid-Power Bay range is designed to illuminate large open spaces in hazardous environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the Mid-Power Bay uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-MPBY15K-W-9090, SPX-MPBY15K-W-6060, SPX-MPBY15K-W-3030, SPX-MPBY12K5-W-9090, SPX-MPBY12K5-W- 6060, SPX-MPBY12K5-W-3030, SPX-MPBY10K-W-9090, SPX-MPBY10K-W-6060, SPX-MPBY10K-W-3030, SPX-MPBY7K5-W-9090, SPX-MPBY7K5-W-6060, SPX-MPBY7K5-W-3030, SPX-MPBY5K-W-9090, SPX-MPBY5K-W-6060, SPX-MPBY5K-W-3030
Ambiant temperature -40 ° to + 60 ° C
Temperature class T4
Warranty 5 year warranty (s)
Feed 110-254V AC
Waterproofing protection (IP) Ip66.ip68
Application / usage ATEX zone
ATEX zone Zone 1/21
Gas class IIC
Certificates ATEX.CERTIF_UKCA.IECEx
Frequency (Hz) 50 / 60hz
Material Aluminum Marine Quality
Certificat_atex-en_us CML 21ATEX3317
Certificat_iecex-en_us IECEX CML 21.0037
Body colors Silver (RAL 9006)
Light source LED
Color temperature 5700k
Power 40w
Light power 15000lm
Shock resistance index Ik10
Cable entry (s) 2xm20
Ip66.ip67 1
IIB 1
60w 1
Reference RTC0093
