BL24 Spartan Matter LED Applique for Zone 2

- IP66,67
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")

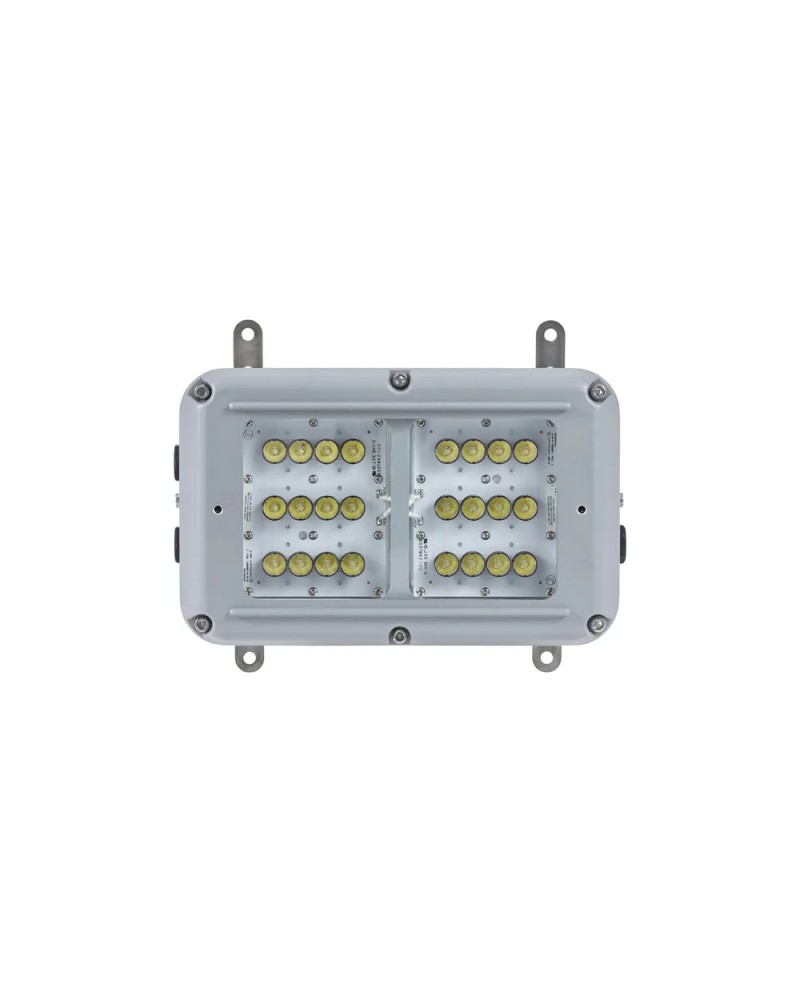

The LED Spartan light applique is a high-performance lighting for industrial at-risk environments, specifically for 2/22 zones (ATEX-based areas, where the risk of explosion is low but possible in the event of gas or dust leakage. Flammable). This model is ideal for installations where optimal safety is needed, as in chemical, oil-based industries or storage areas of hazardous materials. This wall lamp offers a concentrated white light beam with an angle of 10 ° x10 °, allowing to project a precise and directed light beam. This makes it possible to effectively illuminate specific areas, such as machines, control panels or reduced workpoints, while minimizing light dispersion and maximizing energy efficiency.
References Manufacturer: SPZ-BL24-W-1010-EMX25 -SP, SPZ-BL24-W-1010-EMX25 -SP48, SPZ-BL24-W-3030-EMX25-SP, SPZ- BL24-W-3030-EMX25-SP48, SPZ-BL24-W-5050-EMX25-SP, SPZ-BL24-W-5050-EMX25-SP48, SPZ-BL24-W-8080- EMX25-SP, SPZ-BL24-W-8080-EMX25-SP48, SPZ-BL24-W-120120-EMX25-SP, SPZ-BL24-W-120120-EMX25-SP48, SPZ-BL24-W-3510-EMX25-SP, SPZ-BL24-W-3510-EMX25-SP48, SPZ-BL24-W-6025-EMX25-SP, SPZ-BL24-W- 6025-EMX25-SP48, SPZ-BL24-W-8030-EMX25-SP, SPZ-BL24-W-8030-EMX25-SP48, SPZ-BL24-W-12050-EMX25- SP, SPZ-BL24-W-12050-EMX25-SP48
Ambiant temperature -50°C to +55°C
Temperature class T4
Warranty 5 year warranty (s)
Feed 110-254V AC
Waterproofing protection (IP) Ip66.ip67
Application / usage ATEX zone
ATEX zone Zone 2/22
Gas class IIC
Certificates ATEX.CERTIF_UKCA.IECEx
Frequency (Hz) 50 / 60hz
Certificat_atex-en_us CML 17ATEX4231
Certificat_iecex-en_us IECEX CML 17.0135
Body colors Silver (RAL 9006)
Color temperature 6500k
Power 20w
Light power 2500lm
Mounting type On mast
Reference RTC0199
