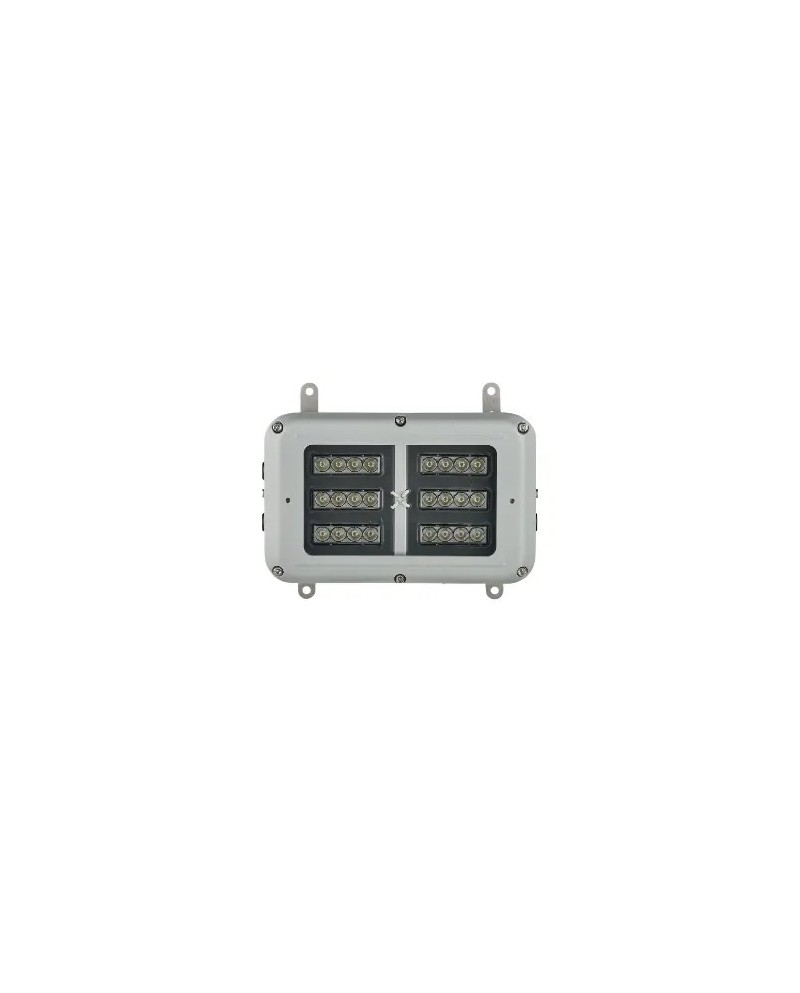

LED LED Spartan BL24 for Zone 2
- ATEX Certified and IEC Ex - Zone 2
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- 5 years warranty
- backup battery (optional)
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- 5 years warranty
- backup battery (optional)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan BL24 LED applique, designed for industrial environments and risk areas, is suitable for zones 2/22 (areas with gas explosion potential and dust, according to the ATEX standard). It combines advanced lighting and safety technologies, making it ideal for facilities under severe working conditions.
References Manufacturer: SPZ-BL24-W-1010-EMX25, SPZ-BL24-W-3030-EMX25, SPZ-BL24-W-5050-EMX25, SPZ-BL24-W-8080- EMX25, SPZ-BL24-W-120120-EMX25, SPZ-BL24-W-3510-EMX25, SPZ-BL24-W-6025-EMX25, SPZ-BL24-W-8030- EMX25, SPZ-BL24-W-12050-EMX25, SPZ-BL24-W-12050-EMX100-LO-EXI, SPZ-BL24-W-12050-EMX25-EXIT
| Ambiant temperature | -50°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| Certificates | ATEX.CERTIF_UKCA.IECEx |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | CML 17ATEX4231 |
| Certificat_iecex-en_us | IECEX CML 17.0135 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 20w |
| Light power | 2500lm |
| Cable entry (s) | 2xm20 |
