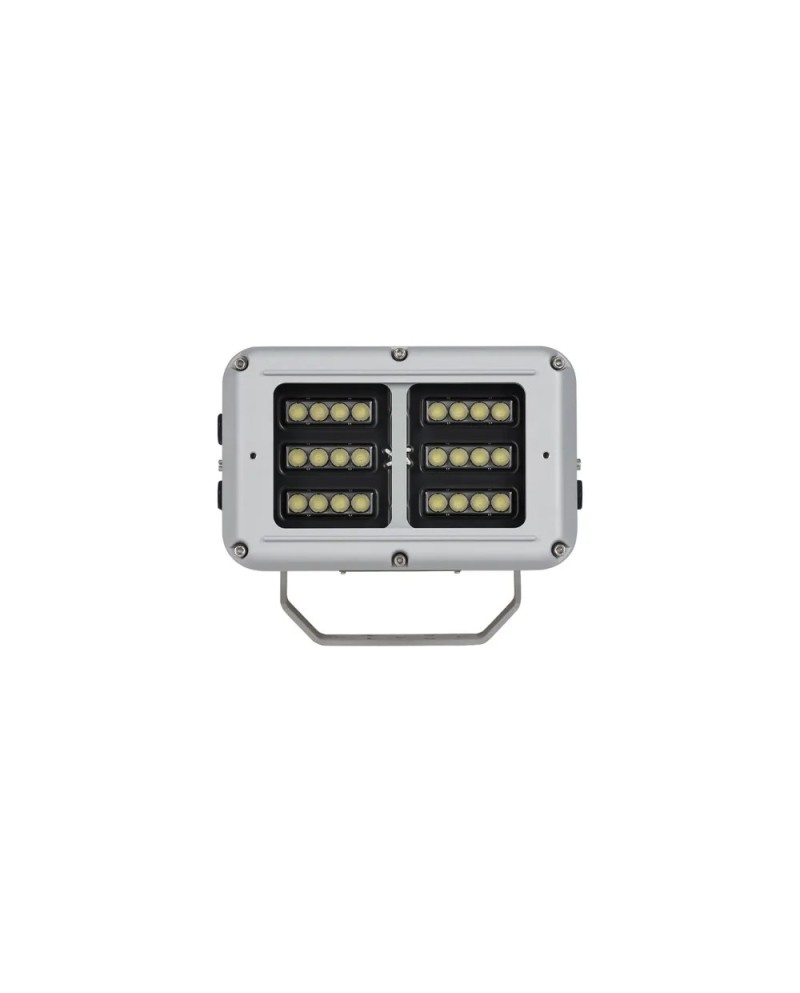

BL24 Spartan Matter LED Applique for Zone 1
- IP66,67
- ambient temperature up to 50 ° C to + 55 ° C
- ambient temperature up to 50 ° C to + 55 ° C
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan lighting range is designed for hazardous environments that require reliable and efficient white light. Compact and Discreet Design Atex LED Luminaire, Spartan BL24 is ideal for restricted space applications and is available with a backup battery. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-BL24-W-1010-EMX25 -SP, SPX-BL24-W-1010-EMX25 -SP48, SPX-BL24-W-3030-EMX25-SP, SPX- BL24-W-3030-EMX25-SP48, SPX-BL24-W-5050-EMX25-SP, SPX-BL24-W-5050-EMX25-SP48, SPX-BL24-W-8080- EMX25-SP, SPX-BL24-W-8080-EMX25-SP48, SPX-BL24-W-120120-EMX25-SP, SPX-BL24-W-120120-EMX25-SP48, SPX-BL24-W-3510-EMX25-SP, SPX-BL24-W-3510-EMX25-SP48, SPX-BL24-W-6025-EMX25-SP, SPX-BL24-W- 6025-EMX25-SP48, SPX-BL24-W-8030-EMX25-SP, SPX-BL24-W-8030-EMX25-SP48, SPX-BL24-W-12050-EMX25- SP, SPX-BL24-W-12050-EMX25-SP48
| Ambiant temperature | -50°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_UKCA.IECEx |
| Frequency (Hz) | 50 / 60hz |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 20w |
| Light power | 2500lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| 24w | 1 |
