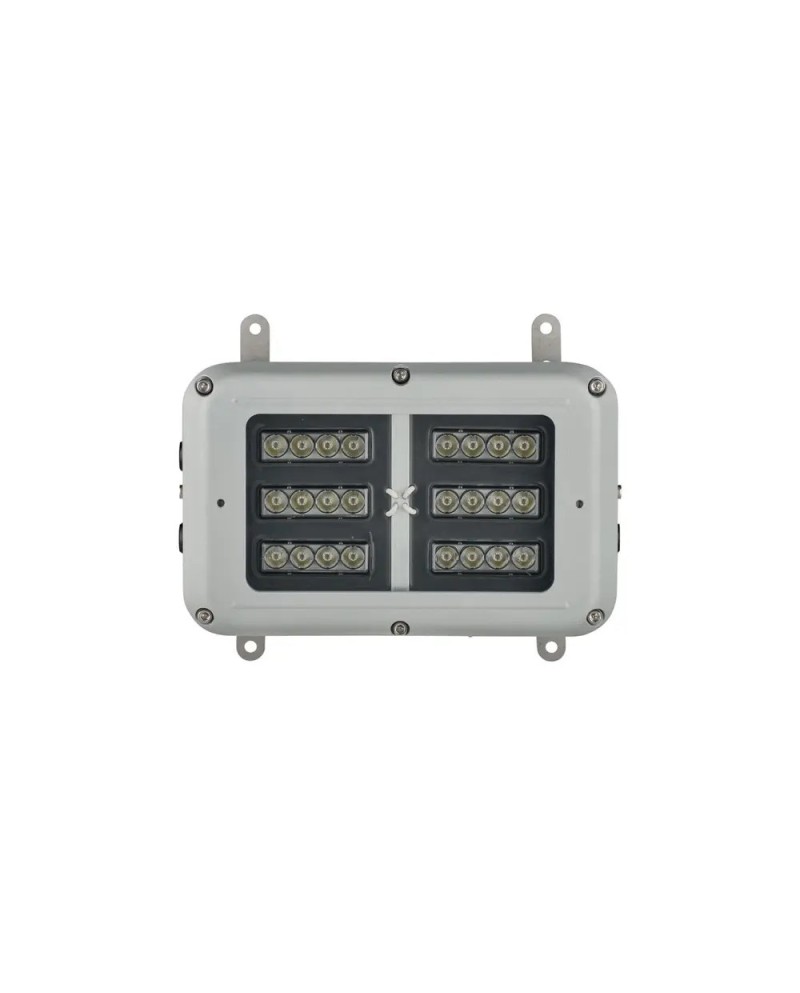

LED LED Spartan BL24 for Zone 1
- Certified ATEX and IEC EX - Zone 1
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- 5 years warranty
- Intelligent backup battery (optional)
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- 5 years warranty
- Intelligent backup battery (optional)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan lighting range is designed for hazardous environments that require reliable and efficient white light. Compact and Discreet Design Atex LED Luminaire, Spartan BL24 is ideal for restricted space applications and is available with a backup battery. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-BL24-W-1010-EMX25, SPX-BL24-W-3030-EMX25, SPX-BL24-W-5050-EMX25, SPX-BL24-W-8080- EMX25, SPX-BL24-W-120120-EMX25, SPX-BL24-W-3510-EMX25, SPX-BL24-W-6025-EMX25, SPX-BL24-W-8030- EMX25, SPX-BL24-W-12050-EMX25, SPX-BL24-W-12050-EMX100-LO-EXI, SPX-BL24-W-12050-EMX25-EXIT
| Ambiant temperature | -50°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_UKCA.IECEx |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum with epoxy powder coating (stainless steel option available on request) |
| Certificat_atex-en_us | CML 13ATEX3007 |
| Certificat_iecex-en_us | IEC EX CML14.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 24w |
| Charger | 1¨ |
| Light power | 2750lm |
| Cable entry (s) | 2xm20 |
| 22800lm | 1 |
| 20w | 1 |
| Fluorescent | 1 |
