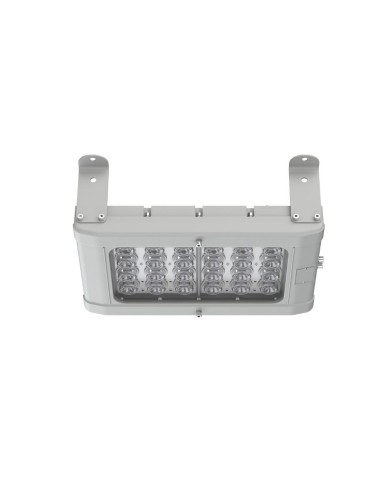

Bay LED Strong Power Spartan Hpby for Zone 1 (IB)
€2,673.41
Tax excluded
- IP66
- LED ultra long duration and high performance 19 423LM
- Easy installation and maintenance
- Emergency enlightenment variant
- Large operating temperature -50˚c to + 50˚c
- 5 years warranty
Last items in stock
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan High Power Bay range is designed to illuminate large open spaces in dangerous environments. High Bay LED ATEX Available with a range of different powers from 20,000 to 30,000 lumens, the Spartan HPBY uses Raytec's proven LED LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-HPBY30K-W-3030, SPX-HPBY30K-W-6060, SPX-HPBY30K-W-9090, SPX-HPBY25K-W-3030, SPX- HPBY25K-W-6060, SPX-HPBY25K-W-9090, SPX-HPBY20K-W-3030, SPX-HPBY20K-W-6060, SPX-HPBY20K-W-9090
| Ambiant temperature | -50°C to +50°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIB |
| Certificates | ATEX.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml17atex1148 |
| Certificat_iecex-en_us | IECEX CML17.0074 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 5700k |
| Power | 300w |
| Light power | 29000lm |
| Cable entry (s) | 2xm20 |
| 200w | 1 |
| 19423lm | 1 |
| 150-264v | 1 |
