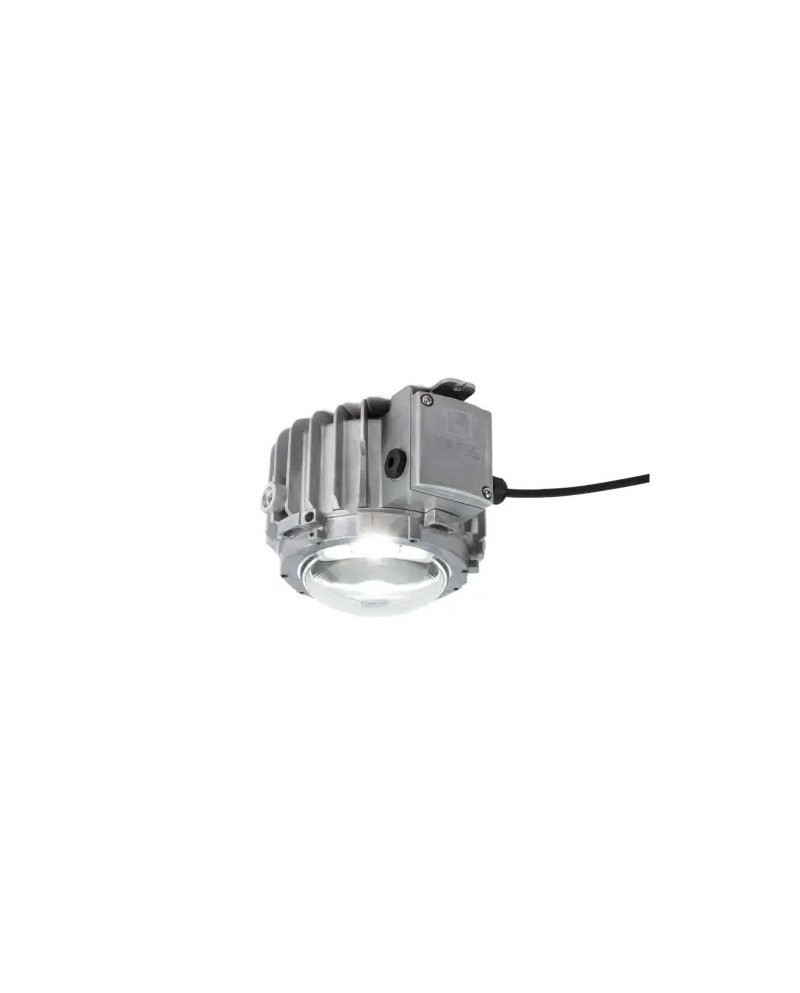

Lantern ATEX LED 6050 Series
- Maximum ambient temperature: +60 ° C
- Minimum ambient temperature: -40 ° C
- Lamp power: 20 W
- Range of frequencies: 50 - 60 Hz
- Assigned voltage of use AC: 220 - 240 V
- Filter Zone: Zone 1 | 2 g | GB / ZONE 2 | 3 g | GC / Zone 21 | 2 d | Db / zone 22 | 3 D
- Minimum ambient temperature: -40 ° C
- Lamp power: 20 W
- Range of frequencies: 50 - 60 Hz
- Assigned voltage of use AC: 220 - 240 V
- Filter Zone: Zone 1 | 2 g | GB / ZONE 2 | 3 g | GC / Zone 21 | 2 d | Db / zone 22 | 3 D
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The 6050/6 universal projector is used as surface lighting equipment, work equipment and objects. It can be used indoors and outdoors. The clear lens available in MATE version guarantees an excellent limitation of glare. Thanks to the use of an internal reflector, the universal projector fits perfectly with the lighting task as a narrow beam projector, wide beam projector or spot with average radiation characteristics.
References Manufacturer: 265418,265419,265420,265421,265422,265423,265424,265425,265426,265427, 265428,265429,265430,265431,265432,265433,265434,265435,267220,267221,2 67222,267223,267466,267467,267468,267469,267470,267511,267512,267555,26 8126,268161,269440,270015,270016,270017,270018,270019,270020,270021,270 022,271587,271586,272481,272482,272488,272480,272489,272486,272485,272 483,272484,272495,272493,272494,272492,272491,272490,272696,272695,2726 94,272949,275894,276008,276470,276991,283125,283124,283121,282976,28297 3,282972,292300,272302,283122,272304,272303,272306,277539,272305,275531
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 2¨ |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip68 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIC |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | EPS 17 ATEX 1 181 |
| Certificat_iecex-en_us | IECEX EPS 17.0093 |
| Light source | LED |
| Color temperature | 5000k |
| Power | 60w |
| Light power | 11400lm |
| 24-48V DC | 1 |
| Aluminum | 1 |
| 6500k | 1 |
| 80w | 1 |
| Xenon | 1 |
| -40 ° C to + 70 ° C | 1 |
| 8550lm | 1 |
