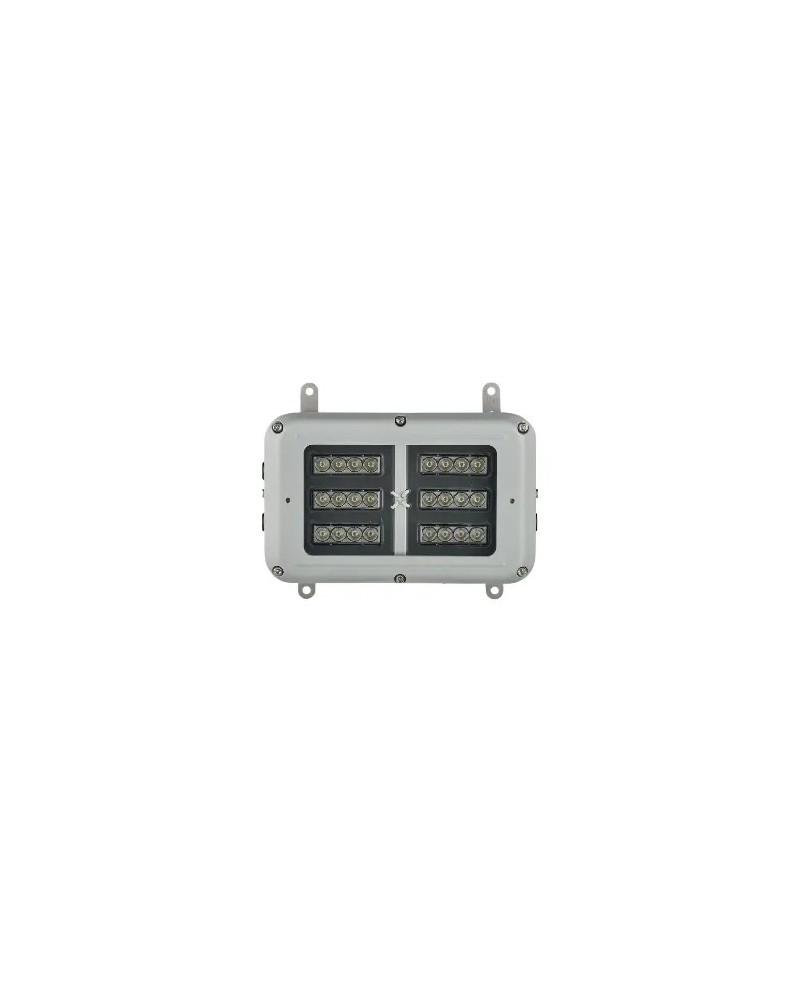

LED LED Spartan BL24 for Zone 1

- IP66 & 67
- LED ultra long duration and high efficiency
- Exit level Haite Performance 2750 lm
- BASE CONSOMATION (20W)
- Easy installation and maintenance
- Large operating temperature 50 ° C to + 55 ° C
- 5 years warranty
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The Spartan Bulkhead range is designed for hazardous areas that require high performance and reliable white light lighting. ATEX LED partition with compact and discreet design, the BL24 Spartan is ideal for applications in restricted spaces and is available with a backup battery. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-BL24-W-1010, SPX-BL24-W-1010-EMX25, SPX-BL24-W-3030, SPX-BL24-W-3030-EMX25, SPX-BL24- W-5050, SPX-BL24-W-5050-EMX25, SPX-BL24-W-8080, SPX-BL24-W-8080-EMX25, SPX-BL24-W-120120, SPX-BL24 -W-120120-EMX25, SPX-BL24-W-3510, SPX-BL24-W-3510-EMX25, SPX-BL24-W-6025, SPX-BL24-W-6025- EMX25, SPX-BL24-W-8030, SPX-BL24-W-8030-EMX25, SPX-BL24-W-12050, SPX-BL24-W-12050-EMX25, SPX-BL24 -W-12050-EMX100-LO-EXI, SPX-BL24-W-12050-EMX25-EXIT
Ambiant temperature -50°C to +55°C
Temperature class T4
Warranty 5 year warranty (s)
Feed 110-254V AC
Waterproofing protection (IP) Ip66.ip67
Application / usage ATEX zone
ATEX zone Zone 1/21
Gas class IIC
ATEX protection mode Ex e (increased security)
Certificates ATEX.IECEx.UKCA
Frequency (Hz) 50 / 60hz
Material Aluminum Marine Quality
Certificat_atex-en_us CML 13ATEX3007
Certificat_iecex-en_us IEC EX CML14.0001
Body colors Silver (RAL 9006)
Light source LED
Color temperature 6500k
Power 20w
Light power 2500lm
Cable entry (s) 2xm20
Mounting type Built
24w 1
4250lm 1
Reference RTC0073
