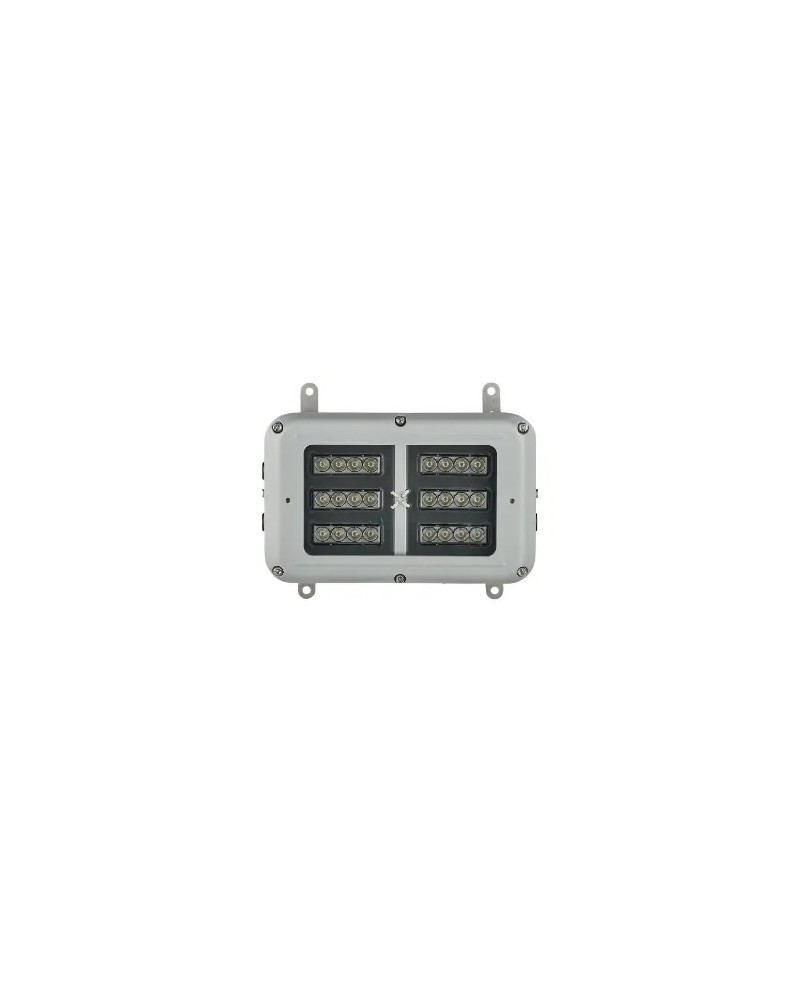

BL24 Spartan Matter LED Applique for Zone 2
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance output level 2750 lm
- BASE CONSOMATION (20W)
- Easy installation and maintenance
- Urgenves lighting variant
- Large operating temperature - 50 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance output level 2750 lm
- BASE CONSOMATION (20W)
- Easy installation and maintenance
- Urgenves lighting variant
- Large operating temperature - 50 ° C to + 55 ° C
- 5 years warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The Spartan Flood range is designed for dangerous zone environments that require high performance and reliable white light lighting. The Flood range is available with a backup battery and delivering 4,650 lumens, the BL24 Flood is ideal for lighting smaller areas. It uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-BL24-W-1010-SP, SPZ-BL24-W-1010-SP48, SPZ-BL24-W-1010-EMX25 -SP, SPZ-BL24-W-1010- EMX25 -SP48, SPZ-BL24-W-3030-SP, SPZ-BL24-W-3030-SP48, SPZ-BL24-W-3030-EMX25-SP, SPZ-BL24-W-3030- EMX25-SP48, SPZ-BL24-W-5050-SP, SPZ-BL24-W-5050-SP48, SPZ-BL24-W-5050-EMX25-SP, SPZ-BL24-W-5050- EMX25-SP48, SPZ-BL24-W-8080-SP, SPZ-BL24-W-8080-SP48, SPZ-BL24-W-8080-EMX25-SP, SPZ-BL24-W-8080- EMX25-SP48, SPZ-BL24-W-120120-SP, SPZ-BL24-W-120120-SP48, SPZ-BL24-W-120120-EMX25-SP, SPZ-BL24- W-120120-EMX25-SP48, SPZ-BL24-W-3510-SP, SPZ-BL24-W-3510-SP48, SPZ-BL24-W-3510-EMX25-SP, SPZ-BL24 -W-3510-EMX25-SP48, SPZ-BL24-W-6025-SP, SPZ-BL24-W-6025-SP48, SPZ-BL24-W-6025-EMX25-SP, SPZ- BL24-W-6025-EMX25-SP48, SPZ-BL24-W-8030-SP, SPZ-BL24-W-8030-SP48, SPZ-BL24-W-8030-EMX25-SP, SPZ- BL24-W-8030-EMX25-SP48, SPZ-BL24-W-12050-SP, SPZ-BL24-W-12050-SP48, SPZ-BL24-W-12050-EMX25-SP, SPZ-BL24-W-12050-EMX25-SP48
| Ambiant temperature | -50°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | CML 17ATEX4231 |
| Certificat_iecex-en_us | IECEX CML 17.0135 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 20w |
| Light power | 2500lm |
| 2750lm | 1 |
