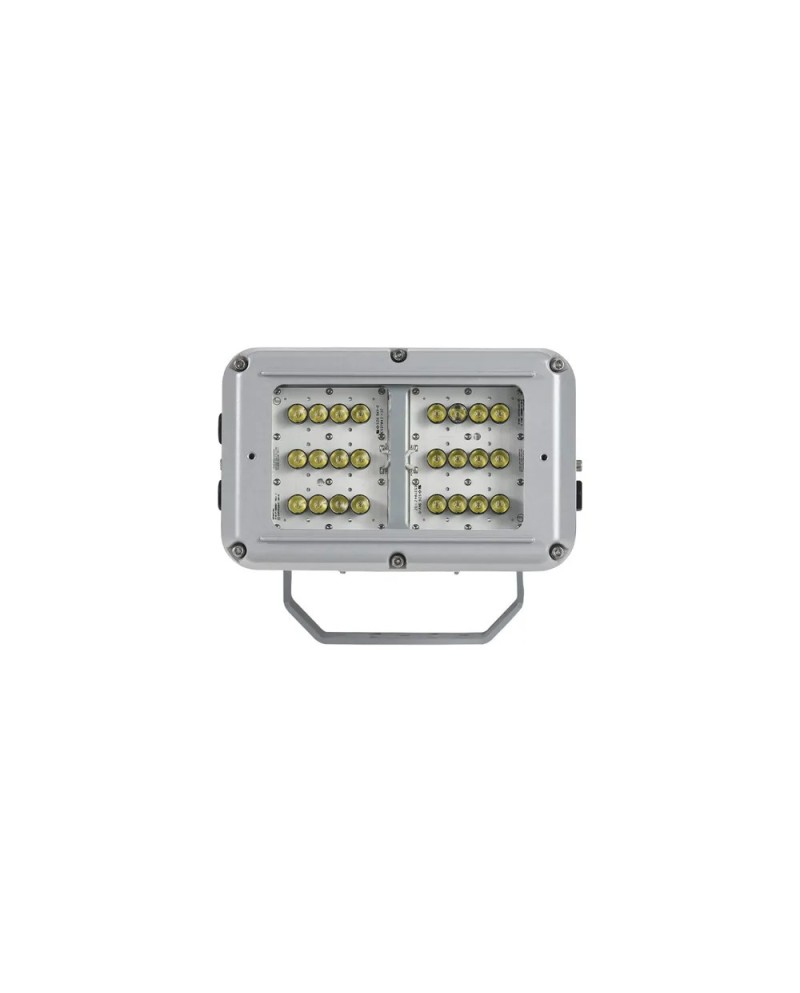

Projectorled strong Power Spartan BL24 for Zone 2

- IP66, 67
- Ambient temperature: - 20 ° C to + 55 ° C
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The Spartan BL24 LED projector, specially designed for use in 2/22 zone, offers high-performance lighting suitable for environments with moderate risk of explosive atmospheres (gas and dust). With its high intensity white light, it delivers optimum light power and a precise directional beam of 10 ° x 10 °, ensuring effective lighting for areas requiring a specific light concentration. This version is equipped with an intelligent rescued mode, ensuring 25% operation of its nominal power in the event of a power failure. This feature guarantees minimal visibility under emergency conditions, strengthening the safety of critical industrial facilities.
References Manufacturer: SPZ-BL24-HO-W-1010-EMX25 -SB30, SPZ-BL24-HO-W-3030-EMX25-SB30, SPZ-BL24-HO-W-5050- EMX25-SB30, SPZ-BL24-HO-W-8080-EMX25-SB30, SPZ-BL24-HO-W-120120-EMX25-SB3, SPZ-BL24-HO-W- 3510-EMX25-SB30, SPZ-BL24-HO-W-6025-EMX25-SB30, SPZ-BL24-HO-W-8030-EMX25-SB30, SPZ-BL24-HO- W-12050-EMX25-SB30
Ambiant temperature -20°C to +55°C
Temperature class T4
Warranty 5 year warranty (s)
Feed 110-254V AC
Waterproofing protection (IP) Ip66.ip67
Application / usage ATEX zone
ATEX zone Zone 2/22
Gas class IIC
Certificates ATEX.IECEx.UKCA
Frequency (Hz) 50 / 60hz
Certificat_atex-en_us CML 17ATEX4231
Certificat_iecex-en_us IEC EX CML17.0135
Body colors Silver (RAL 9006)
Light source LED
Color temperature 6500k
Power 24w
Light power 2750lm
34w 1
4650lm 1
-50 ° C to + 55 ° C 1
Reference RTC0189
