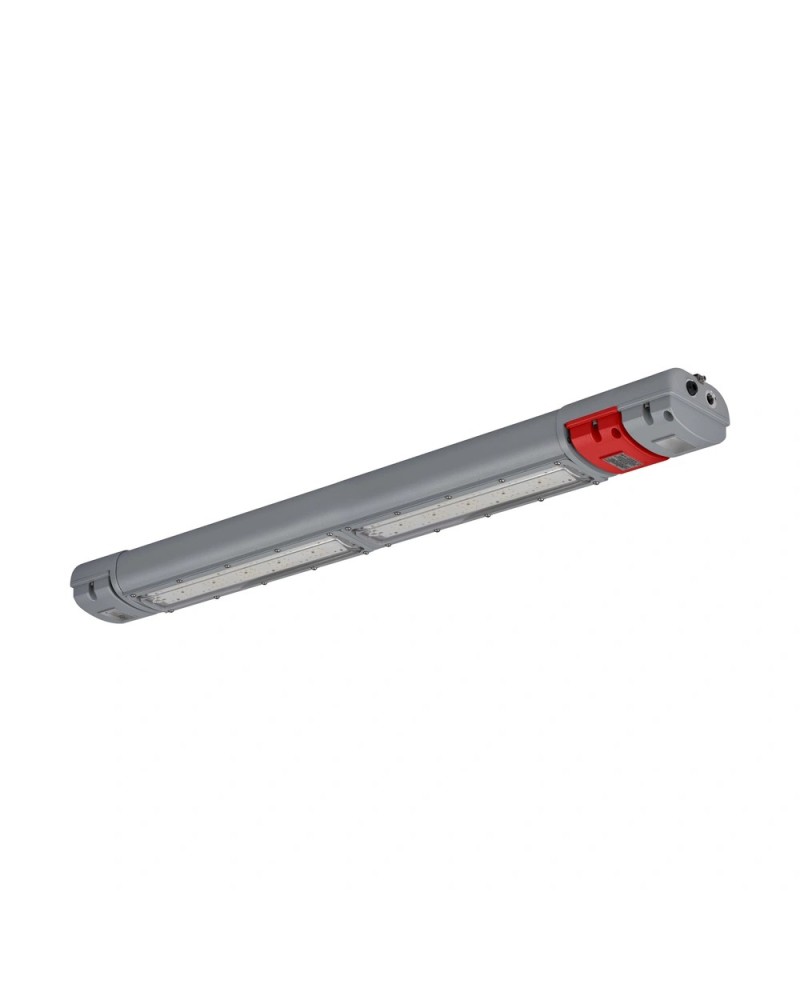

Linear Luminaire WL168 Spartan Zone 2/22 - Intelligent Rescued Version (25% Output)
- ATEX Certified and IEC Ex - Zone 2/22
- Light power: 7048lm
- Consumption: 56W
- Aluminum marine quality body and stainless steel accessories.
- IP66 / 67 - IK10
- Large operating temperature -40 ° C to + 60 ° C
- 5 year warranty
- Light power: 7048lm
- Consumption: 56W
- Aluminum marine quality body and stainless steel accessories.
- IP66 / 67 - IK10
- Large operating temperature -40 ° C to + 60 ° C
- 5 year warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The LED Spartan WL168 LED Linear Lighting, Certified Zone 2/22, is specifically designed for industrial and commercial environments where explosion risks may be present, but in lower-risk areas than those classified area 1/21. This model complies with safety standards for class 2 areas (gas zone) and 22 (dust zone), providing increased safety while ensuring optimal lighting in these sensitive environments.
References Manufacturer: SPZ-WL168-EMX25
| Ambiant temperature | -40°C to +55°C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum |
| Certificat_atex-en_us | Cml15atex4138 |
| Certificat_iecex-en_us | IEC EX CML15.0068 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 56w |
| Light power | 7048lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
