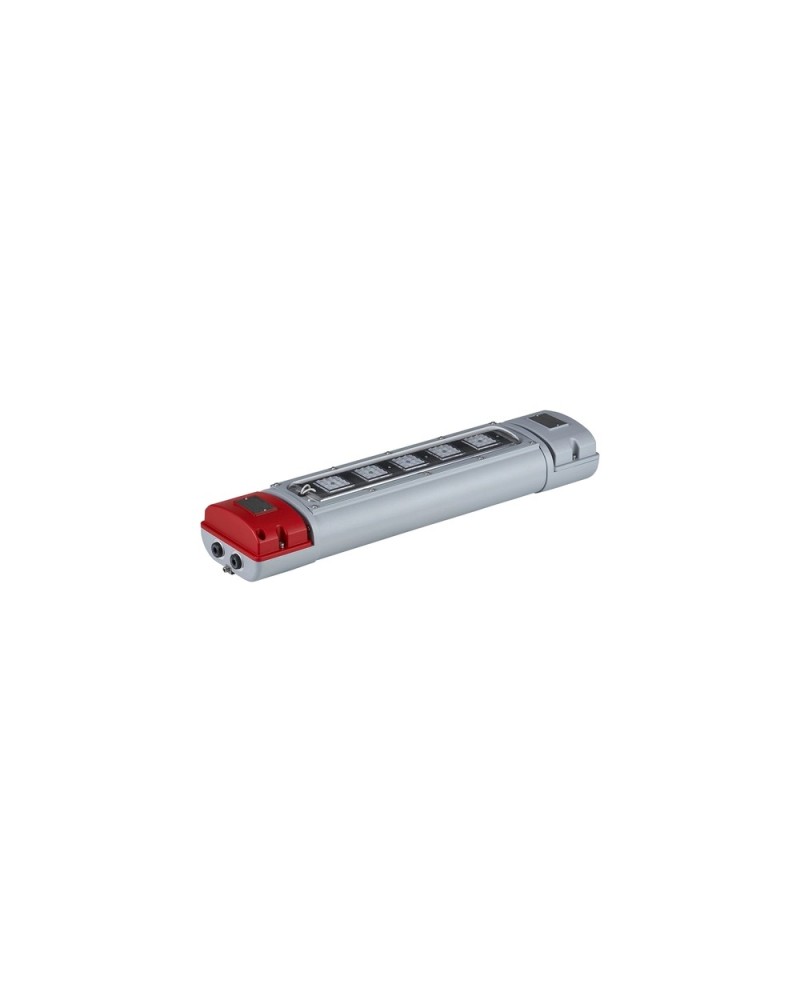

LED LED LED Spartan WL84, Strong Power, Zone 1/21 - Intelligent Rescued Version (25% Output)

- Certified ATEX and IEC EX - ZONE 1/21
- LED ultra long duration and high efficiency
- High performance exit level: 6130lm
- Low consumption: 56W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- 5 year warranty
  Garanties sécurité

(à modifier dans le module "Réassurance")

  Politique retours

(à modifier dans le module "Réassurance")

  Politique de livraison

(à modifier dans le module "Réassurance")



The Spartan Linear High Output range is the ideal solution for new facilities in hazardous areas. It offers a luminous flow twice that of the standard linear Spartan, while maintaining aesthetics and comfort of use. Thanks to its increased power, the installation requires fewer luminaires with respect to traditional linear luminaires. In addition, the Spartan Linear High Output is an economical alternative to low height luminaires. The Linear Spartan has been designed to provide extreme durability and has a unique modular design that simplifies and accelerates maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and benefit from a 5-year warranty, the best sector.
References Manufacturer: SPX-WL84-HO-EMX25
Ambiant temperature -20 ° C to + 50 ° C
Temperature class T4
Warranty 5 year warranty (s)
Feed 110-254V AC
Waterproofing protection (IP) Ip66.ip67
Application / usage ATEX zone
ATEX zone Zone 1/21
Gas class IIC
ATEX protection mode Ex e (increased security)
Certificates ATEX.CERTIF_ABS.IECEx.UKCA
Frequency (Hz) 50 / 60hz
Material Aluminum Marine Quality
Certificat_atex-en_us Cml14atex3119
Certificat_iecex-en_us Iecexcml15.0001
Body colors Silver (RAL 9006)
Light source LED
Color temperature 6500k
Power 56w
Light power 6130lm
Shock resistance index Ik10
Cable entry (s) 2xm20
Backup battery Nickel-cadmium (Ni / CD) 12V
Reference RTC0235
