LED LED LED Spartan WL168, Zone 1/21 - Intelligent Rescued Version (25% Output)
- Certified ATEX and IEC Ex – Field 1/21
- Light output: 6130lm
- Consumption : 56W
- Marine quality aluminum body and stainless steel accessories.
- IP66/67 - IK10
- Large operating temperature -40°C to +50°C
- 5-year warranty
- Light output: 6130lm
- Consumption : 56W
- Marine quality aluminum body and stainless steel accessories.
- IP66/67 - IK10
- Large operating temperature -40°C to +50°C
- 5-year warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

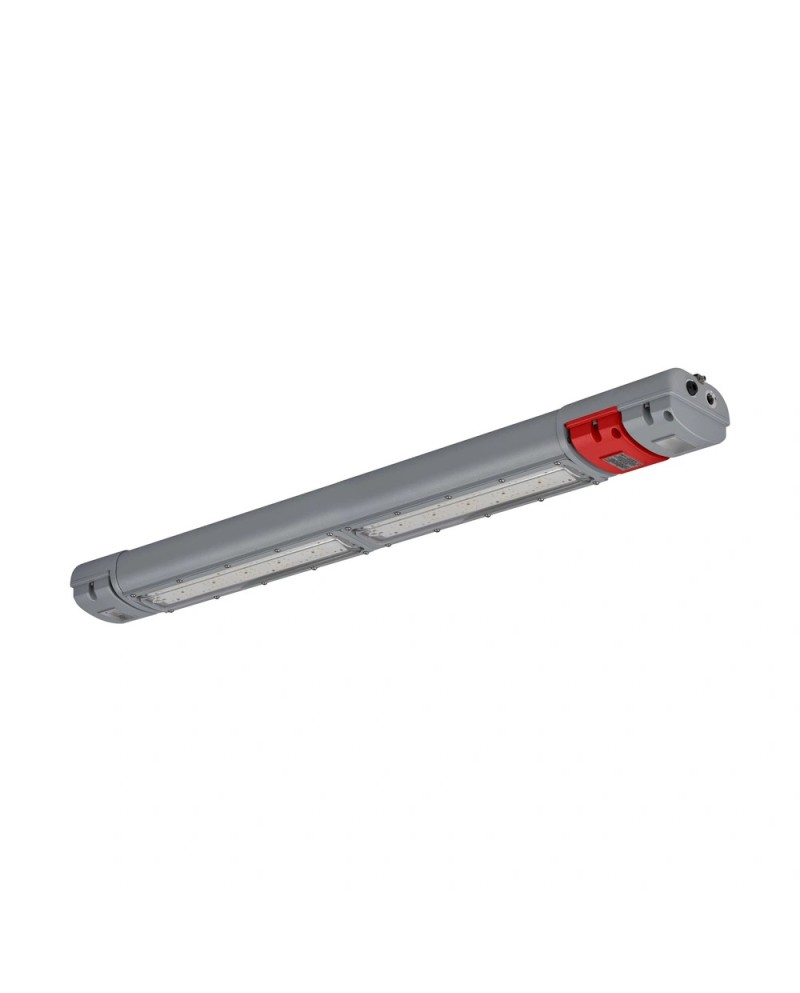

The SPARTAN WL168 Zone 1/21-certified LED Linear Light is a high-end lighting solution specially designed for industrial and commercial environments requiring high safety standards, especially in areas classified as hazardous, such as those where explosion risks may exist. Thanks to its Zone 1/21 certification, it is suitable for hazardous environments, thus providing maximum safety while ensuring reliable lighting performance.
References Manufacturer: SPX-WL168-EMX25,SPX-WL84-1200-EMX25
| Ambiant temperature | -40 ° to + 60 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/21 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum Marine Quality |
| Certificat_atex-en_us | Cml14atex3119 |
| Certificat_iecex-en_us | Iecexcml15.0001 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 56w |
| Light power | 6130lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| Backup battery | Nickel-cadmium (Ni / CD) 12V |
| 3065lm | 1 |
| 32w | 1 |
