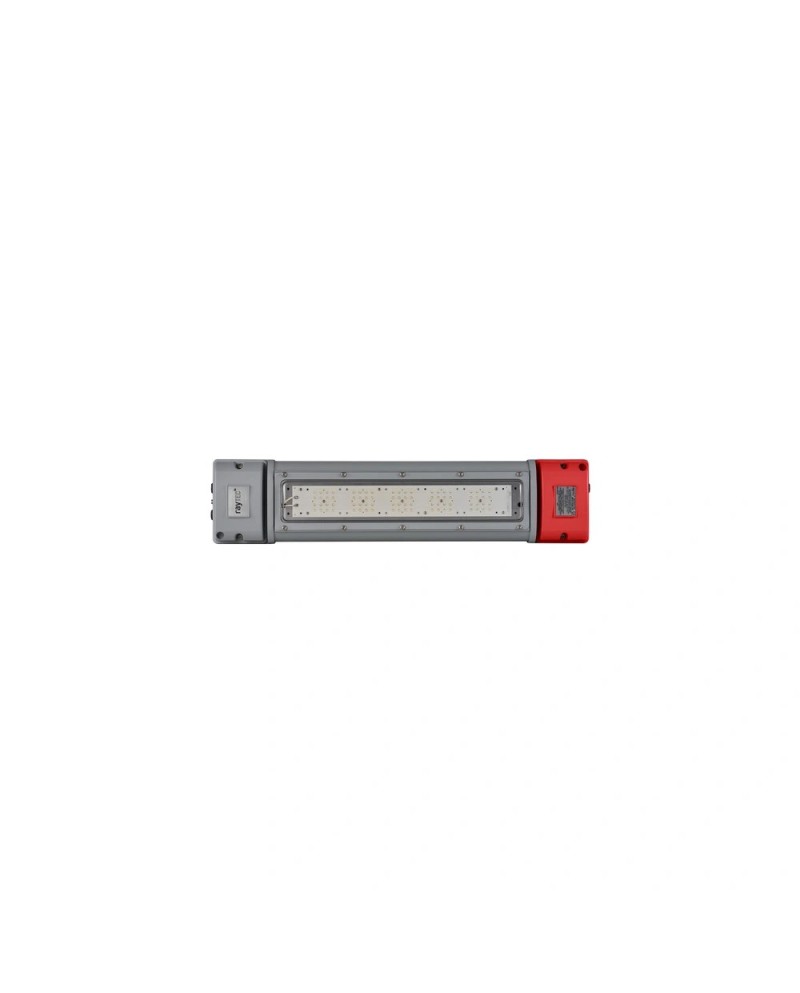

Linear Luminaire WL84 Spartan Zone 2/22 - Intelligent Rescued Version (25% Output)
- ATEX Certified and IEC Ex - Zone 2/22
- Ultra long duration LED
- High performance exit level 3524 lm
- Low consumption: 32W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 55 ° C
- 5 year warranty
- Ultra long duration LED
- High performance exit level 3524 lm
- Low consumption: 32W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 55 ° C
- 5 year warranty
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The LED Spartan WL84 linear luminaire is designed for installations in risk-based industrial environments, specifically for 2/22 areas where explosive atmospheres can be trained occasionally. It diffuses a clear and homogeneous white light, ensuring excellent visibility in these critical areas.
References Manufacturer: SPZ-WL84-EMX25, SPZ-WL84-1200-EMX25
| Ambiant temperature | -20 ° C to + 50 ° C |
|---|---|
| Temperature class | T4 |
| Warranty | 5 year warranty (s) |
| Feed | 110-254V AC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 2/22 |
| Gas class | IIC |
| ATEX protection mode | Ex e (increased security) |
| Certificates | ATEX.CERTIF_ABS.IECEx.UKCA |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum |
| Certificat_atex-en_us | Cml15atex4138 |
| Certificat_iecex-en_us | CEI EX CML15.0068 |
| Body colors | Silver (RAL 9006) |
| Light source | LED |
| Color temperature | 6500k |
| Power | 32w |
| Light power | 3524lm |
| Shock resistance index | Ik10 |
| Cable entry (s) | 2xm20 |
| -40 ° to + 60 ° C | 1 |
