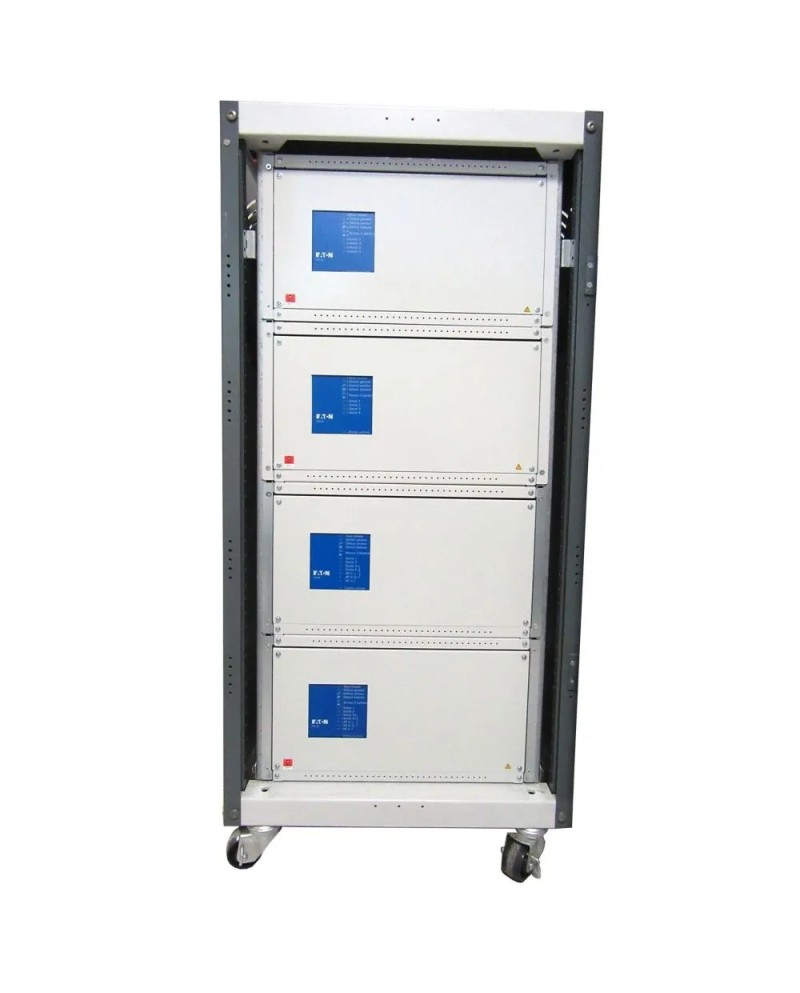

SPSM rack module
- IP30
- 4 independently protected outputs
- 1 unloaded output
- A signaling light by exit
- Variants in battery capacity in 7 Ah, 12 Ah (single box) and 24 AH (double housing)
- Variant in useful power of 50W to 150W
- Reinforced battery charge circuit
- 2 accessories allowing the 19 "rack
- Supplied with batteries
- Parameterized voltage levels in 26VDC, 48VCC or 56VCC (SPSMC)
- Output regulators converters: constant voltage and regulated independently of the battery level (SPSMC)
- 4 independently protected outputs
- 1 unloaded output
- A signaling light by exit
- Variants in battery capacity in 7 Ah, 12 Ah (single box) and 24 AH (double housing)
- Variant in useful power of 50W to 150W
- Reinforced battery charge circuit
- 2 accessories allowing the 19 "rack
- Supplied with batteries
- Parameterized voltage levels in 26VDC, 48VCC or 56VCC (SPSMC)
- Output regulators converters: constant voltage and regulated independently of the battery level (SPSMC)
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The new SPSM safety power supply range is an integral part of the fire safety system. They allow the power of the operating safety devices (DAS) and sound and luminous diffusers of the SSI. They can also feed specific detectors such as suction, linear or optical sectors. In addition, its protected multiple outputs and reported individually, allow you to supply several devices safely.
References Manufacturer: NUG34176, NUG34177
| Warranty | 2¨ |
|---|---|
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip30 |
| Application / usage | En-54 |
| Certificates | THIS |
| Body colors | Light gray (RAL 7032) |
