Deferred material 4 remote control lines for SENSEA.CM -A2S

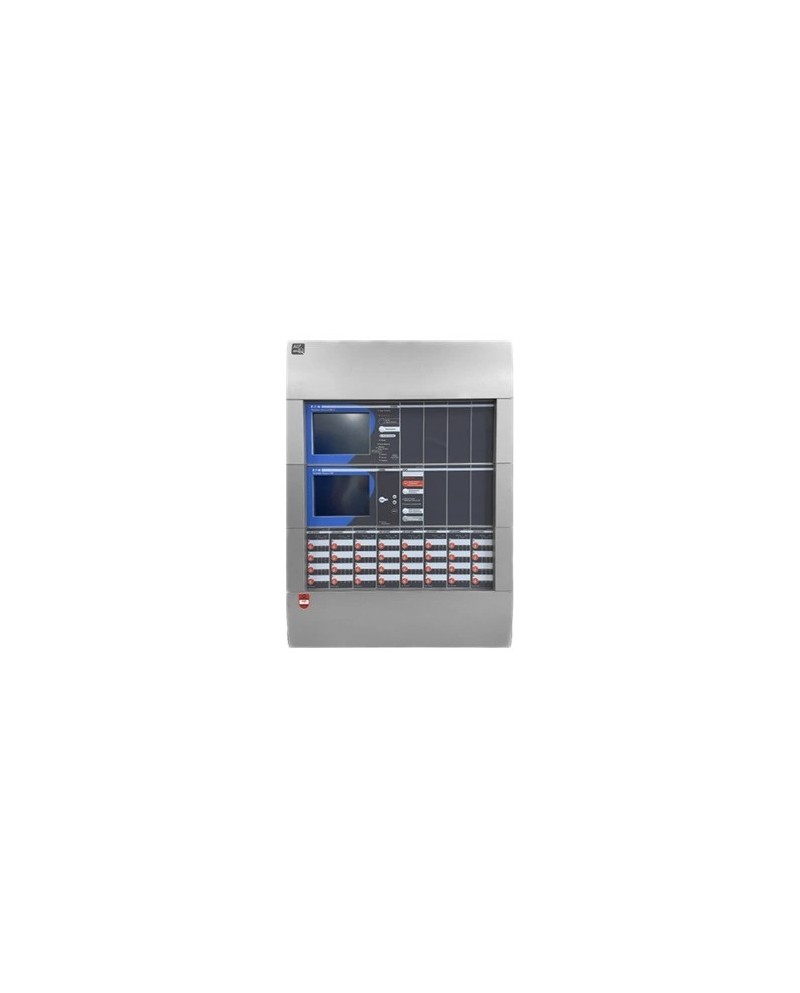

Deported module MD4

Name: Deported module MD4
Brand: Nugelec
SKU: CSE0231

- Dimensions: 482 x 668 x 232 mm
- Case: Metal background / plastic front
- Color: Metallic gray IP30 / IK03
- Autonomy: 12h standby - 15min alarm
- Integrated Alarm Management Unit (UGA)
- Large and intuitive touch screen
- Automatic addressing of devices (ad)
- 2 buckles of 128 or 4 lines of 32 manual triggers
- Triple case for adding additional cards

Garanties sécurité

(à modifier dans le module "Réassurance")

Politique retours

(à modifier dans le module "Réassurance")

Politique de livraison

(à modifier dans le module "Réassurance")

The remote materials connect to the CMSI transmission channels and allow the management of one to four DAS remote controls at maximum 5 das per line. They are all equipped with a buzzer to facilitate their location and commissioning. MD1, MD4 and MD4 + are used to manage on programming, emission remote lines or lack of voltage (and / MT), sound / light diffusers, waiting position and safety controls, a dry contact (MD1 only). The remote material addressable MDOD associated with the remote member NUG31273 is connected to a line of the CMSI of the range Sensea.CM. It consists of 4 outputs (remote control lines) with voltage transmission, lack of tension or sound and bright diffusers. Its switches allow addressing and its riders allow hardware configuration. The MD8R is equipped with 8 relays and allows to manage technical or non-stop controls.

References Manufacturer: NUG31643
