ATEX SERIES FSQC Take Base
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")

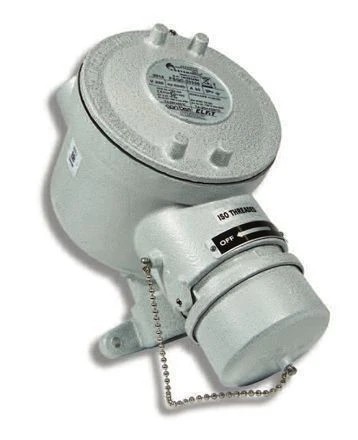

The FSQC series catches are constructed under models at 2 or 3 poles plus the earth. The power on the unit is done by the introduction of the plug, which acts on the internal switch and does not allow the formation of arcs between the cells and the pins of the socket and the plug.
References Manufacturer: FSQC-23310, FSQC-23315, FSQC-23320, FSQC-23330, FSQC-23340, FSQC-23350, FSQC-23363, FSQC-23410, FSQC-23415, FSQC-23420, FSQC-23430, FSQC-23440, FSQC-23450, FSQC-23463, FSQC- 33310, FSQC-33315, FSQC-33320, FSQC-33330, FSQC-33340, FSQC-33350, FSQC-33363, FSQC-33410, FSQC-33415, FSQC-33420, FSQC-33430, FSQC-33440, FSQC-33450, FSQC-33463
| Ambiant temperature | -20°C à + 50°C |
|---|---|
| Temperature class | T6 |
| Warranty | 2¨ |
| Protection étanchéité (IP) | IP66 |
| Application/Usage | Zone ATEX |
| Classe de gaz | IIC |
| Mode de protection ATEX | Ex d (antidéflagrant) |
| Certificats | ATEX.IECEx |
| Fréquence (Hz) | 50/60hz |
| Certificat_ATEX-fr_FR | CESI 14 ATEX 017X |
| Certificat_IECEx-fr_FR | CES 11.0011X |
| Couleurs corps | RAL7035 |
