List of products by brand RAYTEC

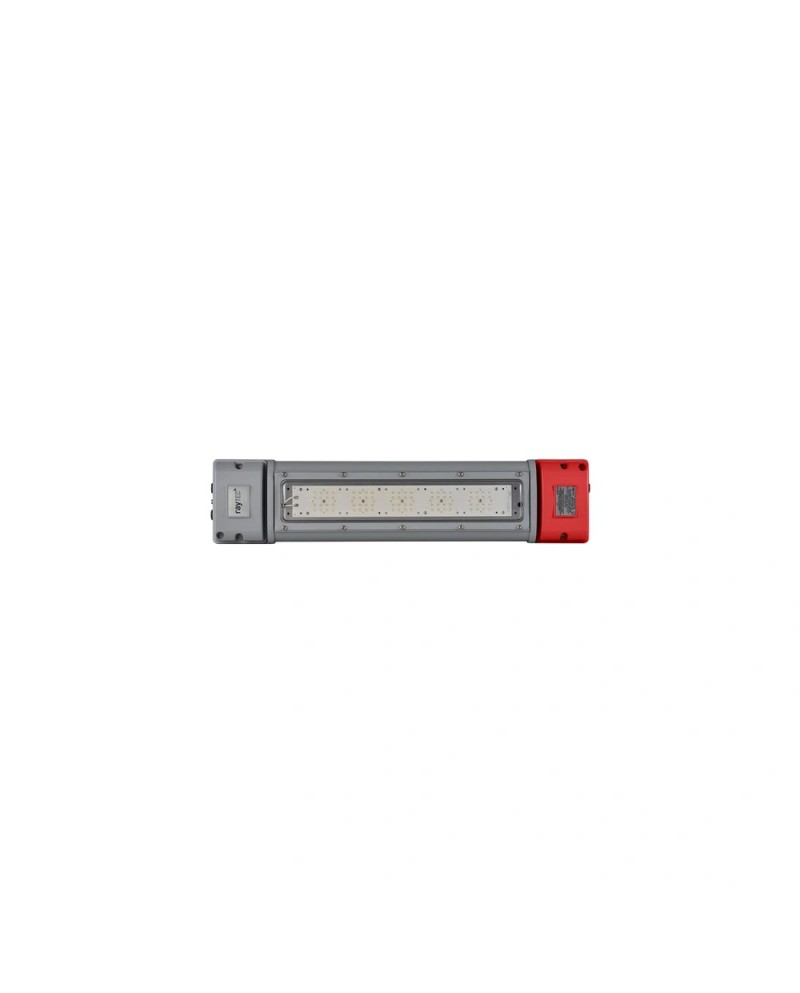

Linear LED luminaire SPARTAN WL84, zone 1/21 - smart version (25% Output)
- Certified ATEX and IEC Ex – Field 1/21
- Light output: 3065lm
- Consumption : 32W
- Marine quality aluminum body and stainless steel accessories.
- IP66/67 - IK10
- Large operating temperature -40 °C to +55 °C
- 5-year warranty
- Light output: 3065lm
- Consumption : 32W
- Marine quality aluminum body and stainless steel accessories.
- IP66/67 - IK10
- Large operating temperature -40 °C to +55 °C
- 5-year warranty
The Spartan Linear WL84 luminaire is designed to provide a reliable and efficient lighting solution in demanding environments. Certified for Zone 1/21, it is ideal for industrial applications where strict safety and performance standards are needed. This model produces a clear and clear white light, ensuring excellent visibility.
References Manufacturer: SPX-WL84-EMX25
RTC0236
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- IECExCML15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 3065lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- New
Medium Power Spartan LED Projector (MPFL) Zone 2/22 Certified ATEX and IEC Ex - Intelligent Rescued Version
- IP66, 67
- Ambient temperature: -40 ° C to + 60 ° C
- Color temperature: 5700K
- Light power: 16470lm
- Ambient temperature: -40 ° C to + 60 ° C
- Color temperature: 5700K
- Light power: 16470lm
The Spartan Mid Power projector is a powerful and reliable lighting device designed to provide an emergency lighting solution in demanding environments. It has an intelligent emergency version, guaranteeing a lighting time of 180 minutes in the event of a power failure. This projector produces an intense white light, offering a beam power of 15,000 lumens, ideal for illuminating areas of large area such as car parks, warehouses or public spaces. Its robust design and advanced technology make it an optimal choice to ensure security and visibility, even in case of emergency.
References Manufacturer: SPZ-MPFL15K-W-12015-EMX180, SPZ-MPFL15K-W-12015-EMX90, SPZ-MPFL15K-W-9090-EMX180, SPZ- MPFL15K-W-9090-EMX90, SPZ-MPFL15K-W-6060-EMX180, SPZ-MPFL15K-W-6060-EMX90, SPZ-MPFL15K-W-3030-EMX180, SPZ-MPFL15K-W-3030-EMX90, SPZ-MPFL15K-W-1010-EMX180, SPZ-MPFL15K-W-1010-EMX90, SPZ-MPFL12K5-W-12015- EMX180, SPZ-MPFL12K5-W-12015-EMX90, SPZ-MPFL12K5-W-9090-EMX180, SPZ-MPFL12K5-W-9090-EMX90, SPZ- MPFL12K5-W-6060-EMX180, SPZ-MPFL12K5-W-6060-EMX90, SPZ-MPFL12K5-W-3030-EMX180, SPZ-MPFL12K5-W-3030- EMX90, SPZ-MPFL12K5-W-1010-EMX180, SPZ-MPFL12K5-W-1010-EMX90, SPZ-MPFL10K-W-12015-EMX180, SPZ-MPFL10K -W-12015-EMX90, SPZ-MPFL10K-W-9090-EMX180, SPZ-MPFL10K-W-9090-EMX90, SPZ-MPFL10K-W-6060-EMX180, SPZ- MPFL10K-W-6060-EMX90, SPZ-MPFL10K-W-3030-EMX180, SPZ-MPFL10K-W-3030-EMX90, SPZ-MPFL10K-W-1010-EMX180, SPZ-MPFL10K-W-1010-EMX90, SPZ-MPFL7K5-W-12015-EMX180, SPZ-MPFL7K5-W-12015-EMX90, SPZ-MPFL7K5-W- 9090-EMX180, SPZ-MPFL7K5-W-9090-EMX90, SPZ-MPFL7K5-W-6060-EMX180, SPZ-MPFL7K5-W-6060-EMX90, SPZ- MPFL7K5-W-3030-EMX180, SPZ-MPFL7K5-W-3030-EMX90, SPZ-MPFL7K5-W-1010-EMX180, SPZ-MPFL7K5-W-1010- EMX90, SPZ-MPFL5K-W-12015-EMX180, SPZ-MPFL5K-W-12015-EMX90, SPZ-MPFL5K-W-9090-EMX180, SPZ-MPFL5K- W-9090-EMX90, SPZ-MPFL5K-W-6060-EMX180, SPZ-MPFL5K-W-6060-EMX90, SPZ-MPFL5K-W-3030-EMX180, SPZ- MPFL5K-W-3030-EMX90, SPZ-MPFL5K-W-1010-EMX180, SPZ-MPFL5K-W-1010-EMX90
RTC0223
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML21ATEX3320
- Certificat_IECEx-fr_FR
- IEC Ex CML21
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 120W
- Light power
- 13680lm
- Entrée(s) de câble
- 2xM20
- 100W
- 1
- New
Modular recessed Spartan light fixture area 2/22 certified ATEX and IEC ex
- ATEX Certified and IEC Ex - Zone 2/22
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
The brand new Spartan Recess Modular range has a unique modular design, designed to be light, with access from below and over the ceiling for simplified installation and maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the market.
References Manufacturer: SPZ-RCM66, SPZ-RCM612, SPZ-RCM312
RTC0211
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium avec revêtement en poudre époxy (option en acier inoxydable disponibles sur demande)
- Certificat_ATEX-fr_FR
- CML 23ATEX5450X
- Certificat_IECEx-fr_FR
- IECEx CML 23.0150X
- Couleurs corps
- Blanc traffic (RAL 9016)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 23W
- Light power
- 3700lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- 46W
- 1
- 7400lm
- 1
- New
Projectorled strong Power Spartan BL24 for Zone 2
- IP66, 67
- Ambient temperature: - 20 ° C to + 55 ° C
- Ambient temperature: - 20 ° C to + 55 ° C
The Spartan BL24 LED projector, specially designed for use in 2/22 zone, offers high-performance lighting suitable for environments with moderate risk of explosive atmospheres (gas and dust). With its high intensity white light, it delivers optimum light power and a precise directional beam of 10 ° x 10 °, ensuring effective lighting for areas requiring a specific light concentration. This version is equipped with an intelligent rescued mode, ensuring 25% operation of its nominal power in the event of a power failure. This feature guarantees minimal visibility under emergency conditions, strengthening the safety of critical industrial facilities.
References Manufacturer: SPZ-BL24-HO-W-1010-EMX25 -SB30, SPZ-BL24-HO-W-3030-EMX25-SB30, SPZ-BL24-HO-W-5050- EMX25-SB30, SPZ-BL24-HO-W-8080-EMX25-SB30, SPZ-BL24-HO-W-120120-EMX25-SB3, SPZ-BL24-HO-W- 3510-EMX25-SB30, SPZ-BL24-HO-W-6025-EMX25-SB30, SPZ-BL24-HO-W-8030-EMX25-SB30, SPZ-BL24-HO- W-12050-EMX25-SB30
RTC0189
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IEC Ex CML17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 2750lm
- 34W
- 1
- 4650lm
- 1
- -50°C à +55°C
- 1
- New
Industrial LED projector strong power Warrior HPFL
- IP66
- LED ultra long duration and high efficiency
- High performance output level 22971 lm
- Easy installation and maintenance
- Large operating temperature -50 ° C to + 50 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance output level 22971 lm
- Easy installation and maintenance
- Large operating temperature -50 ° C to + 50 ° C
- 5 years warranty
The Warrior High Power Flood range is designed to illuminate large open spaces in industrial environments. Available with a range of different powers ranging from 20,000 to 34,000 lumens, the High Power Flood uses Raytec's proven long-life LED technology to ensure a lifetime of more than 10 years. All Warrior luminaires benefit from a 5-year warranty, the best sector.
References Manufacturer: SPI-HPFL30K-W-3030, SPI-HPFL30K-W-6060, SPI-HPFL30K-W-9090, SPI-HPFL25K-W-3030, Spi- HPFL25K-W-6060, SPI-HPFL25K-W-9090, SPI-HPFL20K-W-3030, SPI-HPFL20K-W-6060, SPI-HPFL20K-W- 9090
RTC0062
Data sheet
- Ambiant temperature
- -50°C to +50°C
- Warranty
- Garantie 5 an(s)
- Feed
- 150-264V
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Industrie
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 300W
- Light power
- 30000lm
- Entrée(s) de câble
- 2xM20
- 200W
- 1
- 22971lm
- 1
- New
High Power LED Spartan HPFL Projector for 1/21 Zone (IB)
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- Powers of 20,000 to 30,000 lumens
- Large operating temperature: -50 ° to + 55 °
- Easy installation and maintenance
- 5 year warranty
- Ultra long duration LED
- Powers of 20,000 to 30,000 lumens
- Large operating temperature: -50 ° to + 55 °
- Easy installation and maintenance
- 5 year warranty
The Spartan High Power Flood range is an ATEX LED projector designed to illuminate large open spaces in dangerous environments. Available with a range of different powers ranging from 20,000 to 30,000 lumens, the High Power Flood uses long-lasting LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-HPFL30K-W-3030, SPX-HPFL30K-W-6060, SPX-HPFL30K-W-9090, SPX-HPFL25K-W-3030, SPX- HPFL25K-W-6060, SPX-HPFL25K-W-9090, SPX-HPFL20K-W-3030, SPX-HPFL20K-W-6060, SPX-HPFL20K-W- 9090
RTC0048
Data sheet
- Ambiant temperature
- -50°C to +50°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 150-264V
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIB
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML17ATEX1148
- Certificat_IECEx-fr_FR
- IECEx CML 17.0074
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 300W
- Light power
- 19423lm
- Entrée(s) de câble
- 2xM20
- IP66
- 1
- 200W
- 1
- New
LED LED LED Urban 168, White Light, 4000K
- IP66 & 67 - IK10
- Urban Linear offers a luminous flow up to 11 106 lm,
- Low consumption (72W)
- Easy installation and maintenance
- Emergency lighting variant
- 5 year warranty
- Urban Linear offers a luminous flow up to 11 106 lm,
- Low consumption (72W)
- Easy installation and maintenance
- Emergency lighting variant
- 5 year warranty
The Urban Linear range has been specially designed for industrial applications to provide the highest levels of performance, efficiency and control. Offering up to 11 106 LM, Urban Linear is available with symmetrical and asymmetric optics to reduce the waste of light, and is supplied with a flying cable 2 meters long for easy installation. LEDs are housed in their own custom box for optimal performance and reliability. Urban Linear is also delivered as standard with DALI 2.0. All Urban luminaires are designed and manufactured in the UK and benefit from a 5-year warranty, the best of the sector.
References Manufacturer: UB-WL168-4K, UB-WL168-EMX10-4K
RTC0032
Data sheet
- Warranty
- Garantie 5 an(s)
- Feed
- 12V AC/DC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Zone ATEX
- Zone 1/21
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 4000K
- Indice de résistance aux chocs
- IK10
- New
Linear Luminaire LED Spartan Safety Shower WL168 for Zone 1
LED ultra long duration
- High brightness LED
- Fully retrobable
- Easy installation and maintenance
- Extended operating temperature -40 ° to + 60 ° (-20 ° to + 50 ° for emergency variants)
- High brightness LED
- Fully retrobable
- Easy installation and maintenance
- Extended operating temperature -40 ° to + 60 ° (-20 ° to + 50 ° for emergency variants)
The Spartan Linear range is designed for new facilities in dangerous areas or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year and over life while providing a luminous flux up to 6,240 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPX-WL168-G, SPX-WL168-EMX25-G
RTC0012
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T6
- Warranty
- Garantie 5 an(s)
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- IECExCML15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 6130lm
- Indice de résistance aux chocs
- IK10
- New
Spartan Projector FL48 LED, Zone 1/21, White Light - Intelligent Rescue (25% Output)
- IP66, 67
- Ambient temperature: -20 ° C to + 55 ° C
- Color temperature: 6000K
- Light power: 16900lm
- Ambient temperature: -20 ° C to + 55 ° C
- Color temperature: 6000K
- Light power: 16900lm
The Spartan Flood 48 LED is a high-performance projector designed to provide powerful and accurate lighting. Featuring 48 high quality LEDs, it generates a white light beam with an opening of 30 ° x 30 °, ideal for applications requiring uniform and efficient light coverage. This model is specially designed to adapt to professional, industrial or safe environments where high-intensity lighting is required.
References Manufacturer: SPX-FL48-W-3030-EM25, SPX-FL48-W-8080-EM25, SPX-FL48-W-3510-EM25, SPX-FL48-W-8030-EM25
RTC0250
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML13ATEX3007
- Certificat_IECEx-fr_FR
- CEI Ex CML 14.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 139W
- Light power
- 16900lm
- 6500K
- 1
- New
LED LED LED Spartan WL168, Zone 1/21 - Intelligent Rescued Version (25% Output)
- Certified ATEX and IEC Ex – Field 1/21
- Light output: 6130lm
- Consumption : 56W
- Marine quality aluminum body and stainless steel accessories.
- IP66/67 - IK10
- Large operating temperature -40°C to +50°C
- 5-year warranty
- Light output: 6130lm
- Consumption : 56W
- Marine quality aluminum body and stainless steel accessories.
- IP66/67 - IK10
- Large operating temperature -40°C to +50°C
- 5-year warranty
The SPARTAN WL168 Zone 1/21-certified LED Linear Light is a high-end lighting solution specially designed for industrial and commercial environments requiring high safety standards, especially in areas classified as hazardous, such as those where explosion risks may exist. Thanks to its Zone 1/21 certification, it is suitable for hazardous environments, thus providing maximum safety while ensuring reliable lighting performance.
References Manufacturer: SPX-WL168-EMX25,SPX-WL84-1200-EMX25
RTC0237
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- IECExCML15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 56W
- Light power
- 6130lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Batterie de secours
- Nickel-cadmium (Ni/Cd) 12V
- 3065lm
- 1
- 32W
- 1
- New
LED LED Spartan Strong Recessed Power Zone 2/22 Certified ATEX and IEC EX
- IP65, IK10
- Ambient temperature: -40 ° C to + 60 ° C
- Electric path; 32w
- Color: RAL9016
- Zone: 2/22
- Ambient temperature: -40 ° C to + 60 ° C
- Electric path; 32w
- Color: RAL9016
- Zone: 2/22
The recessed luminaire SPZ-RCP314 has a light yield of 3079 lumens. In addition, there is an emergency version, the SPZ-RCP314 -EMX25, which delivers an impressive 6158 lumens, ideal for environments requiring significantly brighter lighting. The Spartan Recess Spz-RCP308 luminaire is a versatile 5 kg luminaire. Its 275 x 800 version offers multiple mounting options, allowing a ceiling, ground or wall facility. This flexibility makes it suitable for various applications and environments, providing effective lighting while harmonizing with different interior fittings. Thanks to its adaptable installation options, the SPX-RCP314 improves both the feature and the aesthetics of many environments.
References Manufacturer: SPZ-RCP314-HO
RTC0213
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium avec revêtement en poudre époxy (option en acier inoxydable disponibles sur demande)
- Certificat_ATEX-fr_FR
- CML 23ATEX5450X
- Certificat_IECEx-fr_FR
- IECEx CML 23.0150X
- Couleurs corps
- Blanc traffic (RAL 9016)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3700lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Angle de faisceau
- 120x120°
- New
Spartan FL24 LED Projector, Zone 2/22, White-Light - Intelligent Rescued Version (50% Output)
- ATEX Certified and IEC Ex - Zone 2
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- Vario lens technology: easy modification of bundles
- 5 years warranty
- IR variants available
- backup battery
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- Vario lens technology: easy modification of bundles
- 5 years warranty
- IR variants available
- backup battery
This projector is distinguished by its robust design, thought to withstand demanding environments. It is made from sustainable materials, ensuring a long service life and constant performance, even in difficult conditions. With optimized energy consumption
References Manufacturer: SPZ-FL24-W-1010-EM50, SPZ-FL24-W-3030-EM50, SPZ-FL24-W-5050-EM50, SPZ-FL24-W-8080-EM50, SPZ- FL24-W-120120-EM50, SPZ-FL24-W-3510-EM50, SPZ-FL24-W-6025-EM50, SPZ-FL24-W-8030-EM50, SPZ-FL24-W- 12050-EM50
RTC0190
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML17ATEX4231
- Certificat_IECEx-fr_FR
- IEC Ex CML 17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 71W
- Light power
- 9300lm
- Entrée(s) de câble
- 2xM20
- 6500K
- 1
- New
Bay LED Medium Power Industrial Spartan Mpby
- IP66 & 67
- LED ultra long duration and high efficiency
- Level of high performance 12873 lm
- BASE CONSOMATION (120W)
- Easy installation and maintenance
- Large operating temperature -40 ° C to + 60 ° C
- 5 years warranty
-
- LED ultra long duration and high efficiency
- Level of high performance 12873 lm
- BASE CONSOMATION (120W)
- Easy installation and maintenance
- Large operating temperature -40 ° C to + 60 ° C
- 5 years warranty
-
The Warrior Mid-Power Bay range is designed to illuminate large open spaces in industrial environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the Mid-Power Bay uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Warrior luminaires benefit from a 5-year warranty, the best sector.
References Manufacturer: SPI-MBY15K-W-12015, SPI-MPBY15K-W-9090, SPI-MPBY15K-W-6060, SPI-MPBY15K-W-3030, SPI-MBBY15K-W-1010, spi-mpby12k5-w-12015, spi-mpby12k5-w-9090, spi-mpby12k5-w-6060, spi-mpby12k5-w-3030, spi-mpby12k5-w-1010, spi-mpby10k-w-12015, spi-mpby10k-w-9090, spi-mpby10k-w-6060, spi-mpby10k-w-3030, spi-mpby10k-w-1010, spi- mpby7k5-W-12015, spi-mpby7k5-w-9090, spi-mpby7k5-w-6060, spi-mpby7k5-w-3030, spi-mpby7k5-w-1010, spi- mpby5k-w-12015, spi-mpby5k-w-9090, spi-mpby5k-w-6060, spi-mpby5k-w-3030, spi-mpby5k-w-1010
RTC0106
Data sheet
- Ambiant temperature
- -40° à +60°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 120W
- Light power
- 10000lm
- 40W
- 1
- 150-264V
- 1
- 5000K
- 1
- New
Linear LED Industrial LED Lighting Strong Warrior WL84 Power
- LED ultra long duration and high brightness
- Low consumption: 48W
- Light power: 7048lm
- Robust and durable: IP66 / 67 and IK10
- Extended operating temperature -40 ° to + 60 ° C
- OPTIONAL DALI 2.0 technology
- Easy installation and maintenance
- 5 year warranty
- Low consumption: 48W
- Light power: 7048lm
- Robust and durable: IP66 / 67 and IK10
- Extended operating temperature -40 ° to + 60 ° C
- OPTIONAL DALI 2.0 technology
- Easy installation and maintenance
- 5 year warranty
The Warrior Linear range is designed to modernize conventional fluorescent luminaires or for use in new facilities. Designed to provide extreme levels of sustainability and with a unique modular design that makes maintenance fast and easy. All Warrior luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the sector.
References Manufacturer: SPI-WL84-HO, SPI-WL84-HO-EMX25
RTC0104
Data sheet
- Ambiant temperature
- -40°C à +50°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE.CERTIF_UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 3524lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- -20°C à + 50°C
- 1
- 7048lm
- 1
- 56W
- 1
- New
High Power LED Spartan HPFL Projector for 1/21 Zone (IB + H2)
- IP66
- Ambient temperature: -50 ° C to + 50 ° C
- Ambient temperature: -50 ° C to + 50 ° C
The HPFL Spartan projector is designed for hazardous environments in 1/21 zone (IB + H2). With an intense white light producing 20,000 lumens, it offers exceptional lighting with a precise beam of 30 ° x 30 °. This projector is ideal for demanding industrial applications, ensuring optimal performance and safety in extreme conditions.
References Manufacturer: SPX-HPFL30K-W-3030-H2, SPX-HPFL30K-W-6060-H2, SPX-HPFL30K-W-9090-H2, SPX-HPFL25K- W-3030-H2, SPX-HPFL25K-W-6060-H2, SPX-HPFL25K-W-9090-H2, SPX-HPFL20K-W-3030-H2, SPX- HPFL20K-W-6060-H2, SPX-HPFL20K-W-9090-H2
RTC0049
Data sheet
- Ambiant temperature
- -50°C to +50°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 150-264V
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIB
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML17ATEX1148
- Certificat_IECEx-fr_FR
- IECEx CML 17.0074
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 300W
- Light power
- 19423lm
- 200W
- 1
- New
LED LED LED Spartan WL84 for Zone 2
- ATEX Certified and IEC Ex - Zone 2/22
- Ultra long duration LED
- High performance exit level 3524 lm
- Low consumption: 24W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
- Ultra long duration LED
- High performance exit level 3524 lm
- Low consumption: 24W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL84 Linear is globally certified for all zone 2. Applications. The overall dimensions, mounting centers and cable glands are compatible with 2x18W common fluorescents, with a luminous flow and A distribution of light also offering a direct replacement. The CoolXtrude ™ Thermal Management Technology provides a life of 10 years and more while providing a luminous flux up to 3,524 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL84, SPZ-WL84-EMX25, SPZ-WL84-LL, SPZ-WL84-1200, SPZ-WL84-1200-EMX25
RTC0015
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 12V AC/DC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML15ATEX4138
- Certificat_IECEx-fr_FR
- IEC Ex CML15.0068
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Chargeur
- 1¨
- Light power
- 3524lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Zone 2/22
- 1
- 110-254V AC
- 1
- 3065lm
- 1
- New
Spartan FL24 LED projector, 1/21 area, white light - intelligent rescued version (50% output)
- IP66,67
- Ambient temperature: -20 ° C to + 55 ° C
- 6000K color temperature
- Light power: 8200lm
- Ambient temperature: -20 ° C to + 55 ° C
- 6000K color temperature
- Light power: 8200lm
The Spartan Flood 24 LED is a high performance LED projector, designed to provide powerful and reliable lighting, particularly suitable for emergency situations. It offers a white light beam with an opening of 120 ° X120 °, allowing a wide and uniform cover. Its emergency version provides a 50% reduced light output when an emergency power supply is used, ensuring energy efficiency while maintaining sufficient visibility in the event of a failure. This product is ideal for use in areas such as public spaces or industrial facilities requiring an emergency lighting solution.
References Manufacturer: SPX-FL24-W-5050-EM50, SPX-FL24-W-120120-EM50, SPX-FL24-W-6025-EM50, SPX-FL24-W-12050-EM50
RTC0251
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML13ATEX3007
- Certificat_IECEx-fr_FR
- CEI Ex CML 14.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 2500lm
- -20°C à +55°C
- 1
- 6000K
- 1
- 71W
- 1
- New
LED LED LED Spartan WL84 Spigot Mount, Zone 1/21 - Intelligent Rescued Version (25% Output)
- IP66,67 -IK10
- Ambient temperature: -40 ° C to + 60 ° C
- Ambient temperature: -40 ° C to + 60 ° C
The LED Spartan WL84 linear luminaire is a powerful industrial lighting designed for demanding environments, specifically for 1/21 explosion zones. It offers intense and clear white light, ideal for applications requiring optimal visibility.
References Manufacturer: SPX-WL84-EMX25-SP
RTC0238
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- CEI Ex CML 15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3065lm
- Indice de résistance aux chocs
- IK10
- New
LED LED Spartan Recessed Zone 2/22 Certified ATEX and IEC EX
- IP65, IK10
- Ambient temperature: -40 ° C to + 60 ° C
- Luminous efficiency on mains: 3700lm
- Tricolor LED indicator
- Ambient temperature: -40 ° C to + 60 ° C
- Luminous efficiency on mains: 3700lm
- Tricolor LED indicator
The Spartan Receive range offers a state-of-the-art modular design that favors both lightness and accessibility, making installation and maintenance a breeze, as well above below the ceiling. Proudly designed and manufactured in the United Kingdom, all Spartan luminaires benefit from an exceptional 5-year warranty, guaranteeing peace of mind and sustainable performance. This innovative range is ideal for those looking for solutions
References Manufacturer: SPZ-RCP308, SPZ-RCP314
RTC0214
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium avec revêtement en poudre époxy (option en acier inoxydable disponibles sur demande)
- Certificat_ATEX-fr_FR
- CML 23ATEX5450X
- Certificat_IECEx-fr_FR
- IECEx CML 23.0150X
- Couleurs corps
- Blanc traffic (RAL 9016)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3700lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Mounting type
- Encastré
- Angle de faisceau
- 120x120°
- New
Spartan FL48 LED Projector for Zone 2
- IP66, 67
- Ambient temperature: -50 ° C to + 55 ° C
- Luminous power: 9300lm
- Color temperature: 6000 K
- Electrical power: 136W
- Ambient temperature: -50 ° C to + 55 ° C
- Luminous power: 9300lm
- Color temperature: 6000 K
- Electrical power: 136W
The Spartan FL48 LED projector is a high-performance lighting device designed to meet the needs of professionals in the entertainment, event and architectural lighting sectors. Thanks to its advanced LED technology, it offers high intensity white light, ideal for accurate and targeted lighting. The 10 ° x10 ° beam allows light to concentrate on a defined area, providing great flexibility for different types of applications, whether for scene lighting, a projection effect or architectural lighting.
References Manufacturer: SPZ-FL48-W-1010-EM25, SPZ-FL48-W-3030-EM25, SPZ-FL48-W-5050-EM25, SPZ-FL48-W-8080-EM25, SPZ-FL48-W-120120-EM25, SPZ-FL48-W-3510-EM25, SPZ-FL48-W-6025-EM25, SPZ-FL48-W-8030-EM25, SPZ- FL48-W-12050-EM25
RTC0191
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML17ATEX4231
- Certificat_IECEx-fr_FR
- IEC Ex CML 17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 139W
- Light power
- 18600lm
- New
Bay LED Medium Power Industrial Spartan Mpby
- IP 66
- LED ultra long duration and high efficiency
- High performance output level 28713 lm
- BASE CONSOMATION (250W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -50 ° C to + 50 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance output level 28713 lm
- BASE CONSOMATION (250W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -50 ° C to + 50 ° C
- 5 years warranty
The Warrior High Power Bay range is designed to illuminate large open spaces in dangerous environments. Available with a range of different powers ranging from 20,000 to 34,000 lumens, high power bay uses Raytec's long-term LED LED technology to ensure lifespan of more than 10 years. All Warrior luminaires benefit from a 5-year warranty, the best sector.
References Manufacturer: SPI-HPBY30K-W-3030, SPI-HPBY30K-W-6060, SPI-HPBY30K-W-9090, SPI-HPBY25K-W-3030, Spi- HPBY25K-W-6060, SPI-HPBY25K-W-9090, SPI-HPBY20K-W-3030, SPI-HPBY20K-W-6060, SPI-HPBY20K-W-9090
RTC0107
Data sheet
- Ambiant temperature
- -50°C to +50°C
- Warranty
- Garantie 5 an(s)
- Feed
- 150-264V
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Industrie
- Zone ATEX
- Zone 1/21
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 200W
- Light power
- 22971lm
- 250W
- 1
- New
Linear LED Industrial LED Lighting Strong Warrior WL168 Power
- LED ultra long duration and high efficiency
- High performance exit level: 14096lm
- Low consumption: 96W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 60 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
- High performance exit level: 14096lm
- Low consumption: 96W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 60 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
The Warrior Linear range is designed to modernize conventional fluorescent luminaires or for use in new facilities. Designed to provide extreme levels of sustainability and with a unique modular design that makes maintenance fast and easy. All Warrior luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the sector.
References Manufacturer: SPI-WL168-HO
RTC0105
Data sheet
- Ambiant temperature
- -40° à +60°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE.CERTIF_UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 96W
- Light power
- 14096lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- New
High Power LED Spartan HPFL Projector for Zone 21
- IP66
- Ambient temperature: -50˚c to + 50˚c
- Ambient temperature: -50˚c to + 50˚c
Thanks to its robust and durable design, this projector guarantees resistance to difficult industrial conditions while providing remarkable energy efficiency. It is an ideal solution for industrial facilities requiring high performance lighting, combining safety, durability and ease of installation.
References Manufacturer: SPZ-HPFL30K-W-3030-Z21, SPZ-HPFL30K-W-6060-Z21, SPZ-HPFL30K-W-9090-Z21, SPZ- HPFL25K-W-3030-Z21, SPZ-HPFL25K-W-6060-Z21, SPZ-HPFL25K-W-9090-Z21, SPZ-HPFL20K-W-3030 -Z21, SPZ-HPFL20K-W-6060-Z21, SPZ-HPFL20K-W-9090-Z21
RTC0050
Data sheet
- Ambiant temperature
- -50°C to +50°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 150-264V
- Protection étanchéité (IP)
- IP66
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIB
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML17ATEX1148
- Certificat_IECEx-fr_FR
- IECEx CML 17.0074
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 300W
- Light power
- 29000lm
- Entrée(s) de câble
- 2xM20
- 200W
- 1
- 19423lm
- 1
- New
LED LED LED SPARTAN WL168 for zone 2
- ATEX Certified and IEC Ex - Zone 2/22
- Ultra long duration LED
- High performance exit level: 7048lm
- Low consumption: 49W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 60 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
- Ultra long duration LED
- High performance exit level: 7048lm
- Low consumption: 49W
- Easy installation and maintenance
- Large operating temperature -40 ° to + 60 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone 2. Applications Overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a life of 10 years and more while providing a luminous flux up to 7,048 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL168, SPZ-WL168-EMX25, SPZ-WL168-LL, SPZ-WL168-1500
RTC0016
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T6
- Warranty
- Garantie 5 an(s)
- Feed
- 12V AC/DC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML15ATEX4138
- Certificat_IECEx-fr_FR
- IEC Ex CML15.0068
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Chargeur
- 1¨
- Light power
- 12260lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Zone 1/21
- 1
- Aluminium
- 1
- 110-254V AC
- 1
- 49W
- 1
- T4
- 1
- 7048lm
- 1
- New
Spartan Projector FL48 LED, Zone 2/22, White-Light - Intelligent Rescued Version (25% Output)
- IP66,67
- Ambient temperature: -20 ° C to + 55 ° C
- Color temperature: 6000K
- Light power: 18600lm
- Ambient temperature: -20 ° C to + 55 ° C
- Color temperature: 6000K
- Light power: 18600lm
The SPZ-FL48-W-3030-EM25 is a specially designed Smart Security LED projector to provide high quality lighting while ensuring optimized energy management. It has 48 LEDs, offering a robust and efficient light output. With a 30 ° x 30 ° beam, this model allows accurate light coverage, suitable for facilities requiring targeted and uniform lighting.
References Manufacturer: SPZ-FL48-W-3030-EM25, SPZ-FL48-W-8080-EM25, SPZ-FL48-W-3510-EM25, SPZ-FL48-W-8030-EM25
RTC0254
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Certificats
- ATEX.IECEx
- Fréquence (Hz)
- 50Hz
- Certificat_ATEX-fr_FR
- CML17ATEX4231
- Certificat_IECEx-fr_FR
- IEC Ex CML 17.0135-
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 139W
- Light power
- 18600lm
- 50/60hz
- 1
- New
LED LED LED Spartan WL84 Zone 21 - Intelligent Rescued Version (25% Output)
- IP66, 67 IK10
- Ambient temperature: -40 ° C to + 60 ° C
- Ambient temperature: -40 ° C to + 60 ° C
The LED Spartan WL84 linear luminaire, designed specifically for use in zone 22, offers a powerful and reliable white light. The intelligent rescued version, with a reduced 25% output, guarantees safety lighting in the event of the failure of the main power supply, meeting the requirements of demanding industrial environments.
References Manufacturer: SPZ-WL84-EMX25-Z21
RTC0240
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML15ATEX4138
- Certificat_IECEx-fr_FR
- IEC Ex CML15.0068
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3524lm
- Indice de résistance aux chocs
- IK10
- New
Warrion WL84 Industrial LED Industrial Mounting Industrial Luminaire for Zone 1
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance exit level 3524 lm
- BASE CONSOMATION (29W)
- Emergency lighting variant
- Large operating temperature -40 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance exit level 3524 lm
- BASE CONSOMATION (29W)
- Emergency lighting variant
- Large operating temperature -40 ° C to + 55 ° C
- 5 years warranty
The Warrior Linear Spigot range is designed to modernize existing fluorescent pole installations or for new post mounting applications. The built-in spindle support is designed to fit posts up to 42 mm in diameter and is fully wrapped up for the protection of the environment. All Warrior luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the sector.
References Manufacturer: SPI-WL84-SP, SPI-WL84-EMX25-SP
RTC0121
Data sheet
- Ambiant temperature
- -20°C à + 50°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Light power
- 3524lm
- New
Industrial Projector Warrior Crane 48 LED
- IP66 & 67
- LED ultra long duration and high efficiency
- High Performance Exit Level 18600 LMBase Consomation (136W)
- Easy installation and entry
- Large operating temperature -10 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High Performance Exit Level 18600 LMBase Consomation (136W)
- Easy installation and entry
- Large operating temperature -10 ° C to + 55 ° C
- 5 years warranty
The Warrior crane projector is designed to be used on marine and offshore cranes for the use of LED crane lighting that requires high performance and reliable white light lighting to improve the safety and reliability of crane operations. Delivering up to 16,900 lumens, Raytec's LED crane lighting has been designed to be very vibration-resistant and uses a rotary shock absorber to prevent swaying and ensuring that light is always targeted where necessary. The Crane Flood uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Warrior luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the sector.
References Manufacturer: SPI-FL48C-W-1010, SPI-FL48C-W-3030, SPI-FL48C-W-5050, SPI-FL48C-W-8080, SPI-FL48C-W- 120120, SPI-FL48C-W-3510, SPI-FL48C-W-6025, SPI-FL48C-W-8030, SPI-FL48C-W-12050
RTC0114
Data sheet
- Ambiant temperature
- -10°C à +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML13ATEX3007
- Certificat_IECEx-fr_FR
- IEC Ex CML 14.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 136W
- Light power
- 18600lm
- IP66
- 1
- 16900lm
- 1
- New
Spartan BL24 LED Projector for Zone 2
- IP66 & 67 - IK10
- High performance output level 2 750 lm
- Easy installation and maintenance
- Low consumption (20W)
- Large operating temperature -50 ° to + 55 °
- 5 year warranty
- High performance output level 2 750 lm
- Easy installation and maintenance
- Low consumption (20W)
- Large operating temperature -50 ° to + 55 °
- 5 year warranty
The Spartan Flood range is designed for dangerous zone environments that require high performance and reliable white light lighting. The Flood range is available with a backup battery and delivering 4,650 lumens, the BL24 Flood is ideal for illuminating smaller areas. It uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-BL24-W-1010-SB30, SPZ-BL24-W-1010-EMX25 -SB30, SPZ-BL24-W-3030-SB30, SPZ-BL24-W-3030- EMX25-SB30, SPZ-BL24-W-5050-SB30, SPZ-BL24-W-5050-EMX25-SB30, SPZ-BL24-W-8080-SB30, SPZ-BL24-W- 8080-EMX25-SB30, SPZ-BL24-W-120120-SB30, SPZ-BL24-W-120120-EMX25-SB30, SPZ-BL24-W-3510-SB30, SPZ -Bl24-W-3510-EMX25-SB30, SPZ-BL24-W-6025-SB30, SPZ-BL24-W-6025-EMX25-SB30, SPZ-BL24-W-8030- SB30, SPZ-BL24-W-8030-EMX25-SB30, SPZ-BL24-W-12050-SB30, SPZ-BL24-W-12050-EMX25-SB30
RTC0051
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IEC Ex CML17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 20W
- Light power
- 2750lm
- Entrée(s) de câble
- 2xM20
- New
LED LED LED LED SPARTAN SAFETY SHOWER WL84 FOR ZONE 2
Certified ATEX and IEC EX - ZONE 2/22
- LED ultra long duration and high efficiency
- High performance exit level 3524 lm
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 60 °
- 5 year warranty
- LED ultra long duration and high efficiency
- High performance exit level 3524 lm
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 60 °
- 5 year warranty
The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL84 Linear is globally certified for all zone 2. Applications. The overall dimensions, mounting centers and cable glands are compatible with 2x18W common fluorescents, with a luminous flow and A distribution of light also offering a direct replacement. The CoolXtrude ™ Thermal Management Technology provides a life of 10 years and more while providing a luminous flux up to 3,524 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL84-G, SPZ-WL84-EMX25-G
RTC0019
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML15ATEX4138
- Certificat_IECEx-fr_FR
- IEC Ex CML15.0068
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 3524lm
- Indice de résistance aux chocs
- IK10
