List of products by brand RAYTEC

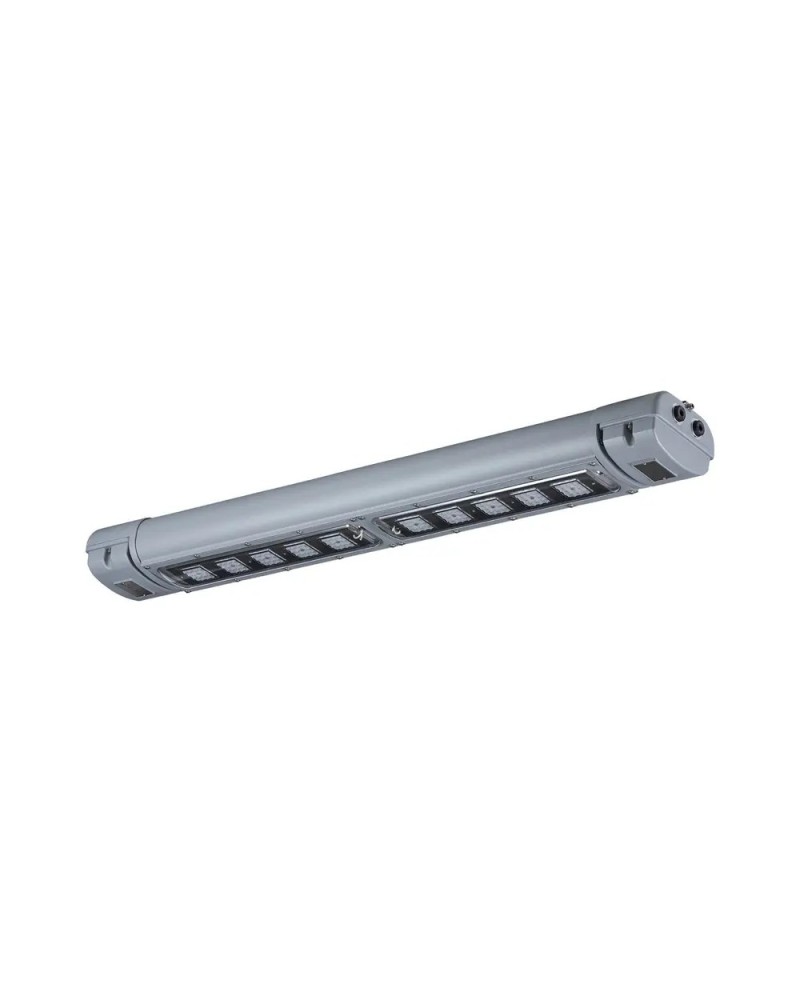

LED LED LED Spartan WL168 for Zone 1
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- High performance exit level: 6130lm
- Low consumption: 49W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
- Ultra long duration LED
- High performance exit level: 6130lm
- Low consumption: 49W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- OPTIONAL DALI 2.0 technology
- 5 year warranty
The Spartan Linear range is designed for new facilities in dangerous areas or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year and over life while providing a luminous flux up to 6,240 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPX-WL168, SPX-WL168-EMX25, SPX-WL168-LL, SPX-WL168-1500
RTC0004
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex de
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- IECExCML15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 49W
- Light power
- 6130lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Ex e (sécurité augmentée)
- 1
- New
LED Luminaire Spartan Strong Recessed Power Zone 1/21 Certified ATEX and IEC EX
- Certified ATEX and IEC EX - ZONE 1/21
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
The brand new Spartan Spartan Plank recessed luminaire range has a unique modular design, designed to be light, with access from below and above the ceiling for simplified installation and maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the market.
References Manufacturer: SPX-RCP314-HO
RTC0207
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CML 23ATEX5448X
- Certificat_IECEx-fr_FR
- IECEx CML 23.0150X
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 36W
- Light power
- 3079lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- New
LED LED Spartan BL24 for Zone 2
- ATEX Certified and IEC Ex - Zone 2
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- 5 years warranty
- backup battery (optional)
- Ultra long duration LED
- LED high efficiency LED
- Easy installation, maintenance and inspection
- Wide operating temperature range: -50 ° C to +55 ° C
- 5 years warranty
- backup battery (optional)
The Spartan BL24 LED applique, designed for industrial environments and risk areas, is suitable for zones 2/22 (areas with gas explosion potential and dust, according to the ATEX standard). It combines advanced lighting and safety technologies, making it ideal for facilities under severe working conditions.
References Manufacturer: SPZ-BL24-W-1010-EMX25, SPZ-BL24-W-3030-EMX25, SPZ-BL24-W-5050-EMX25, SPZ-BL24-W-8080- EMX25, SPZ-BL24-W-120120-EMX25, SPZ-BL24-W-3510-EMX25, SPZ-BL24-W-6025-EMX25, SPZ-BL24-W-8030- EMX25, SPZ-BL24-W-12050-EMX25, SPZ-BL24-W-12050-EMX100-LO-EXI, SPZ-BL24-W-12050-EMX25-EXIT
RTC0198
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IECEx CML 17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 20W
- Light power
- 2500lm
- Entrée(s) de câble
- 2xM20
- New
Industrial LED projector Warrior FL24
- IP66, 67
- Ambient temperature: - 20 ° C to + 55 ° C
- Light temperature: 9300lm
- Ambient temperature: - 20 ° C to + 55 ° C
- Light temperature: 9300lm
The Warrior FL24 LED projector is an industrial model designed to provide intense and precise white light thanks to its 10 ° x10 ° beam. This projector is ideal for targeted lighting, whether for outdoor applications or in industrial environments requiring high performance. It combines energy efficiency and robustness, with a durable and resistant design to difficult conditions.
References Manufacturer: SPI-FL24-W-1010-EM50, SPI-FL24-W-3030-EM50, SPI-FL24-W-5050-EM50, SPI-FL24-W-8080-EM50, Spi- FL24-W-120120-EM50, SPI-FL24-W-3510-EM50, SPI-FL24-W-6025-EM50, SPI-FL24-W-8030-EM50, SPI-FL24-W- 12050-EM50
RTC0194
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 71W
- Light power
- 9300lm
- 6500K
- 1
- New
Spartan FL24 LED projector, 1/21 area, white light - intelligent rescued version (50% output)
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 71W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -20 ° to + 55 ° C
- 5 year warranty
- Ultra long duration LED
- 71W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -20 ° to + 55 ° C
- 5 year warranty
The SPARTAN FL24 LED projector, specially designed for use in zone 1/21, is a high-performance lighting solution that is suitable for environmentally explosive atmospheres (gas and dust) environments. Thanks to its powerful white light, it offers precise illumination with a narrow beam of 10 ° x 10 °, ideal for targeted directional lighting in demanding industrial applications.
References Manufacturer: SPX-FL24-W-1010-EM50, SPX-FL24-W-3030-EM50, SPX-FL24-W-5050-EM50, SPX-FL24-W-8080-EM50, SPX- FL24-W-120120-EM50, SPX-FL24-W-3510-EM50, SPX-FL24-W-6025-EM50, SPX-FL24-W-8030-EM50, SPX-FL24-W- 12050-EM50
RTC0185
Data sheet
- Ambiant temperature
- -52°C à +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML13ATEX3007
- Certificat_IECEx-fr_FR
- IEC Ex CML 14.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 71W
- Light power
- 8200lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Mounting type
- Etrier de fixation
- Batterie de secours
- Nickel-cadmium (Ni/Cd) 12V
- Angle de faisceau
- 10x10°
- 120°50°
- 1
- -55°C à +66°C
- 1
- 8450lm
- 1
- New
LED LED LED SPARTAN SAFETY SHOWER WL84 INDUSTRIAL VERSION
- IP66, 67
- Ambient temperature: -40 ° C to + 60 ° C
- Ambient temperature: -40 ° C to + 60 ° C
The Warrior WL84 LED Security Showers Industrial Showers is specially designed for high-risk industrial environments, where safety facilities, such as safety showers, are crucial. This model is equipped with a green light, clearly indicating that the equipment is in working order and ready for use in case of emergency.
References Manufacturer: SPI-WL84-EMX25-G
RTC0181
Data sheet
- Ambiant temperature
- -40° à +60°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3524lm
- Indice de résistance aux chocs
- IK10
- New
LED LED LED SPARTAN WL168 for zone 2
- IP66, 67
- ambient temperature: 40 ° C to + 60 ° C
- Color temperature: 6500K
- Light power: 7014lm
- ambient temperature: 40 ° C to + 60 ° C
- Color temperature: 6500K
- Light power: 7014lm
The SPZ-WL168 is a high-end LED projector designed to provide powerful and durable lighting in demanding environments. This model uses advanced LED technologies to produce intense and uniform light, ideal for outdoor applications such as facades, car parks, industrial facilities, or even public spaces.
References Manufacturer: SPZ-WL168-EMX25
RTC0176
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML15ATEX4138
- Certificat_IECEx-fr_FR
- CEI Ex CML15.0068
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 49W
- Light power
- 7048lm
- Indice de résistance aux chocs
- IK10
- New
LED LED Spartan BL24 for Zone 2
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance output level 2750 lm
- BASE CONSOMATION (24W)
- Large operating temperatures - 50 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance output level 2750 lm
- BASE CONSOMATION (24W)
- Large operating temperatures - 50 ° C to + 55 ° C
- 5 years warranty
The Spartan Bl24 Zone 2 partition is designed for hazardous areas that require high performance and reliable white lighting. Its compact and discreet design is ideal for applications in restricted spaces and is available with a backup battery. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-BL24-W-1010, SPZ-BL24-W-1010-EMX25, SPZ-BL24-W-3030, SPZ-BL24-W-3030-EMX25, SPZ-BL24- W-5050, SPZ-BL24-W-5050-EMX25, SPZ-BL24-W-8080, SPZ-BL24-W-8080-EMX25, SPZ-BL24-W-120120, SPZ-BL24 -W-120120-EMX25, SPZ-BL24-W-3510, SPZ-BL24-W-3510-EMX25, SPZ-BL24-W-6025, SPZ-BL24-W-6025- EMX25, SPZ-BL24-W-8030, SPZ-BL24-W-8030-EMX25, SPZ-BL24-W-12050, SPZ-BL24-W-12050-EMX25, SPZ-BL24 -W-12050-EMX100-LO-EXI, SPZ-BL24-W-12050-EMX25-EXIT
RTC0075
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IECEx CML 17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 20W
- Light power
- 2500lm
- Entrée(s) de câble
- 2xM20
- IIB
- 1
- 24W
- 1
- 2750lm
- 1
- New
Industrial LED projector Warrior FL24
- IP66 & 67
- LED ultra long duration and high efficiency
- BASE CONSOMATION (68W)
- Easy installation
- Large operating temperature -20 ° to + 55 °
- 5 years warranty
-
- LED ultra long duration and high efficiency
- BASE CONSOMATION (68W)
- Easy installation
- Large operating temperature -20 ° to + 55 °
- 5 years warranty
-
The Warrior Flood range is designed for industrial environments that require high performance and reliable white light lighting. Available with a backup battery and delivering from 9,300 to 18,600 lumens, the FL FLOOD range uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Warrior luminaires benefit from a 5-year warranty, the best sector.
References Manufacturer: SPI-FL24-W-1010, SPI-FL24-W-1010-EM50, SPI-FL24-W-3030, SPI-FL24-W-3030-EM50, SPI-FL24-W-5050, SPI-FL24-W-5050-EM50, SPI-FL24-W-8080, SPI-FL24-W-8080-EM50, SPI-FL24-W-120120, SPI-FL24-W-120120- EM50, SPI-FL24-W-3510, SPI-FL24-W-3510-EM50, SPI-FL24-W-6025, SPI-FL24-W-6025-EM50, SPI-FL24-W-8030, SPI-FL24-W-8030-EM50, SPI-FL24-W-12050, SPI-FL24-W-12050-EM50
RTC0059
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 68W
- Light power
- 9300lm
- New
Spartan FL24 LED Projector for Zone 1
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 68W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -52 ° to + 55 ° C
- 5 year warranty
- Ultra long duration LED
- 68W - 8450LM
- IP66 & 67
- Easy installation and maintenance
- Large operating temperature: -52 ° to + 55 ° C
- 5 year warranty
The Spartan Flood range is designed for dangerous environments that require high performance and reliable white light lighting. Available with a backup battery and delivering from 8,450 to 16,900 lumens, the FL FLOOD range uses long-lasting LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-FL24-W-1010, SPX-FL24-W-1010-EM50, SPX-FL24-W-3030, SPX-FL24-W-3030-EM50, SPX-FL24-W-5050, SPX-FL24-W-5050-EM50, SPX-FL24-W-8080, SPX-FL24-W-8080-EM50, SPX-FL24-W-120120, SPX-FL24-W-120120- EM50, SPX-FL24-W-3510, SPX-FL24-W-3510-EM50, SPX-FL24-W-6025, SPX-FL24-W-6025-EM50, SPX-FL24-W-8030, SPX-FL24-W-8030-EM50, SPX-FL24-W-12050, SPX-FL24-W-12050-EM50
RTC0045
Data sheet
- Ambiant temperature
- -52°C à +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML13ATEX3007
- Certificat_IECEx-fr_FR
- IEC Ex CML 14.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 68W
- Light power
- 8550lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Angle de faisceau
- 10x10°
- -20°C à +55°C
- 1
- Aluminium
- 1
- IP67.IP68
- 1
- 120x120°
- 1
- Ex de
- 1
- 8200lm
- 1
- New
LED LED LED SPARTAN SAFETY SHOWER WL84 INDUSTRIAL VERSION
- IP66 & 67 - IK10
- LED ultra long duration and high efficiency
- High performance exit level 3524 lm
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 55 °
- 5 year warranty
- LED ultra long duration and high efficiency
- High performance exit level 3524 lm
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 55 °
- 5 year warranty
The Warrior Linear range is designed to modernize conventional fluorescent luminaires or for use in new facilities. Designed to provide extreme levels of sustainability and with a unique modular design that makes maintenance fast and easy. All Warrior luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the sector.
References Manufacturer: SPI-WL84-G, SPI-WL84-EMX25-G
RTC0027
Data sheet
- Ambiant temperature
- -40° à +60°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE.CERTIF_ABS
- Fréquence (Hz)
- 50/60hz
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 3524lm
- Indice de résistance aux chocs
- IK10
- New
Linear Led Led Spartan WL84 for Zone 21
- ATEX Certified and IEC Ex - Zone 21
- LED ultra long duration and high efficiency
- High performance 3065 lm output level
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 55 °
- 5 year warranty
- LED ultra long duration and high efficiency
- High performance 3065 lm output level
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 55 °
- 5 year warranty
The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL84 Linear is generally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x18W common fluorescents, with a luminous flow and A distribution of light also offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year-old and more service life while providing a luminous flux up to 3,065 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL84-Z21, SPZ-WL84-EMX25-Z21
RTC0009
Data sheet
- Warranty
- Garantie 5 an(s)
- Application/Usage
- Zone ATEX
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Certificat_ATEX-fr_FR
- CML16ATEX1130
- Certificat_IECEx-fr_FR
- IEC Ex CML16.0052
- New
LED LED Spartan Recessed Zone 1/21 Certified ATEX and IEC EX
- Certified ATEX and IEC EX - ZONE 1/21
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
The brand new Spartan Receive range has a unique modular design, designed to be light, with access from below and over the ceiling for simplified installation and maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the market.
References Manufacturer: SPX-RCP308, SPX-RCP314
RTC0208
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium
- Certificat_ATEX-fr_FR
- CML 23ATEX5448X
- Certificat_IECEx-fr_FR
- IECEx CML 23.0150X
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3079lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- 36W
- 1
- New
BL24 Spartan Matter LED Applique for Zone 2
- IP66,67
The LED Spartan light applique is a high-performance lighting for industrial at-risk environments, specifically for 2/22 zones (ATEX-based areas, where the risk of explosion is low but possible in the event of gas or dust leakage. Flammable). This model is ideal for installations where optimal safety is needed, as in chemical, oil-based industries or storage areas of hazardous materials. This wall lamp offers a concentrated white light beam with an angle of 10 ° x10 °, allowing to project a precise and directed light beam. This makes it possible to effectively illuminate specific areas, such as machines, control panels or reduced workpoints, while minimizing light dispersion and maximizing energy efficiency.
References Manufacturer: SPZ-BL24-W-1010-EMX25 -SP, SPZ-BL24-W-1010-EMX25 -SP48, SPZ-BL24-W-3030-EMX25-SP, SPZ- BL24-W-3030-EMX25-SP48, SPZ-BL24-W-5050-EMX25-SP, SPZ-BL24-W-5050-EMX25-SP48, SPZ-BL24-W-8080- EMX25-SP, SPZ-BL24-W-8080-EMX25-SP48, SPZ-BL24-W-120120-EMX25-SP, SPZ-BL24-W-120120-EMX25-SP48, SPZ-BL24-W-3510-EMX25-SP, SPZ-BL24-W-3510-EMX25-SP48, SPZ-BL24-W-6025-EMX25-SP, SPZ-BL24-W- 6025-EMX25-SP48, SPZ-BL24-W-8030-EMX25-SP, SPZ-BL24-W-8030-EMX25-SP48, SPZ-BL24-W-12050-EMX25- SP, SPZ-BL24-W-12050-EMX25-SP48
RTC0199
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IECEx CML 17.0135
- Couleurs corps
- Argent (RAL 9006)
- Color temperature
- 6500K
- Puissance électrique
- 20W
- Light power
- 2500lm
- Mounting type
- Sur mât
- New
Industrial LED projector Spartan FL48
- IP66, 67
- Ambient temperature: -50 ° to + 55 ° C
- Color temperature: 6000K
- 16kg
- Ambient temperature: -50 ° to + 55 ° C
- Color temperature: 6000K
- 16kg
The Warrior FL48 LED projector is a rugged and powerful industrial lighting solution, designed to provide intense white light with a narrow beam of 10 ° X10 °. With its ability to illuminate specific areas in a precise way, it is particularly suitable for environments requiring targeted and high performance lighting. Its LED technology not only provides energy efficiency, but also a long service life and reduced maintenance.
References Manufacturer: SPI-FL48-W-1010-EM25, SPI-FL48-W-3030-EM25, SPI-FL48-W-5050-EM25, SPI-FL48-W-8080-EM25, SPI-FL48-W-120120-EM25, SPI-FL48-W-3510-EM25, SPI-FL48-W-6025-EM25, SPI-FL48-W-8030-EM25, Spi- FL48-W-12050-EM25
RTC0195
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 139W
- Light power
- 18600lm
- -20°C à +55°C
- 1
- 60Hz
- 1
- New
Spartan FL48 LED Projector for Zone 1
- IP66, 67
- Ambient temperature: -20 ° C to 55 ° C
- Electric power: 139W
- Light power: 18600lm
- Ambient temperature: -20 ° C to 55 ° C
- Electric power: 139W
- Light power: 18600lm
The Spartan FL48 LED projector is a high-end lighting designed for demanding environments, particularly in classified areas 1/21 zones (explosive risk areas). This projector uses LED technology and offers a precise beam of 10 ° X10 °, perfect for specific applications where a directional light is needed. The "Emergency Variant" option allows the projector to operate with a reduced output of 25% in case of emergency, ensuring extended autonomy while maintaining effective lighting in critical conditions.
References Manufacturer: SPX-FL48-W-1010-EM25, SPX-FL48-W-3030-EM25, SPX-FL48-W-5050-EM25, SPX-FL48-W-8080-EM25, SPX-FL48-W-120120-EM25, SPX-FL48-W-3510-EM25, SPX-FL48-W-6025-EM25, SPX-FL48-W-8030-EM25, SPX- FL48-W-12050-EM25
RTC0187
Data sheet
- Ambiant temperature
- -20°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Certificat_ATEX-fr_FR
- CML13ATEX3007
- Certificat_IECEx-fr_FR
- CEI Ex CML 14.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 139W
- Light power
- 16900lm
- 15000lm
- 1
- New
LED LED LED SPARTAN SAFETY SHOWER WL168 Industrial version
- IP66,67
- Ambient temperature: -40 ° C to + 60 ° C
- Ambient temperature: -40 ° C to + 60 ° C
The Industrial Linear Urban 168 LED is a robust lighting solution, ideal for demanding industrial environments. This model is equipped with a white light offering a 4000K color temperature, ideal for spaces requiring light and natural lighting, thus promoting better visibility and productivity.
References Manufacturer: SPI-WL168-EMX25-G
RTC0182
Data sheet
- Ambiant temperature
- -40° à +60°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 49W
- Light power
- 7048lm
- Indice de résistance aux chocs
- IK10
- New
BL24 Spartan Matter LED Applique for Zone 2
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance output level 2750 lm
- BASE CONSOMATION (20W)
- Easy installation and maintenance
- Urgenves lighting variant
- Large operating temperature - 50 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- High performance output level 2750 lm
- BASE CONSOMATION (20W)
- Easy installation and maintenance
- Urgenves lighting variant
- Large operating temperature - 50 ° C to + 55 ° C
- 5 years warranty
The Spartan Flood range is designed for dangerous zone environments that require high performance and reliable white light lighting. The Flood range is available with a backup battery and delivering 4,650 lumens, the BL24 Flood is ideal for lighting smaller areas. It uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPZ-BL24-W-1010-SP, SPZ-BL24-W-1010-SP48, SPZ-BL24-W-1010-EMX25 -SP, SPZ-BL24-W-1010- EMX25 -SP48, SPZ-BL24-W-3030-SP, SPZ-BL24-W-3030-SP48, SPZ-BL24-W-3030-EMX25-SP, SPZ-BL24-W-3030- EMX25-SP48, SPZ-BL24-W-5050-SP, SPZ-BL24-W-5050-SP48, SPZ-BL24-W-5050-EMX25-SP, SPZ-BL24-W-5050- EMX25-SP48, SPZ-BL24-W-8080-SP, SPZ-BL24-W-8080-SP48, SPZ-BL24-W-8080-EMX25-SP, SPZ-BL24-W-8080- EMX25-SP48, SPZ-BL24-W-120120-SP, SPZ-BL24-W-120120-SP48, SPZ-BL24-W-120120-EMX25-SP, SPZ-BL24- W-120120-EMX25-SP48, SPZ-BL24-W-3510-SP, SPZ-BL24-W-3510-SP48, SPZ-BL24-W-3510-EMX25-SP, SPZ-BL24 -W-3510-EMX25-SP48, SPZ-BL24-W-6025-SP, SPZ-BL24-W-6025-SP48, SPZ-BL24-W-6025-EMX25-SP, SPZ- BL24-W-6025-EMX25-SP48, SPZ-BL24-W-8030-SP, SPZ-BL24-W-8030-SP48, SPZ-BL24-W-8030-EMX25-SP, SPZ- BL24-W-8030-EMX25-SP48, SPZ-BL24-W-12050-SP, SPZ-BL24-W-12050-SP48, SPZ-BL24-W-12050-EMX25-SP, SPZ-BL24-W-12050-EMX25-SP48
RTC0076
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IECEx CML 17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 20W
- Light power
- 2500lm
- 2750lm
- 1
- New
MPFL Industrial LED Projector
- IP66 & 67
- LED ultra long duration and high efficiency
- High performance exit level 12813 lm
- BASE CONSOMATION (100W)
- Large operating temperature -40 ° to + 60 °
- 5 years warranty
-
- LED ultra long duration and high efficiency
- High performance exit level 12813 lm
- BASE CONSOMATION (100W)
- Large operating temperature -40 ° to + 60 °
- 5 years warranty
-
The average power spartan spotlight range is designed to illuminate large open spaces in hazardous environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the MID-Power Flood uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPI-MPFL15K-W-12015, SPI-MPFL15K-W-9090, SPI-MPFL15K-W-6060, SPI-MPFL15K-W-3030, SPI-MPFL15K -W-1010, SPI-MPFL12K5-W-12015, SPI-MPFL12K5-W-9090, SPI-MPFL12K5-W-6060, SPI-MPFL12K5-W-3030, Spi- MPFL12K5-W-1010, SPI-MPFL10K-W-12015, SPI-MPFL10K-W-9090, SPI-MPFL10K-W-6060, SPI-MPFL10K-W-3030, SPI -MPFL10K-W-1010, SPI-MPFL7K5-W-12015, SPI-MPFL7K5-W-9090, SPI-MPFL7K5-W-6060, SPI-MPFL7K5-W- 3030, SPI-MPFL7K5-W-1010, SPI-MPFL5K-W-12015, SPI-MPFL5K-W-9090, SPI-MPFL5K-W-6060, SPI-MPFL5K-W -3030, SPI-MPFL5K-W-1010
RTC0060
Data sheet
- Ambiant temperature
- -40° à +60°C
- Warranty
- Garantie 5 an(s)
- Feed
- 100-277V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Zone ATEX
- Zone 1/21
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 120W
- Light power
- 15000lm
- Entrée(s) de câble
- 2xM20
- 110-254V AC
- 1
- 40W
- 1
- 5149lm
- 1
- New
Spartan MPFL LED Projector for Zone 1
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 5,000 to 15,000 lumens
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- Available in standard or rescued version
- 5 year warranty
- Ultra long duration LED
- 5,000 to 15,000 lumens
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- Available in standard or rescued version
- 5 year warranty
The Spartan Mid-Power Flood range is an ATEX LED projector designed to illuminate large open spaces in hazardous environments. Available with a range of different powers ranging from 5,000 to 15,000 lumens, the MID-Power Flood uses long-lasting LED technology to ensure lifespan of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-MPFL15K-W-9090, SPX-MPFL15K-W-6060, SPX-MPFL15K-W-3030, SPX-MPFL12K5-W-9090, SPX- MPFL12K5-W-6060, SPX-MPFL12K5-W-3030, SPX-MPFL10K-W-9090, SPX-MPFL10K-W-6060, SPX-MPFL10K-W-3030, SPX -MPFL7K5-W-9090, SPX-MPFL7K5-W-6060, SPX-MPFL7K5-W-3030, SPX-MPFL5K-W-9090, SPX-MPFL5K-W-6060, SPX-MPFL5K-W-3030, SPX-MPFL15K-W-9090-EMX90, SPX-MPFL10K-W-9090-EMX180
RTC0046
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML21ATEX3317
- Certificat_IECEx-fr_FR
- IEC Ex CML21.0037
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 120W
- Light power
- 15000lm
- Entrée(s) de câble
- 2xM20
- 40W
- 1
- 5000lm
- 1
- New
LED LED LED SPARTAN SAFETY SHOWER WL168 Industrial version
- IP66 & 67 - IK10
- LED ultra long duration and high efficiency
- High performance exit level 7048 lm
- Low consumption (49W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 55 °
- 5 year warranty
- LED ultra long duration and high efficiency
- High performance exit level 7048 lm
- Low consumption (49W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 55 °
- 5 year warranty
The Warrior Linear range is designed to modernize conventional fluorescent luminaires or for use in new facilities. Designed to provide extreme levels of sustainability and with a unique modular design that makes maintenance fast and easy. All Warrior luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the sector.
References Manufacturer: SPI-WL168-G, SPI-WL168-EMX25-G
RTC0028
Data sheet
- Warranty
- Garantie 5 an(s)
- Application/Usage
- Industrie
- Certificats
- CE.CERTIF_ABS
- New
LED LED LED Spartan WL168 for Zone 21
- ATEX Certified and IEC Ex - Zone 21 (Dust)
- Ultra long duration LED
- High brightness LED
- Fully retrobable
- Easy installation and maintenance
- Extended operating temperature -40 ° to + 60 ° (-20 ° to + 50 ° for emergency variants)
- Zone 2 variants available
- 5 year warranty
- Ultra long duration LED
- High brightness LED
- Fully retrobable
- Easy installation and maintenance
- Extended operating temperature -40 ° to + 60 ° (-20 ° to + 50 ° for emergency variants)
- Zone 2 variants available
- 5 year warranty
The Spartan Linear range is designed for new facilities in dangerous areas or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL168 Linear is globally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x36W common fluorescents, with a luminous flux and a light distribution offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year and over life while providing a luminous flux up to 6,240 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPZ-WL168-Z21, SPZ-WL168-EMX25-Z21
RTC0010
Data sheet
- Warranty
- Garantie 5 an(s)
- Application/Usage
- Zone ATEX
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Certificat_ATEX-fr_FR
- CML16ATEX1130
- Certificat_IECEx-fr_FR
- IEC Ex CML16.0052
- New
LED LED LED Spartan WL84, Strong Power, Zone 1/21 - Intelligent Rescued Version (25% Output)
- Certified ATEX and IEC EX - ZONE 1/21
- LED ultra long duration and high efficiency
- High performance exit level: 6130lm
- Low consumption: 56W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- 5 year warranty
- LED ultra long duration and high efficiency
- High performance exit level: 6130lm
- Low consumption: 56W
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- 5 year warranty
The Spartan Linear High Output range is the ideal solution for new facilities in hazardous areas. It offers a luminous flow twice that of the standard linear Spartan, while maintaining aesthetics and comfort of use. Thanks to its increased power, the installation requires fewer luminaires with respect to traditional linear luminaires. In addition, the Spartan Linear High Output is an economical alternative to low height luminaires. The Linear Spartan has been designed to provide extreme durability and has a unique modular design that simplifies and accelerates maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and benefit from a 5-year warranty, the best sector.
References Manufacturer: SPX-WL84-HO-EMX25
RTC0235
Data sheet
- Ambiant temperature
- -20°C à + 50°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- IECExCML15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 56W
- Light power
- 6130lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Batterie de secours
- Nickel-cadmium (Ni/Cd) 12V
- New
Medium Power Spartan Led Projector (MPFL) 1/21 ATEX and IEC Ex Certified Zone - Intelligent Rescued Version
- Certified ATEX and IEC EX - ZONE 1/21
- Ultra long duration LED
- 5,000 to 15,000 lumens
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- Available in standard or rescued version
- 5 year warranty
- Ultra long duration LED
- 5,000 to 15,000 lumens
- Easy installation and maintenance
- Large operating temperature: -40 ° to + 55 ° C
- Available in standard or rescued version
- 5 year warranty
The Spartan Mid Power projector, 1/21 zone model, is a high quality lighting solution, providing optimal performance in emergency situations. This projector is designed with an intelligent emergency version, ensuring a 3-hour autonomy in the event of a power failure, thus guaranteeing reliable and continuous lighting when you need it most.
References Manufacturer: SPX-MPFL15K-W-9090-EMX180, SPX-MPFL15K-W-9090-EMX90, SPX-MPF180-W-6060-EMX180, SPX-MPF15K- W-6060-EMX90, SPX-MPFL15K-W-3030-EMX180, SPX-MPFL15K-W-3030-EMX90, SPX-MPFL12K5-W-9090-EMX180, SPX- MPFL12K5-W-9090-EMX90, SPX-MPFL12K5-W-6060-EMX180, SPX-MPFL12K5-W-6060-EMX90, SPX-MPFL12K5-W-3030- EMX180, SPX-MPFL12K5-W-3030-EMX90, SPX-MPFL10K-W-9090-EMX180, SPX-MPFL10K-W-9090-EMX90, SPX-MPFL10K-W -6060-EMX180, SPX-MPFL10K-W-6060-EMX90, SPX-MPFL10K-W-3030-EMX180, SPX-MPFL10K-W-3030-EMX90, SPX- MPFL7K5-W-9090-EMX180, SPX-MPFL7K5-W-9090-EMX90, SPX-MPFL7K5-W-6060-EMX180, SPX-MPFL7K5-W-6060- EMX90, SPX-MPFL7K5-W-3030-EMX180, SPX-MPFL7K5-W-3030-EMX90, SPX-MPFL5K-W-9090-EMX180, SPX-MPFL5K- W-9090-EMX90, SPX-MPFL5K-W-6060-EMX180, SPX-MPFL5K-W-6060-EMX90, SPX-MPFL5K-W-3030-EMX180, SPX- MPFL5K-W-3030-EMX90
RTC0222
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML21ATEX3317
- Certificat_IECEx-fr_FR
- IEC Ex CML21.0037
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 5700K
- Puissance électrique
- 120W
- Light power
- 15000lm
- Entrée(s) de câble
- 2xM20
- New
LED Luminaire Spartan Strong Recessed Power Modular Zone 2/22 Certified ATEX and IEC EX
- ATEX Certified and IEC Ex - Zone 2/22
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
- Modular recessed design
- Easy maintenance: access from below and over the ceiling for quick and easy maintenance
- Easy installation: 50% lighter than equivalent products
- Multiple beam options
- 5 years warranty
The brand new range Spartan Recess Modular High Performance has a unique modular design, designed to be light, with access from below and over the ceiling for simplified installation and maintenance. All Spartan luminaires are designed and manufactured in the United Kingdom and have a 5-year warranty, the best of the market.
References Manufacturer: SPZ-RCM66-HO, SPZ-RCM612-HO, SPZ-RCM312-HO
RTC0210
Data sheet
- Ambiant temperature
- -20°C à + 50°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 100-277V AC
- Protection étanchéité (IP)
- IP65
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Mode de protection ATEX
- Ex e (sécurité augmentée)
- Certificats
- ATEX.CERTIF_ABS.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium avec revêtement en poudre époxy (option en acier inoxydable disponibles sur demande)
- Certificat_ATEX-fr_FR
- CML 23ATEX5450X
- Certificat_IECEx-fr_FR
- IECEx CML 23.0150X
- Couleurs corps
- Blanc traffic (RAL 9016)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 32W
- Light power
- 3700lm
- Indice de résistance aux chocs
- IK10
- Entrée(s) de câble
- 2xM20
- Mounting type
- Encastré
- New
Spartan BL24 LED Projector for Zone 2
- IP66, 67
- Ambroante temperature: - 50 ° C to + 55 ° C
- Ambroante temperature: - 50 ° C to + 55 ° C
The Spartan BL24 LED projector, designed for use in zone 2/22, is a high performance lighting solution ideal for industrial environments requiring reliable and secure lighting in potentially explosive atmosphere (gas and dust). It emits intense white light with a wide beam of 120 ° x 120 °, ensuring optimum light cover for extended areas. This model is equipped with a caliper support (Stirrup bracket mount), offering a flexible and robust installation, adapted to the industrial needs for mounting different surfaces.
References Manufacturer: SPZ-BL24-W-1010-EMX25 -SB30, SPZ-BL24-HO-W-3030-SB30, SPZ-BL24-W-5050-EMX25-SB30, SPZ- BL24-HO-W-5050-SB30, SPZ-BL24-W-120120-EMX25-SB30, SPZ-BL24-W-3510-EMX25-SB30, SPZ-BL24-W- 6025-EMX25-SB30, SPZ-BL24-HO-W-120120-SB30, SPZ-BL24-W-12050-EMX25-SB30
RTC0188
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 2/22
- Classe de gaz
- IIC
- Certificats
- ATEX.IECEx.UKCA
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML 17ATEX4231
- Certificat_IECEx-fr_FR
- IEC Ex CML17.0135
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 2500lm
- Entrée(s) de câble
- 2xM20
- -20°C à +55°C
- 1
- 34W
- 1
- 2750lm
- 1
- New
Industrial LED projector Spartan FL48
- IP66 & 67
- LED ultra long duration and high efficiency
- BASE CONSOMATION (136W)
- Emergency lighting variant
- Large operating temperature -50 ° C to + 55 ° C
- 5 years warranty
- LED ultra long duration and high efficiency
- BASE CONSOMATION (136W)
- Emergency lighting variant
- Large operating temperature -50 ° C to + 55 ° C
- 5 years warranty
The Warrior Flood range is designed for industrial environments that require high performance and reliable white light lighting. Available with a backup battery and delivering from 9,300 to 18,600 lumens, the FL FLOOD range uses Raytec's proven long-term LED technology to ensure a lifetime of more than 10 years. All Warrior luminaires benefit from a 5-year warranty, the best sector.
References Manufacturer: SPI-FL48-W-1010, SPI-FL48-W-1010-EM25, SPI-FL48-W-3030, SPI-FL48-W-3030-EM25, SPI-FL48-W- 5050, SPI-FL48-W-5050-EM25, SPI-FL48-W-8080, SPI-FL48-W-8080-EM25, SPI-FL48-W-120120, SPI-FL48-W- 120120-EM25, SPI-FL48-W-3510, SPI-FL48-W-3510-EM25, SPI-FL48-W-6025, SPI-FL48-W-6025-EM25, Spi- FL48-W-8030, SPI-FL48-W-8030-EM25, SPI-FL48-W-12050, SPI-FL48-W-12050-EM25
RTC0061
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6000K
- Puissance électrique
- 136W
- Light power
- 18600lm
- 139W
- 1
- New
Spartan FL48 LED Projector for Zone 1
- IP66 and 67
- Easy installation and maintenance
- LED ultra long duration and high efficiency
- Large operating temperature -52 ° to + 55 °
- 5 year warranty
- Easy installation and maintenance
- LED ultra long duration and high efficiency
- Large operating temperature -52 ° to + 55 °
- 5 year warranty
The Spartan Flood range is designed for hazardous environments that use high performance and reliable white light lighting. Available with a backup battery and delivering from 8,450 to 16,900 lumens, the FL FLOOD range uses Raytec's proven long-life LED technology to ensure a lifetime of more than 10 years. All Spartan luminaires benefit from a 5-year warranty, the best of the sector.
References Manufacturer: SPX-FL48-W-1010, SPX-FL48-W-1010-EM25, SPX-FL48-W-3030, SPX-FL48-W-3030-EM25, SPX-FL48-W- 5050, SPX-FL48-W-5050-EM25, SPX-FL48-W-8080, SPX-FL48-W-8080-EM25, SPX-FL48-W-120120, SPX-FL48-W- 120120-EM25, SPX-FL48-W-3510, SPX-FL48-W-3510-EM25, SPX-FL48-W-6025, SPX-FL48-W-6025-EM25, SPX- FL48-W-8030, SPX-FL48-W-8030-EM25, SPX-FL48-W-12050, SPX-FL48-W-12050-EM25
RTC0047
Data sheet
- Ambiant temperature
- -50°C to +55°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Classe de gaz
- IIC
- Certificats
- CE
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 139W
- Light power
- 18600lm
- 3000K
- 1
- 60Hz
- 1
- 136W
- 1
- 17000lm
- 1
- New
LED LED LED Urban 84, White Light, 4000K
- IP66 & 67 - IK10
- LED ultra long duration and high efficiency
-
- High performance exit level 7048 lm
-
- Low consumption (36W)
- Easy installation and maintenance
- Emergency lighting variant
- 5 year warranty
- LED ultra long duration and high efficiency
-
- High performance exit level 7048 lm
-
- Low consumption (36W)
- Easy installation and maintenance
- Emergency lighting variant
- 5 year warranty
The Urban Linear range has been specially designed for industrial applications to provide the highest levels of performance, efficiency and control. Offered up to 553 LM, Urban Linear is available with symmetrical and asymmetric optics to reduce the waste of light, and is supplied with a flying cable 2 meters long for easy installation. LEDs are housed in their own custom box for optimal performance and reliability. Urban luminaires are also delivered standard with DALI 2.0. All Urban luminaires are designed and manufactured in the UK and benefit from a 5-year warranty, the best of the sector.
References Manufacturer: UB-WL84-4K, UB-WL84-EMX20-4K
RTC0031
Data sheet
- Warranty
- Garantie 5 an(s)
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Industrie
- Zone ATEX
- Zone 1/21
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 4000K
- Puissance électrique
- 36W
- Light power
- 5553lm
- Indice de résistance aux chocs
- IK10
- New
Linear Led Led Led Spartan Safety Shower WL84 for Zone 1
- Certified ATEX and IEC EX - Zone 1
- LED ultra long duration and high efficiency
- High performance 3065 lm output level
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 60 °
- 5 year warranty
- LED ultra long duration and high efficiency
- High performance 3065 lm output level
- Low consumption (24W)
- Easy installation and maintenance
- Emergency lighting variant
- Large operating temperature -40 ° to + 60 °
- 5 year warranty
The Spartan Linear range is designed for new facilities in ATEX zone or to modernize existing fluorescent facilities that require high performance and reliable white lighting. Using LED LED technology, the WL84 Linear is generally certified for all zone applications 1. The overall dimensions, mounting centers and cable glands are compatible with 2x18W common fluorescents, with a luminous flow and A distribution of light also offering a direct replacement. CoolXtrude ™ Thermal Management Technology provides a 10-year-old and more service life while providing a luminous flux up to 3,065 lumens delivered. All Spartan luminaires come with a 5 year warranty at the forefront of the industry.
References Manufacturer: SPX-WL84-G, SPX-WL84-EMX25-G
RTC0011
Data sheet
- Ambiant temperature
- -40° à +60°C
- Temperature class
- T4
- Warranty
- Garantie 5 an(s)
- Feed
- 110-254V AC
- Protection étanchéité (IP)
- IP66.IP67
- Application/Usage
- Zone ATEX
- Zone ATEX
- Zone 1/21
- Certificats
- ATEX.CE.CERTIF_ABS.CERTIF_UKCA.IECEx
- Fréquence (Hz)
- 50/60hz
- Matière
- Aluminium qualité marine
- Certificat_ATEX-fr_FR
- CML14ATEX3119
- Certificat_IECEx-fr_FR
- IECExCML15.0001
- Couleurs corps
- Argent (RAL 9006)
- Light source
- LED
- Color temperature
- 6500K
- Puissance électrique
- 24W
- Light power
- 3065lm
- Indice de résistance aux chocs
- IK10
- -20°C à + 50°C
- 1
