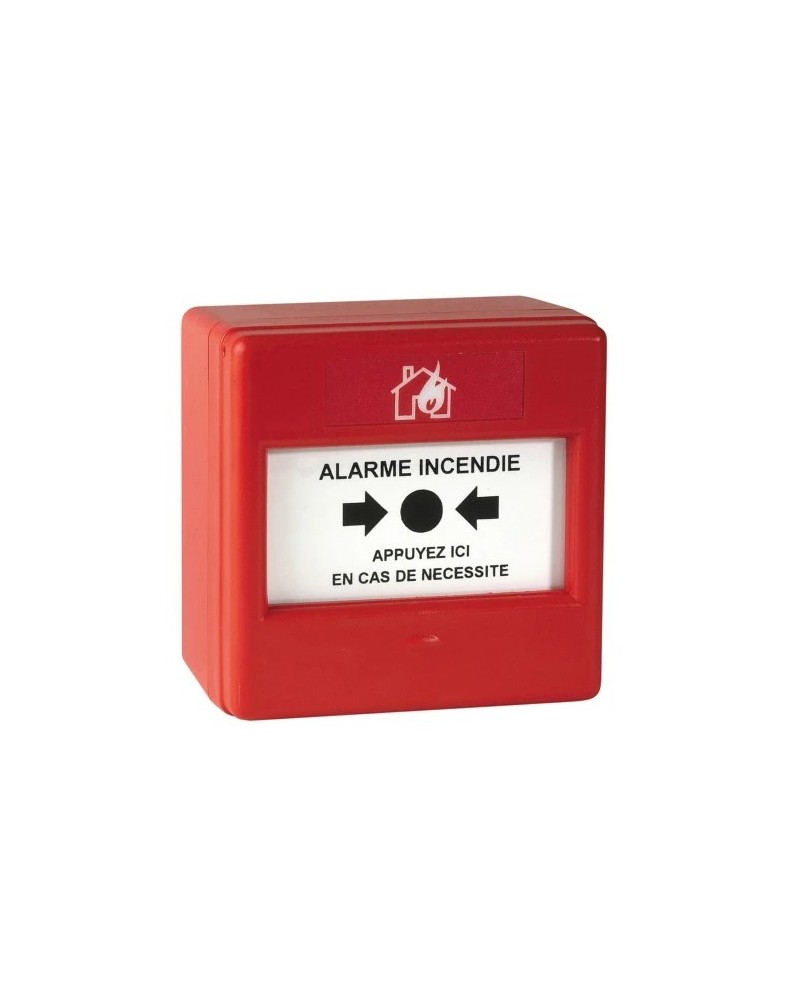

S3000 Conventional Manual Trigger
- Use: 1.5 A / 24 VCC - 0.3 A / 48 VCC
- Supplied with a reset key and a load resistance 2 W / 910 Ohm
- NF contact with line opening, line closing no
- Equipped with a deformable membrane or a pre-broken window
- Can be equipped with a transparent protective valve
- Complies with EN 54-11
- Certified this CPD and NF
- Dimensions: 87 x 87 x 53 mm
- Supplied with a reset key and a load resistance 2 W / 910 Ohm
- NF contact with line opening, line closing no
- Equipped with a deformable membrane or a pre-broken window
- Can be equipped with a transparent protective valve
- Complies with EN 54-11
- Certified this CPD and NF
- Dimensions: 87 x 87 x 53 mm
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
Used in case of fire or emergency situation by simply breaking the glass (or plastic), the range of conventional alarm manual triggers is not only easy to install, but also compatible with alarm systems. alarm and notification Eaton conventional.
References Manufacturer: NUG30312, NUG30316, NUG30325, NUG30317
| Ambiant temperature | -10°C à +55°C |
|---|---|
| Warranty | 2¨ |
| Feed | 24V DC |
| Protection étanchéité (IP) | IP66 |
| Application/Usage | EN-54 |
| Certificats | CE |
| Couleurs corps | Rouge |
| Indicateur LED | 1¨ |
| Mounting type | Saillie |
| Type de détection | UV/IR |
