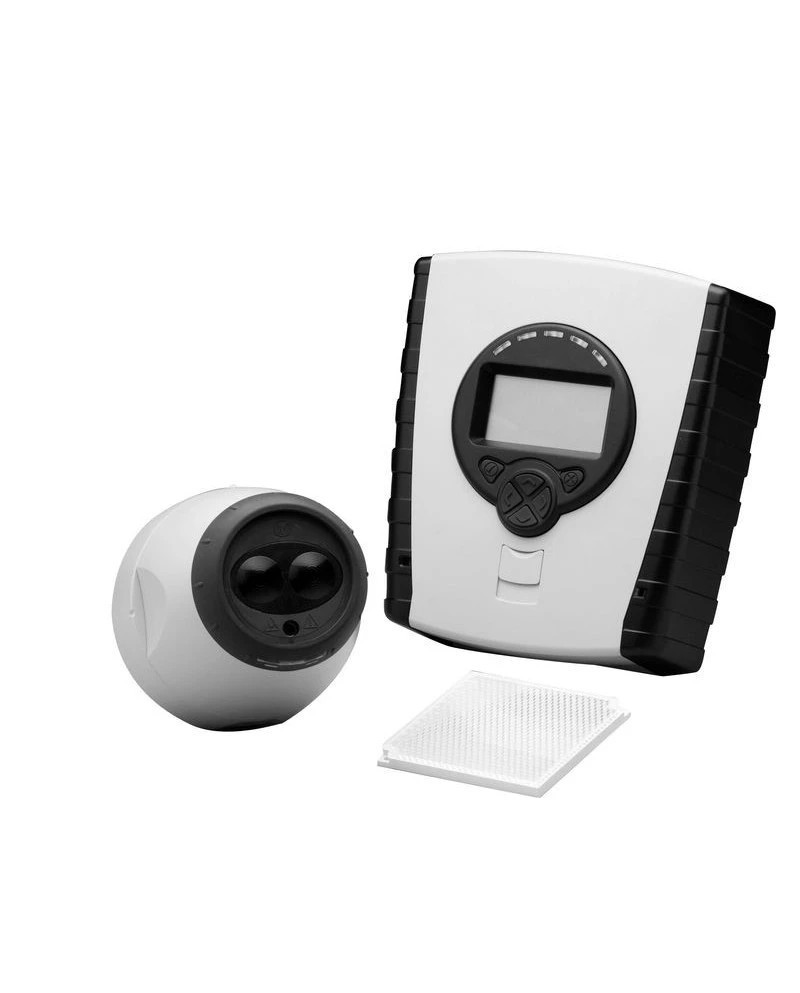

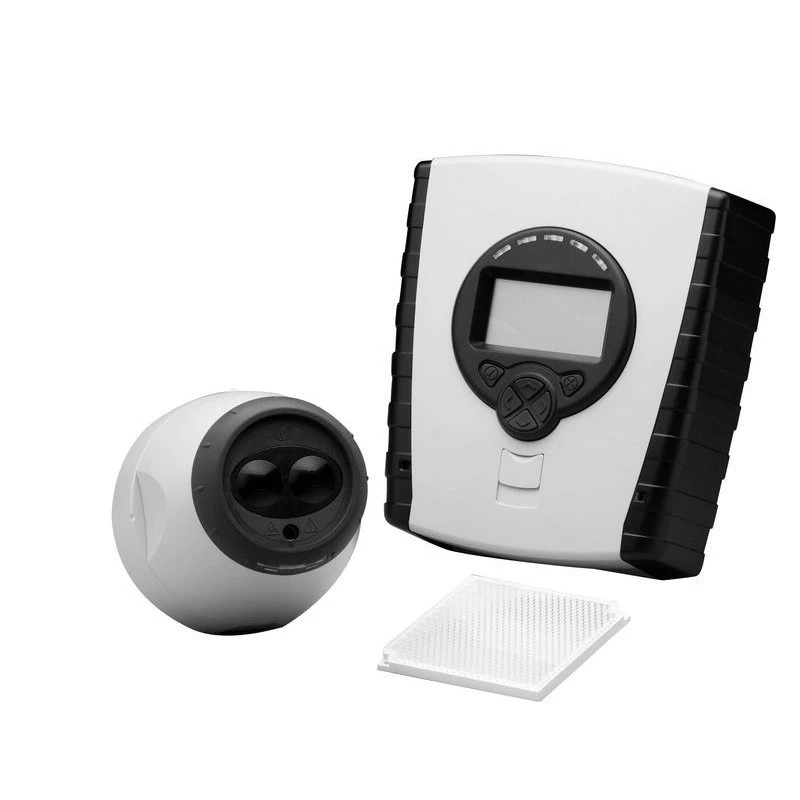

Linear smoke detector FIRERAY F5000
- IP54
- Infrared bright transmitter
- Dimensions: control box: 230 x 202 x 87 mm
- Detector: 134 x 131 x 134 mm
- Reflector: 100 x 100 x 10 mm Fastening system "Easyfit" IP54
- Monitoring length: 0 to 100 meters
- Usage temperature: 10 ° C to + 55 ° C
- Infrared bright transmitter
- Dimensions: control box: 230 x 202 x 87 mm
- Detector: 134 x 131 x 134 mm
- Reflector: 100 x 100 x 10 mm Fastening system "Easyfit" IP54
- Monitoring length: 0 to 100 meters
- Usage temperature: 10 ° C to + 55 ° C
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The linear smoke detector is suitable for monitoring large-volume specific spaces (such as warehouses or industrial premises) and consists of an infrared light transmitter, receiver and control unit. Very simple implementation, aesthetic and discreet, this automatic detector connects to the addressable detection lines of fire safety systems.
References Manufacturer: NUG30267,NUG30268
| Ambiant temperature | -10 ° C to + 55 ° C |
|---|---|
| Warranty | 2¨ |
| Waterproofing protection (IP) | Ip54 |
| Application / usage | En-54 |
| Certificates | THIS |
| Body colors | White |
