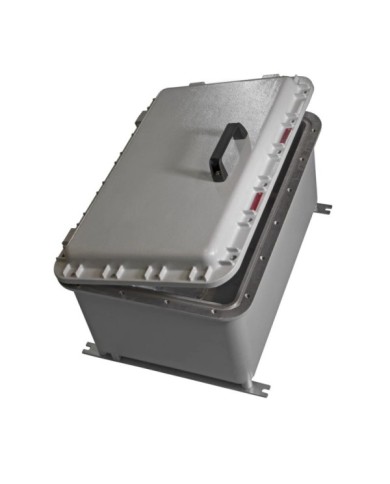

EJB Series New Screening Box
- IP66,67
- ambient temperature -20 ° C to + 40 ° C
- Group IB + H2.
- Fusion hinges (except EJB-1).
- Available with a porthole or with a window for displaying analog or numeric instruments.
- ambient temperature -20 ° C to + 40 ° C
- Group IB + H2.
- Fusion hinges (except EJB-1).
- Available with a porthole or with a window for displaying analog or numeric instruments.
Garanties sécurité
(à modifier dans le module "Réassurance")
Politique retours
(à modifier dans le module "Réassurance")
Politique de livraison
(à modifier dans le module "Réassurance")
The EJB series boxes can be installed in all areas of an installation where there is a risk of explosion and / or fire, which are classified as zone 1, 2, 21, 22. The quality of this product is recognized and appreciated around the world due to the world. Aluminum alloy used for its manufacture and mechanical characteristics of the finish. The EJB series is mainly used as a carrier of terminal blocks and as omnibus bars, fuse holders, transformers, ballasts, barriers, but also for the realization of control and signaling tables, distribution tables of lighting, motor force and Voltage unloaders, engine bootboards, with different configurations that can be customized for our customers around the world.
References Manufacturer: EJB-01, EJB-1, EJB-1/1005, EJB-1/1008, EJB-1/1508, EJB-1A, EJB-2, EJB-2/0707, EJB-2/1008, EJB-2/1808, EJB-2 / 1W0, EJB-2/2508, EJB-2A, EJB-3, EJB-3/1006, EJB-3/1510, EJB-3/1515, EJB-3 / 1W0, EJB-3/2015, EJB-3A, EJB-3B, EJB-3B / 1005, EJB-3B / 1106, EJB-3B / 1510, EJB-3B / 1W0, EJB-3B / 2015, EJB-3BA, EJB-4, EJB-4/1005, EJB-4/1212, EJB-4/1508, EJB-4/1510, EJB-4 / 1W0, EJB-4 / 1W2, EJB-4/2010, EJB-4/2015, EJB-4 / 2W0, EJB-4/3020, EJB-45, EJB-45 / EJB-45/1008, EJB-45/1008, EJB-45/1010, EJB-45/1508, EJB-45/2015, EJB-45/2508, EJB-45/3020, EJB -45B, EJB-45B / 0707, EJB-45B / 1005, EJB-45B / 1010, EJB-45B / 1510, EJB-45B / 1510, EJB-45B / 1515, EJB- 45B / 1814, EJB-45B / 2010, EJB-45B / 2015, EJB-45B / 2020, EJB-45B / 2315, EJB-45B / 3020, EJB-48BA, EJB-4B, EJB-4B / 1005, EJB-4B / 1006, EJB-4B / 1008, EJB-4B / 1010, EJB-4B / 1508, EJB-4B / 1510, EJB-4B / 1706, EJB-4B / 1W0, EJB-4B / 1W2, EJB-4B / 2010, EJB-4B / 2W0, EJB-4B / 3020, EJB-5, EJB-5/0707, EJB-5/1010, EJB-5/1508, EJB-5/1510, EJB-5/1515, EJB-5 / 1W0, EJB-5 / 1W2, EJB-5 / 1W3, EJB- 5/2010, EJB-5/2015, EJB-5/2315, EJB-5 / 2W0, EJB-5/3020, EJB-503, EJB-503 / 1W0, EJB-503 / 1W2, EJB-503 / 2W0, EJB-503/3020, EJB-55, EJB-55/1010, EJB-55/2010, EJB-55/2620, EJB -55 / 2710, EJB-55/3020, EJB-55B, EJB-5B, EJB-5B / 1006, EJB-5B / 1508, EJB-5B / 1515, EJB-5B / 1W0, EJB-5B / 1W2, EJB-5B / 1W3, EJB-5B / 2010, EJB-5B / 2015, EJB-5B / 2W0, EJB- 5B / 3020, EJB-6, EJB-6/1510, EJB-6/2010, EJB-6/2015, EJB-6/3020, EJB-6B, EJB-6B / 0707, EJB-6B / 1510, EJB-6B / 2015, EJB-6B / 3020, EJB-7, EJB-7/2010, EJB-7B, EJB-7B / 0505, EJB-7B / 1010, EJBE- 4B, EJBE-5, EJBE-5B, EJBE-6, EJBE-6B
| Ambiant temperature | -20°C to +60°C |
|---|---|
| Temperature class | T5 |
| Warranty | 2¨ |
| Feed | 24V DC |
| Waterproofing protection (IP) | Ip66.ip67 |
| Application / usage | ATEX zone |
| ATEX zone | Zone 1/2 |
| Gas class | IIB |
| ATEX protection mode | Ex d (explosion) |
| Certificates | Atex.iecex |
| Frequency (Hz) | 50 / 60hz |
| Material | Aluminum |
| Certificat_atex-en_us | CESI 02 ATEX 073X |
| Certificat_iecex-en_us | These 16.0014x |
| Body colors | GRAY RAL 7035 |
| Cable entry (s) | 1xm20 |
| Ex e (increased security) | 1 |
| -20 ° C to 40 ° C | 1 |
